Description

Product Description

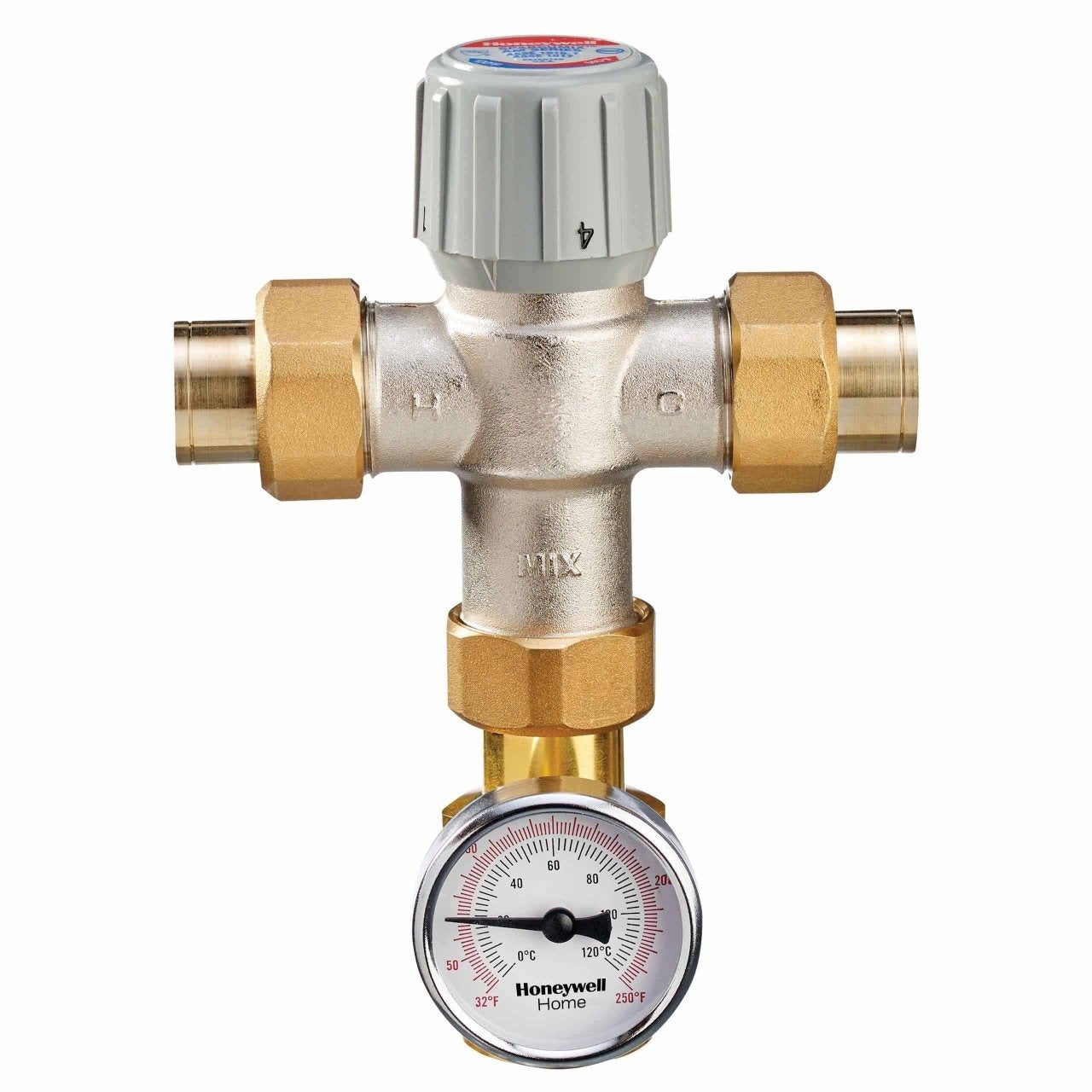

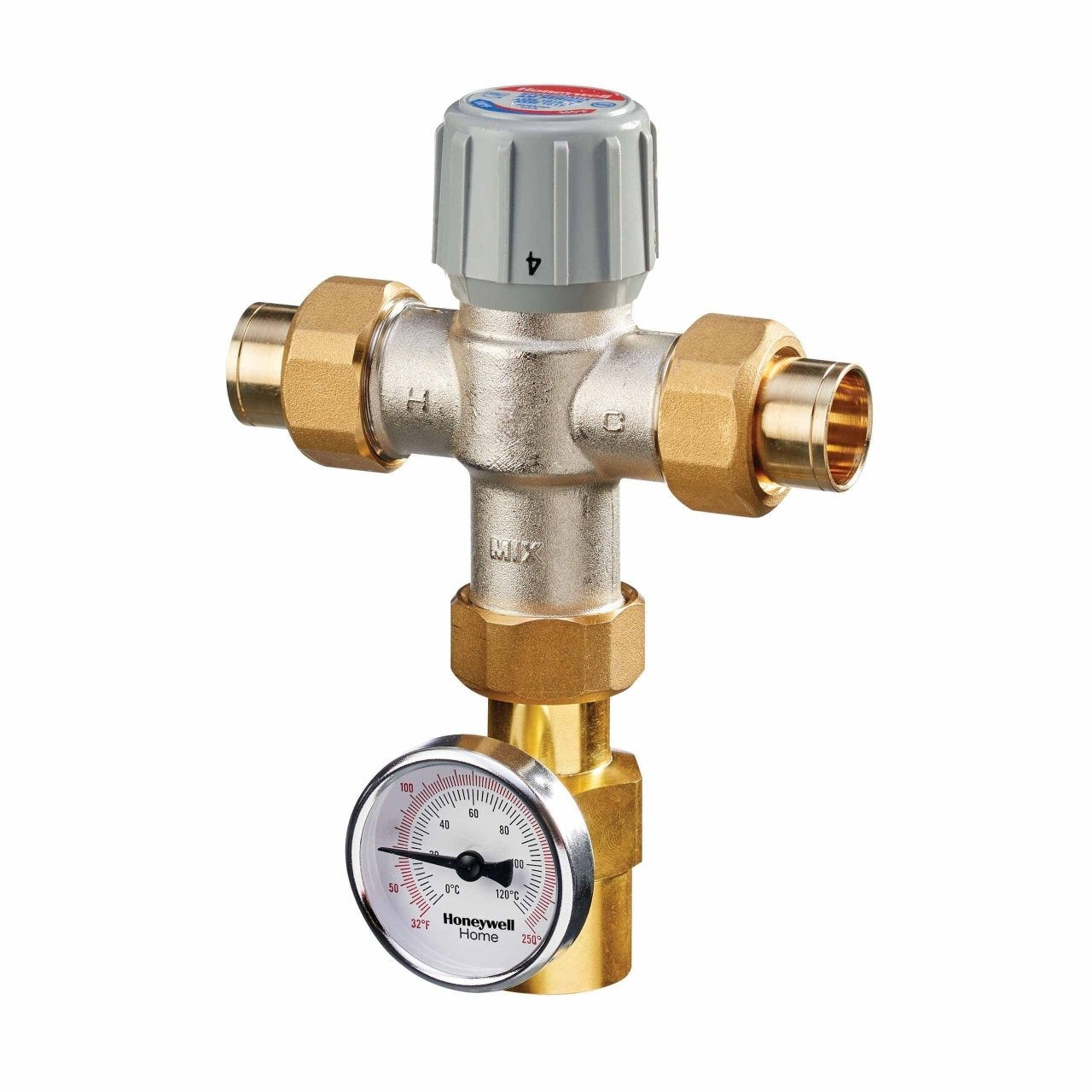

Honeywell AM102C-USTG-1LF/U is a 1-inch union sweat, lead-free thermostatic mixing valve with a temperature gauge that adjusts, maintains, and limits hot water temperature to a user-selected setting to provide anti-scald and anti-chill protection. It provides proportional control of hot and cold supplies, reduces flow quickly if cold supply is interrupted, and features a Teflon-coated, nickel-plated brass body to resist mineral build-up.

  • Thermostatic mixing valve with temperature gauge; maintains set outlet temperature and limits extremes
  • Teflon-coated, nickel-plated brass valve body with EPDM seals and two check valves on hot and cold inlets
  • Performance: 3.9 Cv, minimum flow 0.50 gpm, operating mixing temp 70 to 120 F, max operating pressure 150 psi

Product Highlights

Lead-free 1 in union sweat thermostatic mixing valve with gauge, ASSE 1017 certified, Teflon-coated brass body.

Product Information

Standard Information

  • Brand: HONEYWELL
  • Manufacturer Part Number: AM102C-USTG-1LF/U
Technical Specifications
Brand
Honeywell
Manufacturer Part Number
AM102C-USTG-1LF/U
Product Name
1 in Union Sweat with Temp Gauge Mixing Valve
Connection Type
Union Sweat with Temp Gauge
Connection Size
1 in
Valve Type
Thermostatic mixing valve
Valve Body Material
Nickel-plated brass
Coating
Teflon-coated
Seal Material
EPDM Rubber
Flow Coefficient (Cv)
3.9 Cv
Minimum Flow Rate
0.50 gpm (1.9 lpm)
Nominal Diameter
DN25
Operating Mixing Temperature Range
70 F (21 C) to 120 F (49 C)
Media Temperature (Max)
212 F (100 C)
Hot Inlet Temperature Range
120 F (49 C) to 180 F (82 C)
Cold Inlet Temperature Range
39 F (4 C) to 80 F (27 C)
Operating Pressure (Max)
150 psi (1034 kPa)
Number of Connections
3
Number of Check Valves
2
Includes
Check valves on hot and cold inlets
Adjustment Means
Handwheel
Re-circulation
No
Approvals and Standards
ASSE 1017 Certified, CSA Listed, IAPMO Listed
Lead Free
Yes
Valve Body Pattern
Straight Through
Product Height
7.4 in (188 mm)
Product Length
6.5 in (165 mm)
Accessories
AM102-SB/U, AM-1-020RP/U, AM1-TG102-US-LF/U
