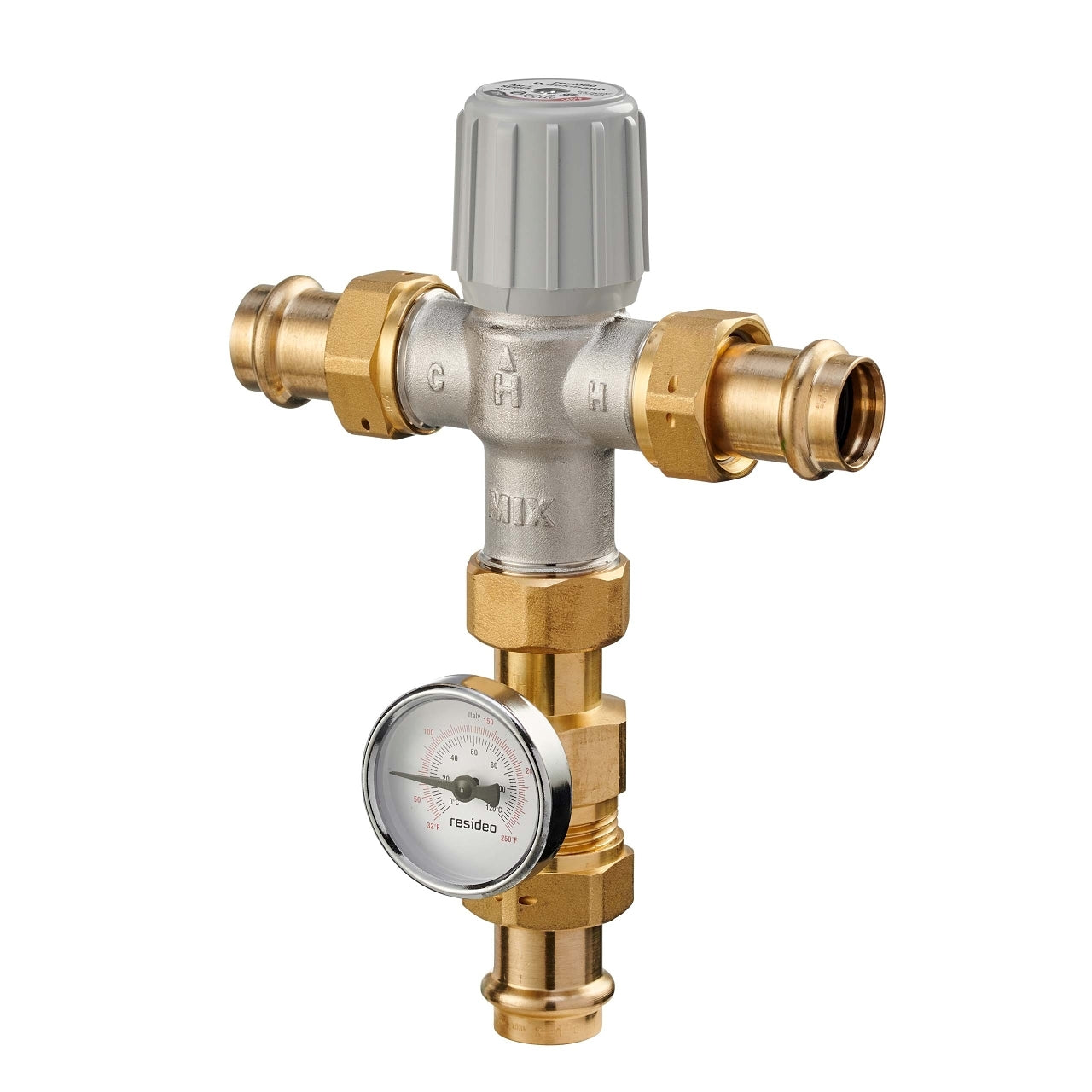

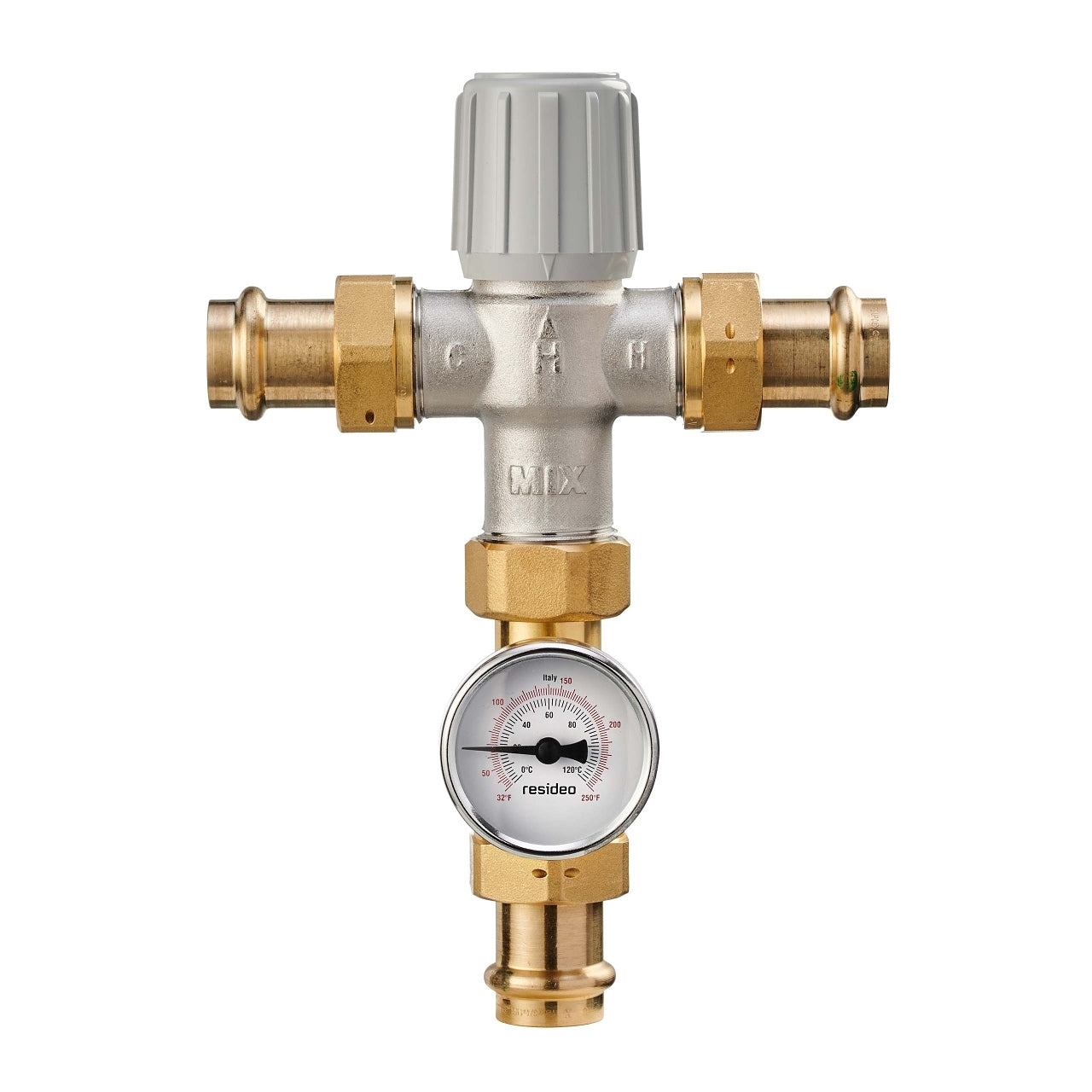

HONEYWELL AM102-UPTG-1LF Mixing Valve with Temperature Gauge

Product Description

The Honeywell AM102-UPTG-1LF is a mixing valve that adjusts and maintains the hot water temperature to a preset level. It features check valves on both the hot and cold inlets and is equipped with a temperature gauge for accurate readings.

• Maintains consistent water temperature despite changes in conditions.
• Constructed with Teflon-coated, nickel-plated, low-lead brass.
• Suitable for use with both potable and non-potable water.

Product Highlights

This valve ensures reliable temperature control, essential for plumbing and HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: AM102-UPTG-1LF

Technical Specifications

• Controlled Media: Potable Water, Non Potable Water
• Approvals and Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed, NSF/ANSI Listed
• Product Height: 7.4 inches
• Product Width: 6.5 inches
• Flow Rate (Min): 0.50 gpm
• Flow Rate (Max): 10 gpm
• Hot Inlet Temperature (Min): 120 °F
• Hot Inlet Temperature (Max): 180 °F
• Operating Pressure (Max): 150 psi
• Valve Body Material: Teflon-Coated, Nickel-Plated Low Lead Brass
• Connection Size: 1 inch
