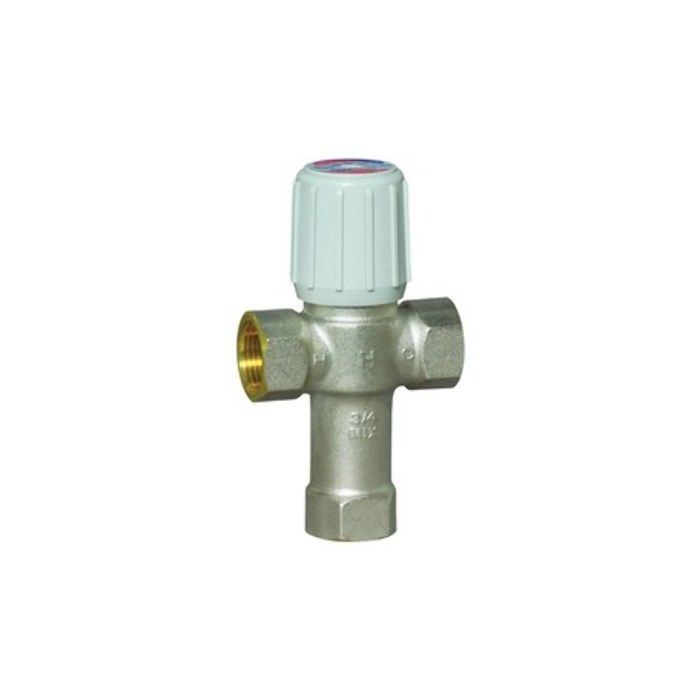

Honeywell AM101C-1LF/U Thermostatic Mixing Valve 3/4 in.

Product Description

The Honeywell AM101C-1LF/U is a thermostatic mixing valve designed to regulate hot and cold water systems. This model is ideal for applications requiring precise temperature control and reliable performance.

• Dual purpose mixing or diverting valve
• Maximum temperature rating of 212 F (100 C)
• Built for easy maintenance and element replacement

Product Highlights

The AM101C-1LF/U maintains constant water temperature under varied operating conditions and performs reliably at minimum flow rates of 0.5 gallons per minute. The valve is a proportional valve offering simultaneous control of both hot and cold water.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: AM101C-1LF/U

Technical Specifications

• Service: Hot and Cold Water
• Close-Off Pressure: 150 psi
• Operating Temperature Ratings: 70 F to 120 F
• Performance: Reliable at a minimum flow of 0.5 gpm
• Max. Temperature: 212 F (100 C)
• Max. Pressure: 150 psi
• Design: Straight through, with hot and cold at the same level
• Compliance: ASSE, CSA, and IAPMO listed
