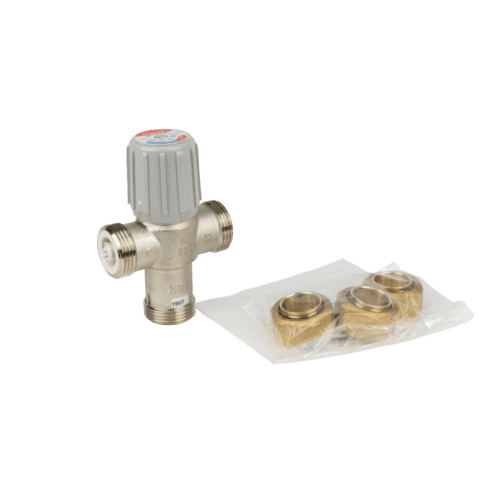

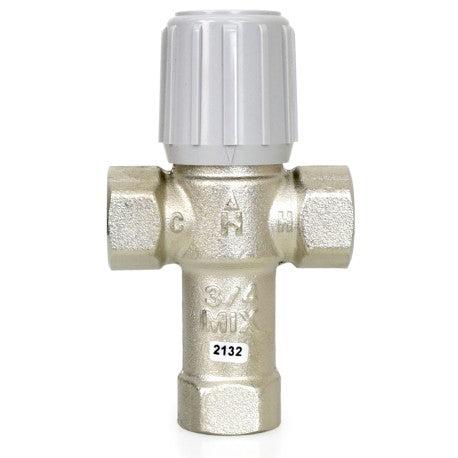

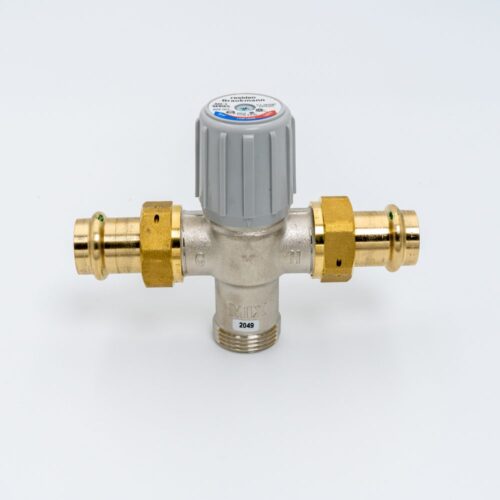

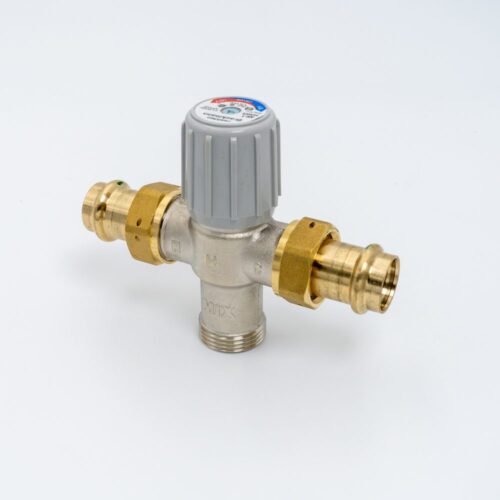

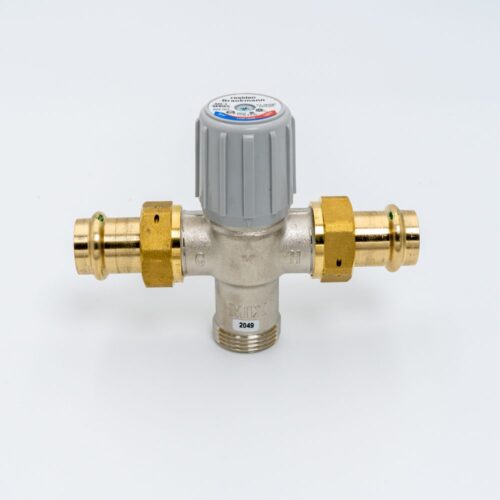

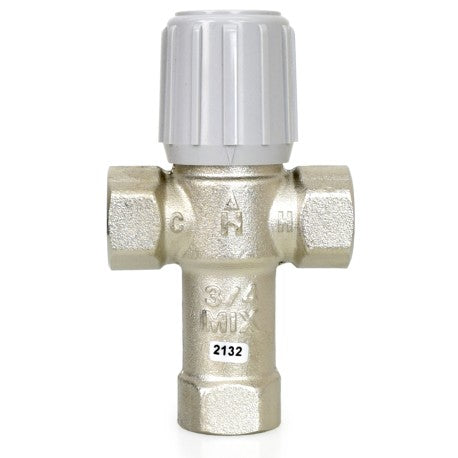

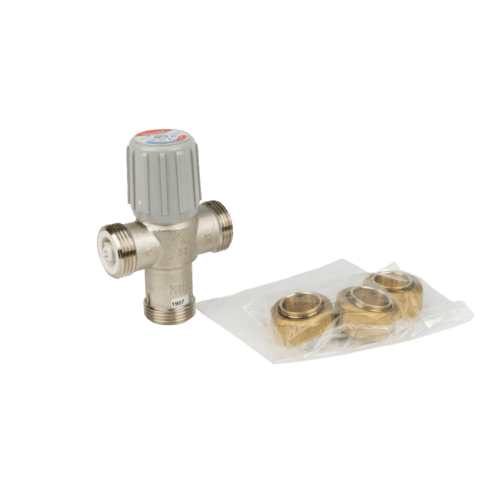

Honeywell AM101-UPTG-1LF Mixing Valve

Product Description

The Honeywell AM101-UPTG-1LF is a mixing valve designed to control hot water temperature. It adjusts, maintains, and limits water temperature effectively to ensure safety and comfort. This valve can mix or divert water as needed and guarantees a consistent temperature even when supply conditions change.

• Maintains constant water temperature.
• Features a Teflon-coated valve body.
• Offers flow reduction if cold water supply is interrupted.

Product Highlights

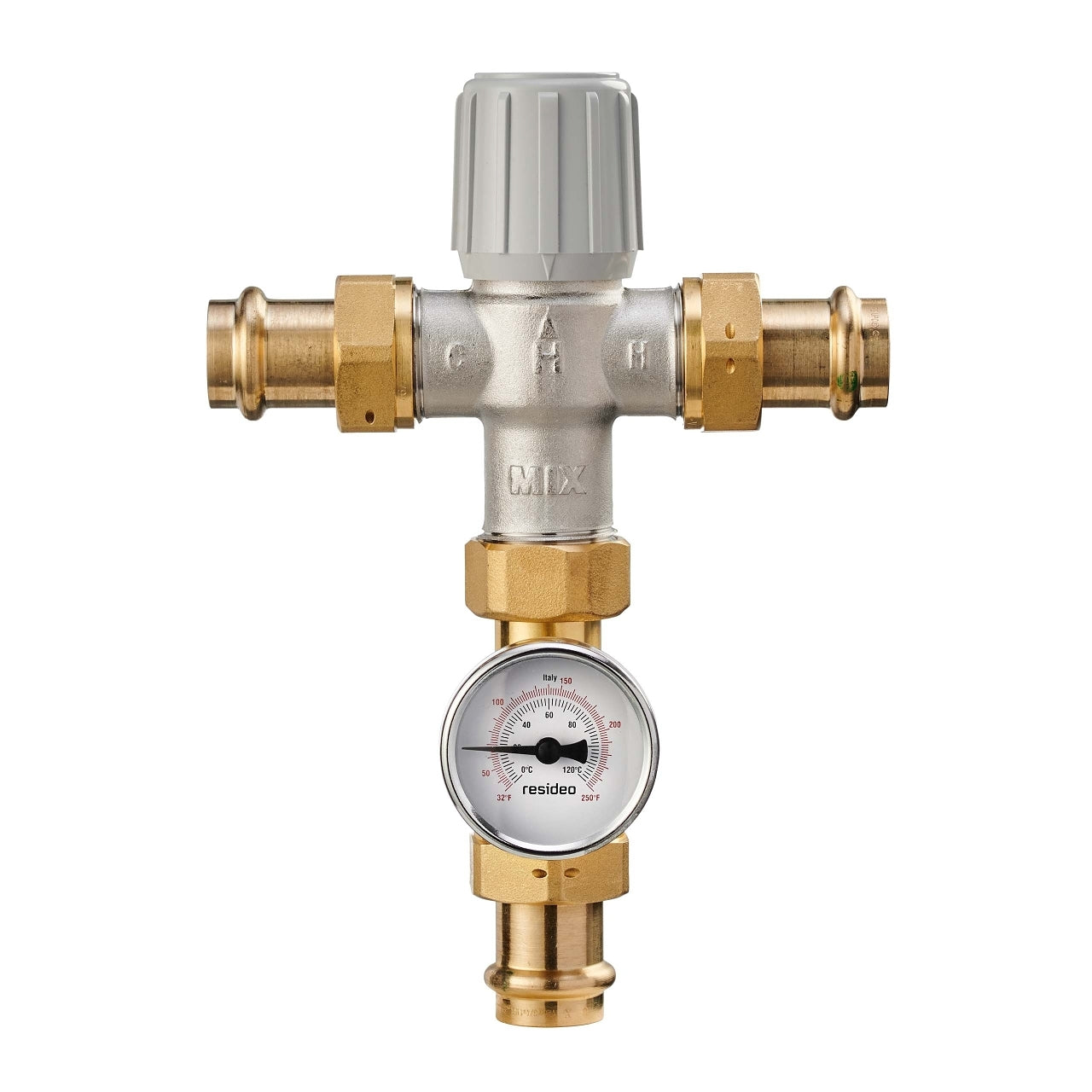

This valve includes a temperature gauge adapter for easy monitoring. It is built for durability and simplifies maintenance through its Teflon-coated finish that prevents mineral accumulation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: AM101-UPTG-1LF

Technical Specifications

• Valve Type: Mixing Valve
• Connection Type: Union Sweat
• Pipe Size: Three-Quarter Inch (DN20)
• Flow Coefficient: 3.9 Cv
• Operating Temperature: Seventy Degrees Fahrenheit (21 Degrees Celsius) Min, One Hundred Forty-Five Degrees Fahrenheit (63 Degrees Celsius) Max
• Hot Inlet Temperature: One Hundred Twenty Degrees Fahrenheit (49 Degrees Celsius) Min, One Hundred Eighty Degrees Fahrenheit (82 Degrees Celsius) Max
• Cold Inlet Temperature: Thirty-Nine Degrees Fahrenheit (4 Degrees Celsius) Min, Eighty Degrees Fahrenheit (27 Degrees Celsius) Max
• Media Temperature: Two Hundred Twelve Degrees Fahrenheit (100 Degrees Celsius) Max
• Lead Free: Yes
• Approvals: ASSE 1017
