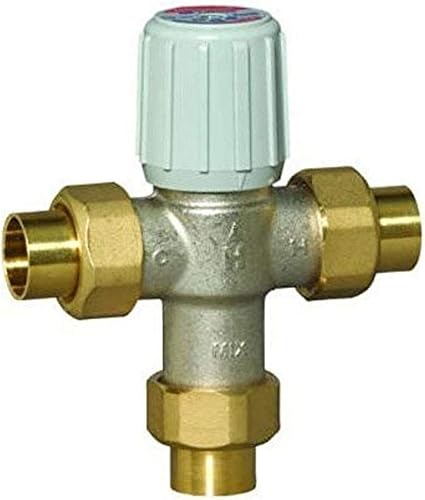

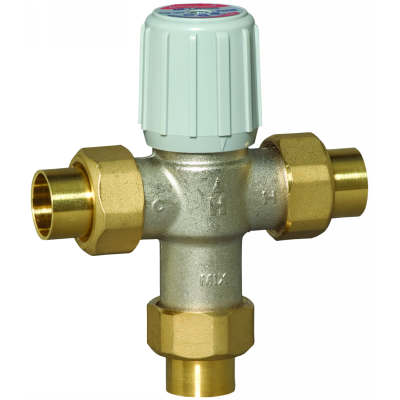

HONEYWELL AM101-1LF/U AM-1 Series Thermostatic Mixing Valve 3/4 in NPT

Product Description

The Honeywell AM101-1LF/U AM-1 Series thermostatic mixing valve is designed to adjust, maintain, and limit hot water temperature. It is essential for providing anti-scald and anti-chill protection while maximizing safe, usable hot water. This valve keeps a constant water temperature even with fluctuating conditions and simplifies maintenance.

• Offers dual purpose as mixing or diverting valve
• Maintains a constant water temperature under varying operating conditions
• Immediate flow reduction if cold water supply is interrupted

Product Highlights

The Honeywell thermostatic mixing valve is reliable and easy to maintain, ensuring stable water temperature control for various applications.

Product Information

Standard Information

• Series: AM-1 Series
• Connection Type: NPT

Technical Specifications

• Nominal Size: 3/4 inches
• Flow Rate: 0.5 to 12 gpm
• Flow Coefficient (Cv): 3.8 Cv
• Material: Brass
• Lead-Free/Contains Lead: Yes
• Pressure Rating: 150 lbf/sq-in
• Temperature Rating: 70 to 145 deg F
• Inlet Connection Size: 0.75 inches
• Outlet Connection Size: 0.75 inches
• Specification Met: NSF, RoHS
• Item Package Quantity: 1
• Measurement System: inch
• Hot Inlet Temperature: 120 deg F (49 deg C) Min, 180 deg F (82 deg C) Max
• Media Temperature: 212 deg F (100 deg C) Max
• Cold Inlet Temperature: 39 deg F (4 deg C) Min, 80 deg F (27 deg C) Max
• Valve Type: Mixing Valve
• Valve Body Material: Teflon-coated
• Lead Free: Yes
