HONEYWELL AM100R-UP-1/U Mixing Valve

Product Description

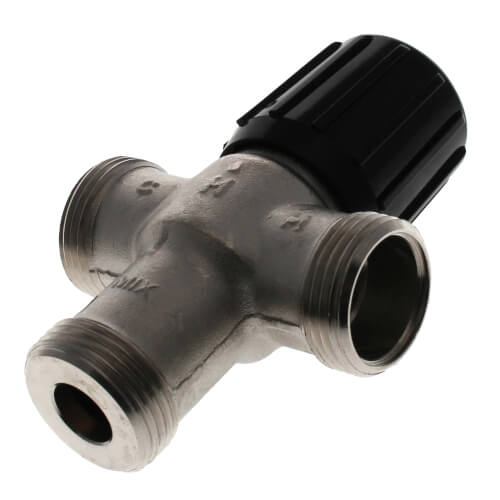

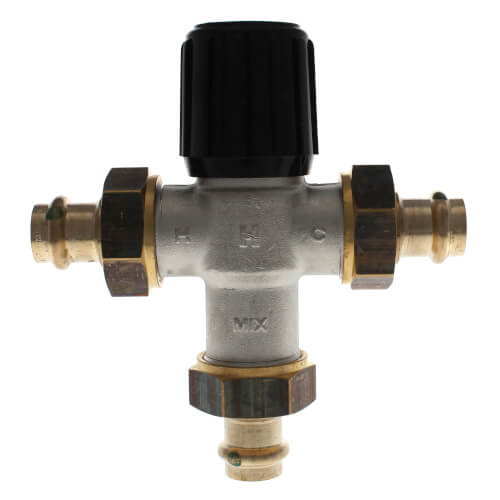

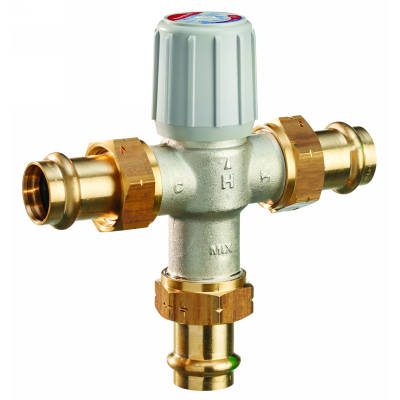

The Honeywell AM100R-UP-1/U is a thermostatic mixing valve, specifically designed for heating applications. This valve adjusts, maintains, and limits hot water temperature effectively. It ensures a constant water temperature to meet changing demands. The straight-through design features hot and cold inlets positioned at the same level.

• Constructed with nickel-plated brass and EPDM O-rings.

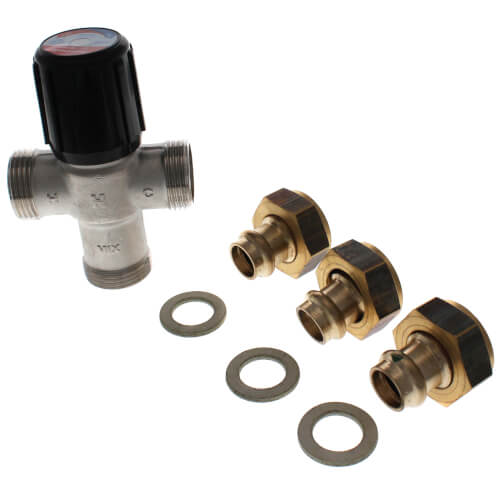

• Features a union ProPress connection type.
• Not intended for potable water, suited for radiant floor heating and solar hot water systems.

Product Highlights

Reliable and efficient hot water temperature management for various heating applications.

Product Information

Standard Information

• Application: Domestic water, nursing homes, public facilities, radiant floor heating.
• Max Pressure: 150 PSI.

Technical Specifications

• Connection Type: Union ProPress.
• Operating Temperature Range (F): 70 to 180.
• Flow Capacity (Cv): 3.9.
• Pipe Size (inch): 1/2.
• Valve Type: Mixing valves.
• Body Pattern: 3-Way.
• Standards Met: ASSE 1017.
