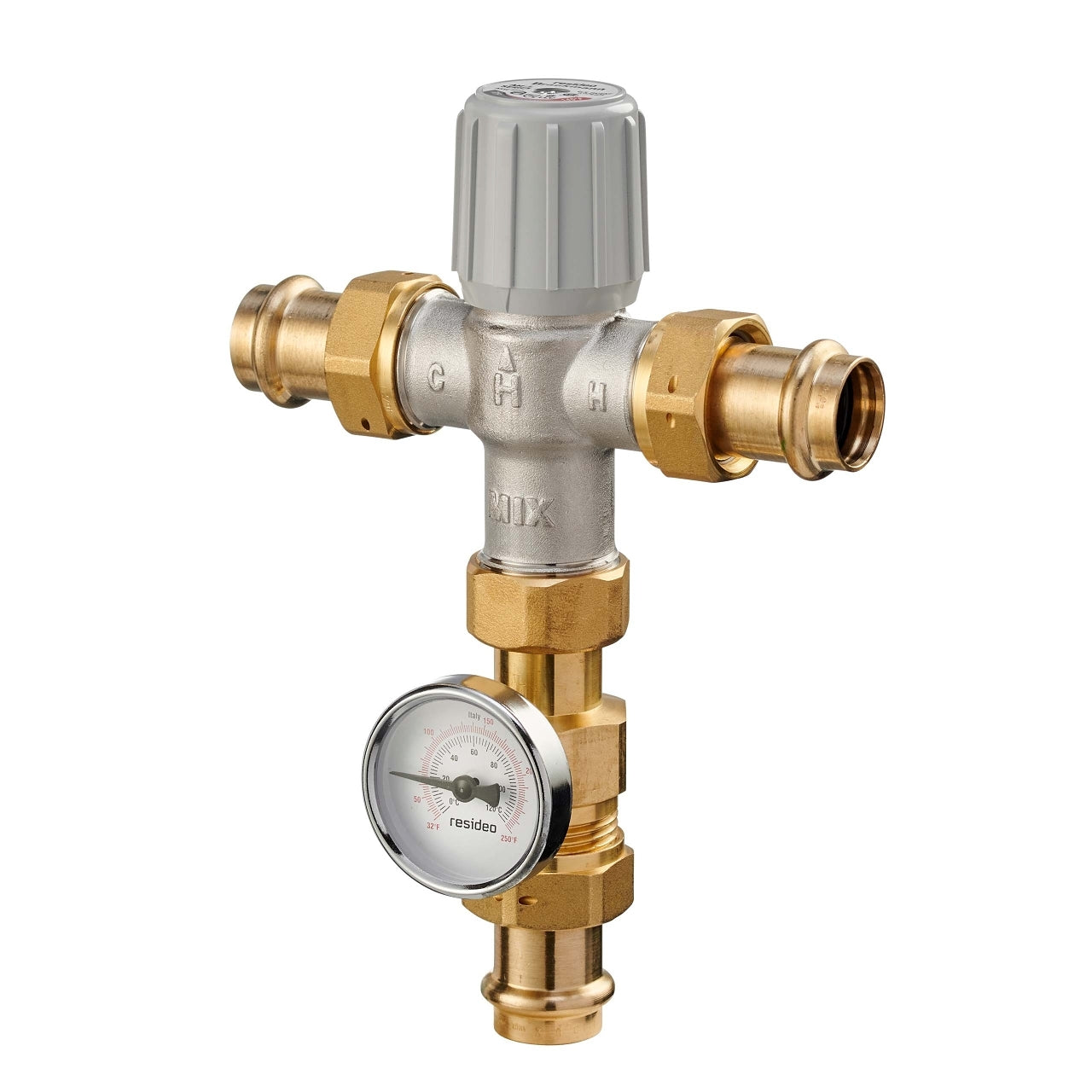

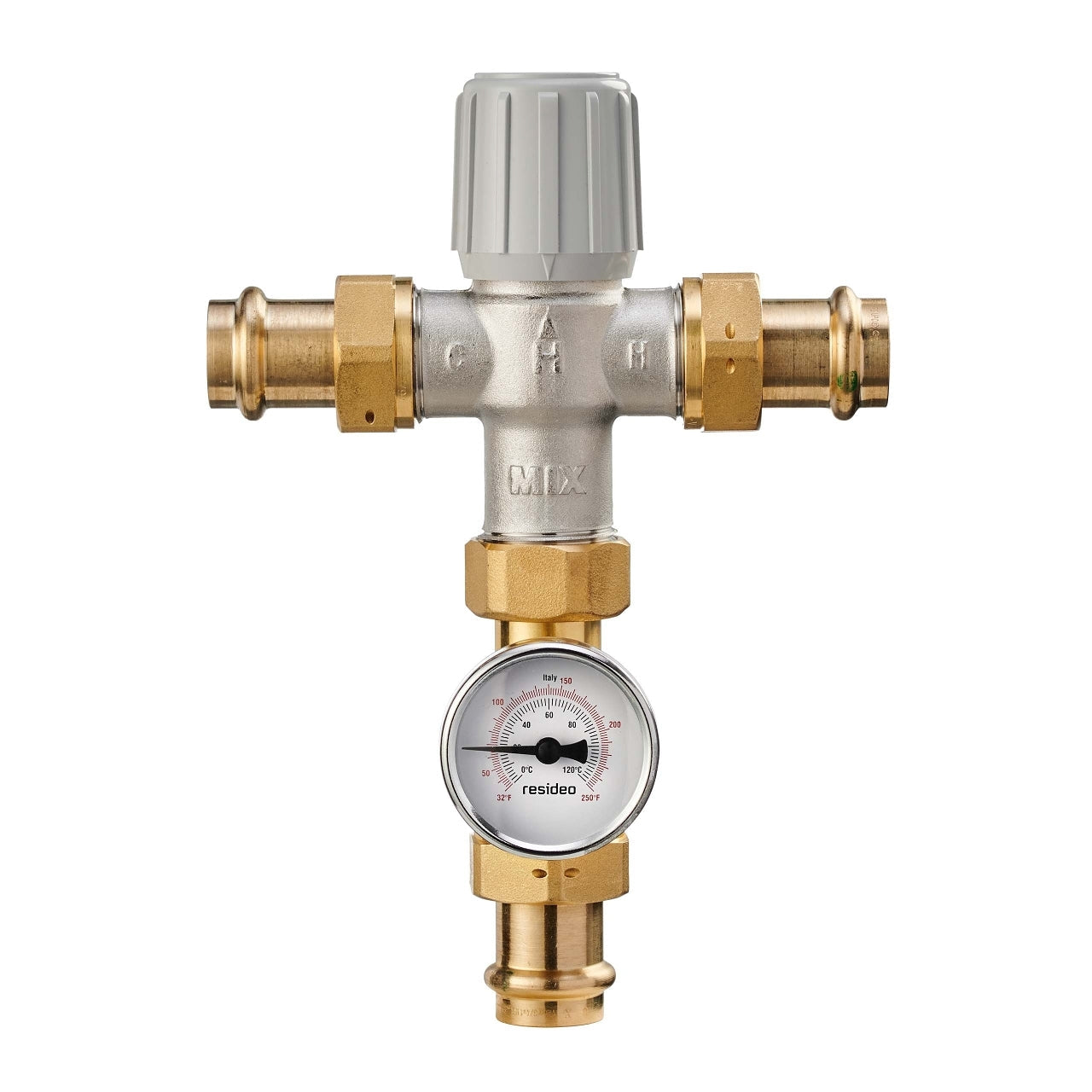

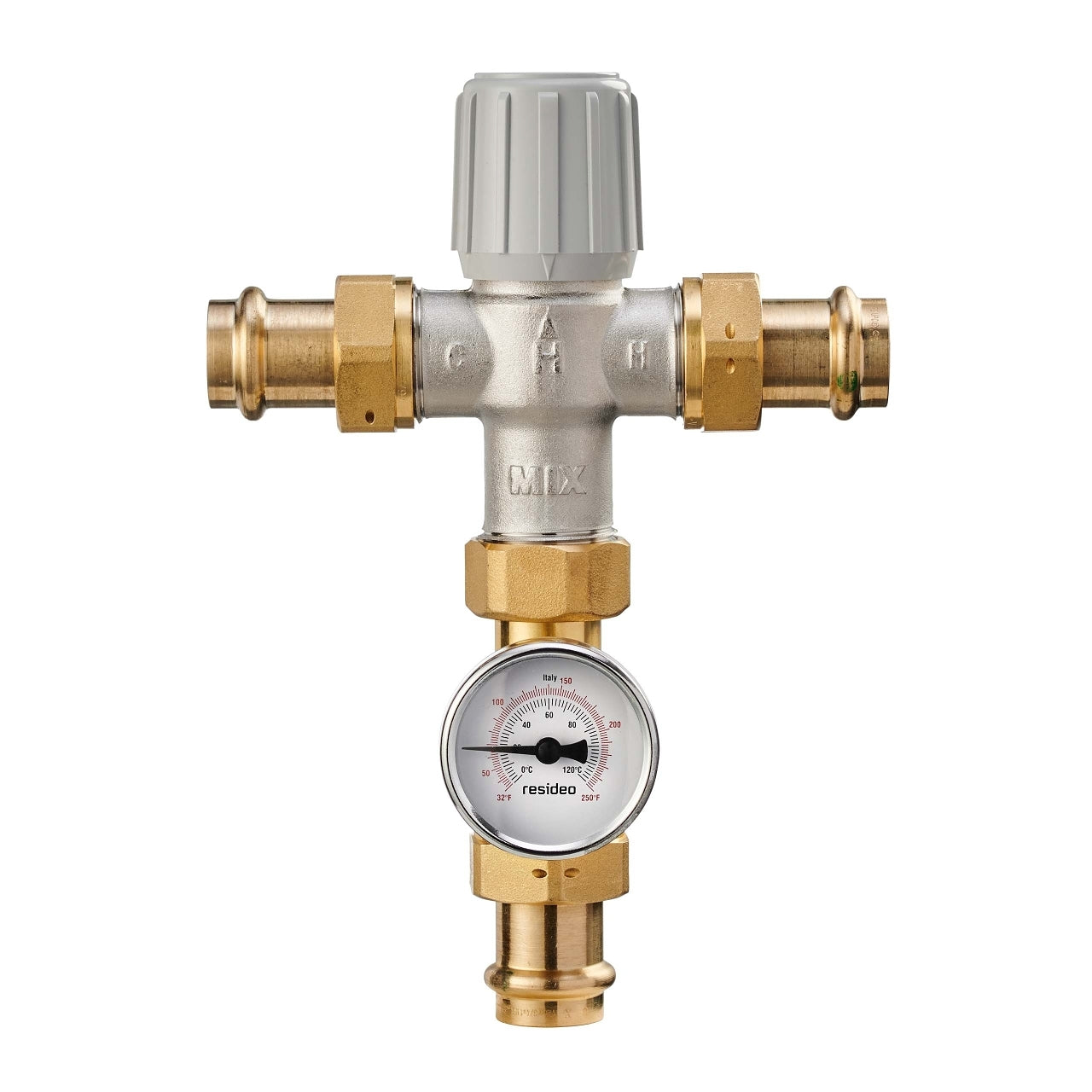

HONEYWELL AM100-UPTG-1LF Mixing Valve with Temperature Gauge

Product Description

The Honeywell AM100-UPTG-1LF mixing valve is designed to manage hot water temperature. It adjusts, maintains, and limits temperature to safe levels based on user settings.

• Includes check valves on hot and cold inlets.
• Comes with a built-in temperature gauge.
• Suitable for both potable and non-potable water.

Product Highlights

This valve helps ensure safety by maintaining optimal temperatures in various water systems. It's made with durable materials for long-term use.

Product Information

Standard Information

• Brand: Honeywell
• MPN: AM100-UPTG-1LF

Technical Specifications

• Controlled Media: Potable Water, Non-Potable Water
• Approval Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed, NSF/ANSI Listed
• Product Height: 7.1 inches
• Product Width: 4.6 inches
• Adjustment Means: Handwheel
• Flow Rate (Min): 0.50 gpm
• Flow Rate (Max): 10 gpm
• Operating Pressure (Max): 150 psi
• Connection Size: 1/2 inches
• Body Material: Teflon-Coated, Nickel-Plated Low Lead Brass
• Seal Material: EPDM Rubber
