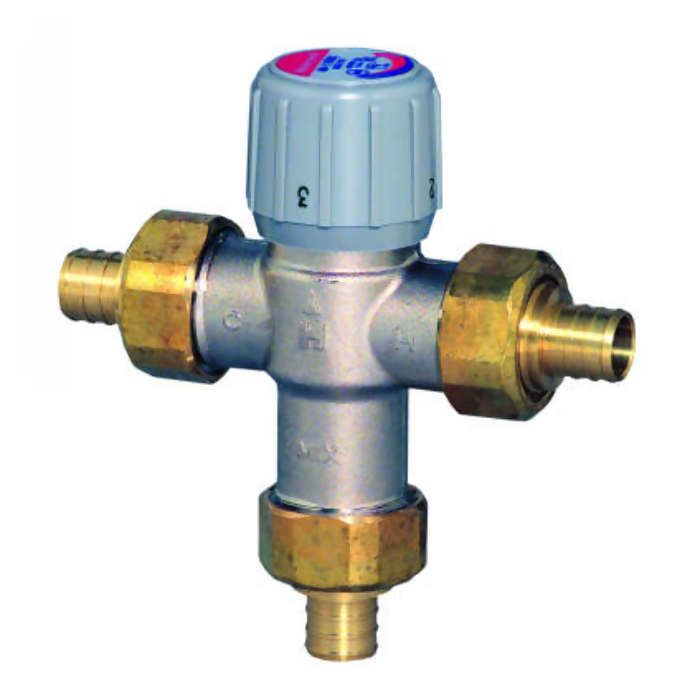

Honeywell AM100-UPEX-1LF/U thermostatic mixing valve 1/2 in. union PEX

Product Description

The HONEYWELL AM100-UPEX-1LF/U Thermostatic Mixing Valve is a 1/2 inch Union PEX valve designed for hot and cold water service. It features a Teflon-coated, nickel-plated low lead brass body, ensuring durability and preventing mineral build-up. This adjustable valve maintains and limits hot water temperature settings, providing anti-scald and anti-chill protection while increasing safe, usable hot water. It operates reliably at a minimum flow of 0.5 gpm and a maximum pressure of 150 psi.

• Dual purpose mixing or diverting valve for versatile applications.
• Maintains constant water temperature and limits temperature at any point, with flow reduction if cold water supply is interrupted.
• Features a tamper-resistant design, nickel-plated low lead brass construction, and Teflon coating for durability and easy maintenance.

Product Highlights

This thermostatic mixing valve provides anti-scald and anti-chill protection, ensuring safe and consistent hot water delivery in residential and commercial plumbing systems.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: AM100-UPEX-1LF/U

Technical Specifications

• Service: Hot and Cold Water
• Pressure Rating: 150 psi
• Operating Temperature: 70 F To 145 F
• Series: AM-1
• Nominal Size: 1/2 in
• End Style: Union PEX
• Flow Capacity: 0.5 gpm
• Media: Water
• Inlet to Outlet Length: 5.1 in
• Body Material: Brass
• O-Ring Material: EPDM
• Finish: Nickel Plated
• Type: Adjustable
