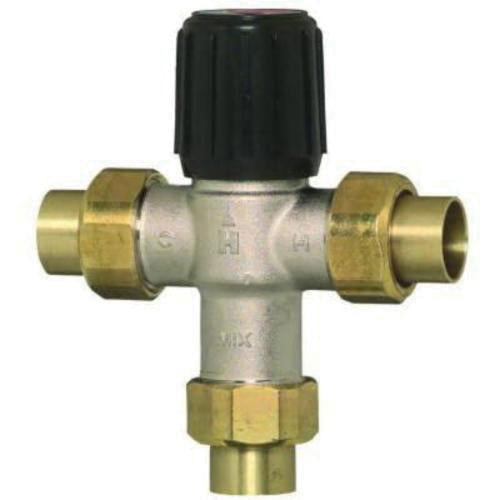

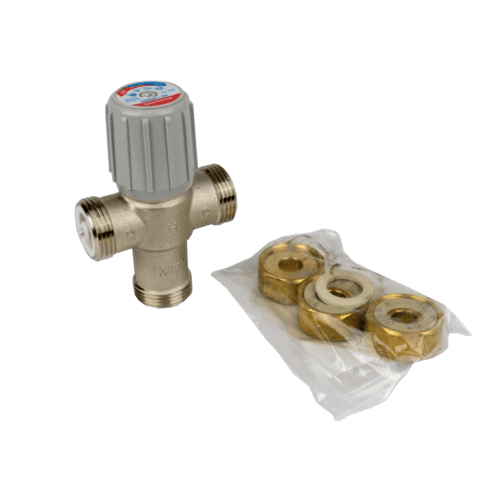

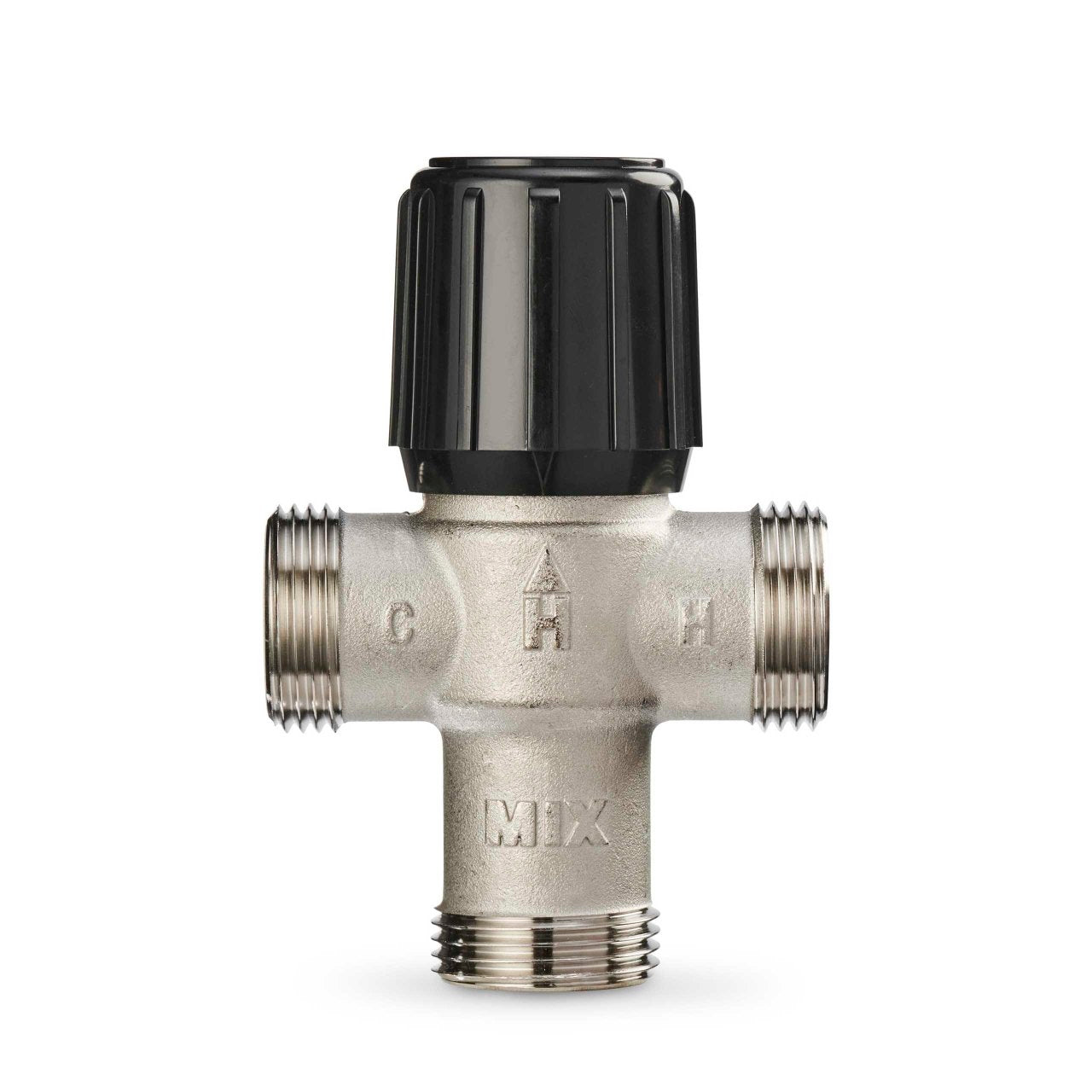

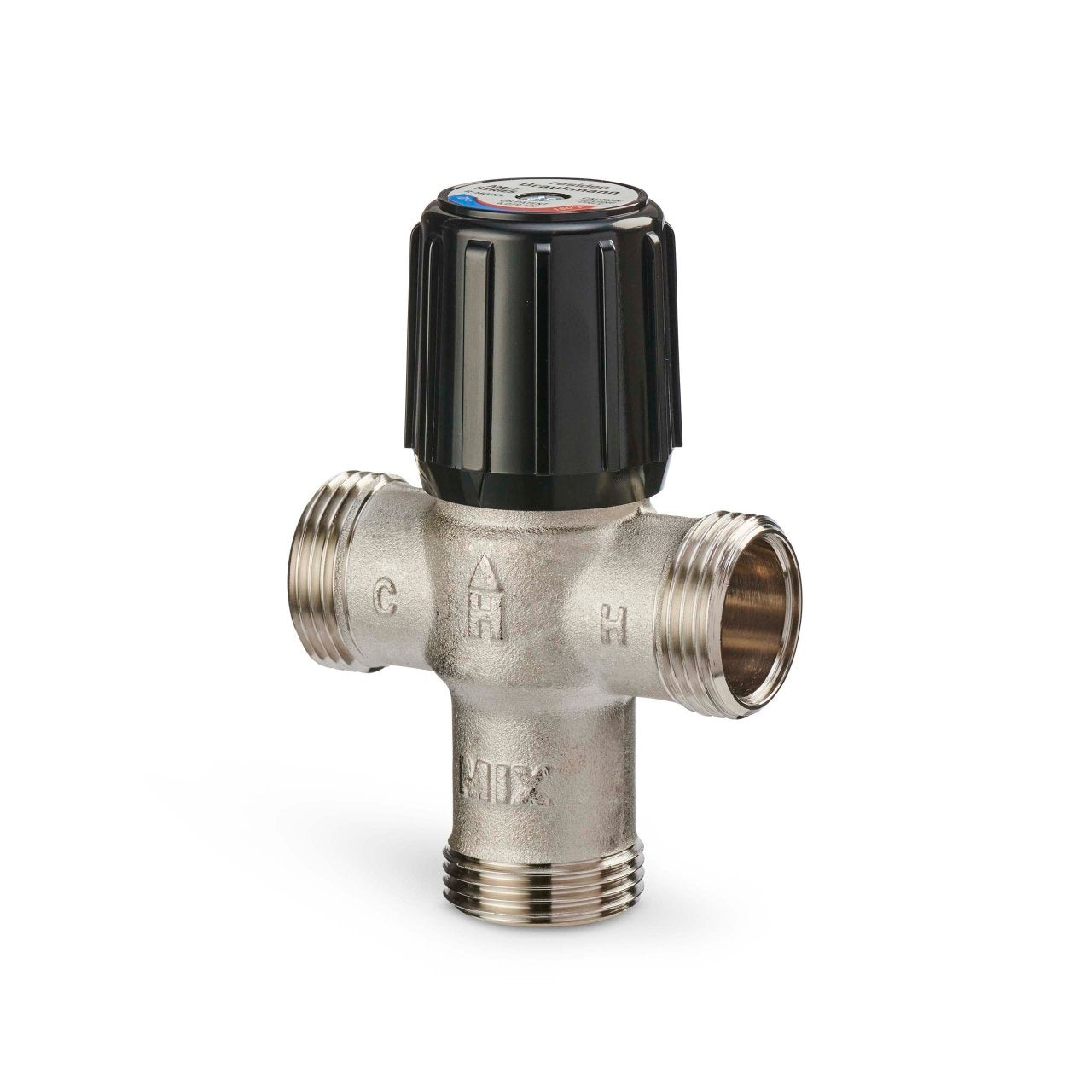

Honeywell AM1-RBODY-1/U AM-1 Series Thermostatic Mixing Valve Body

Product Description

The Honeywell AM1-RBODY-1/U is a thermostatic mixing valve body essential for adjusting and maintaining hot water temperatures. This valve body is used in heating applications, including radiant and boiler systems. It features a Teflon-coated material that helps prevent mineral build-up. The valve supports fittings sizes of one-half inch, three-quarters inch, and one inch.

• Compatible with non-potable water.
• Incorporates a three-way valve body pattern.
• Flow coefficient rated at 3.9 Cv.

Product Highlights

This unit is designed for efficient temperature control in various heating systems and provides durability through its well-engineered materials.

Product Information

Standard Information

• Controlled Media: Non Potable Water
• Re-Circulation: No

Technical Specifications

• Approvals and Standards: CSA Certified
• Warranty: 1 Year
• Ambient Operating Temperature (Min): 70 °F, 21 °C
• Ambient Operating Temperature (Max): 120 °F, 49 °C
• Cold Inlet Temperature (Min): 39 °F, 4 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Flow Rate (Min): 0.5 gpm, 1.9 lpm
• Hot Inlet Temperature (Max): 212 °F, 100 °C
• Mixing Temperature (Max): 180 °F, 82 °C
• Operating Pressure (Max): 150 psi, 1034 kPa
• Valve Body Material: Teflon-coated
• Valve Packing Material: EPDM O-rings
• Connection Type: Male NPT
• Valve Type: Mixing Valve
• Lead Free: Yes
