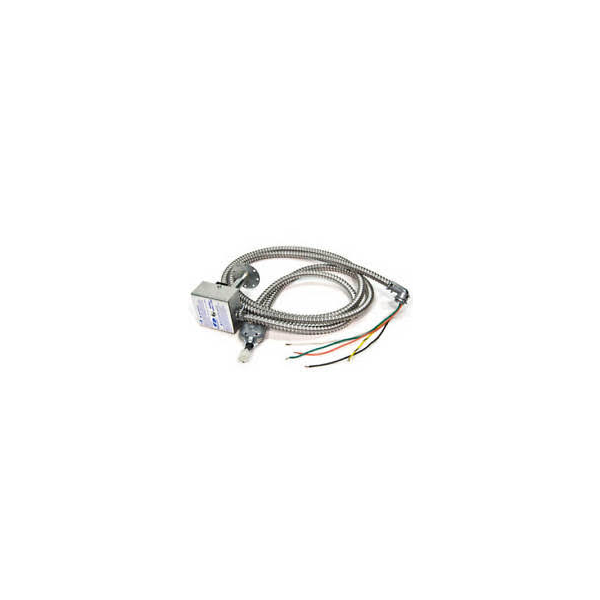

Honeywell ada-1 Automatic Damper Adapter Harness

Product Description

The HONEYWELL ada-1 is an automatic damper adapter cable harness designed for plug-and-play integration with automatic damper systems. This wiring accessory simplifies the electrical connection between a damper actuator and the control circuit, eliminating the need for field-fabricated wiring. Licensed HVAC technicians and controls specialists install this harness during zone control commissioning or damper replacement service. The plug-and-play design reduces wiring errors and speeds up installation in both new construction and retrofit applications.

This adapter cable harness is suited for use in residential and light commercial HVAC zoning applications where automatic dampers are installed in ductwork to regulate airflow by zone. It serves as an interface component in systems that use motorized damper assemblies controlled by a zone panel or thermostat-driven controller. The harness connects the damper actuator to the control wiring in a direct, tool-minimal process appropriate for standard zone control installations.

Key Features

• Plug-and-play design eliminates field-fabricated wiring connections
• Simplifies actuator-to-control-circuit integration in automatic damper systems
• Reduces installation time during zone control commissioning and damper replacement
• Adapter format supports clean, reliable electrical connections in duct environments

Compatibility

Designed as an OEM-style adapter harness for use with automatic damper actuator assemblies in residential and light commercial HVAC zone control systems.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage control wiring and zone damper systems. Power down the zone control panel and disconnect the thermostat circuit before connecting or disconnecting the harness. Verify that the connector orientation matches the actuator and control board ports before applying power. Follow all applicable local mechanical and electrical codes during installation.

Technical Specifications

• Connection Type: Plug-and-play adapter harness
• Application: Automatic damper actuator wiring interface

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ada-1
