Honeywell 59021DH Brass 4-way Hose Shutoff Manifold

Product Description

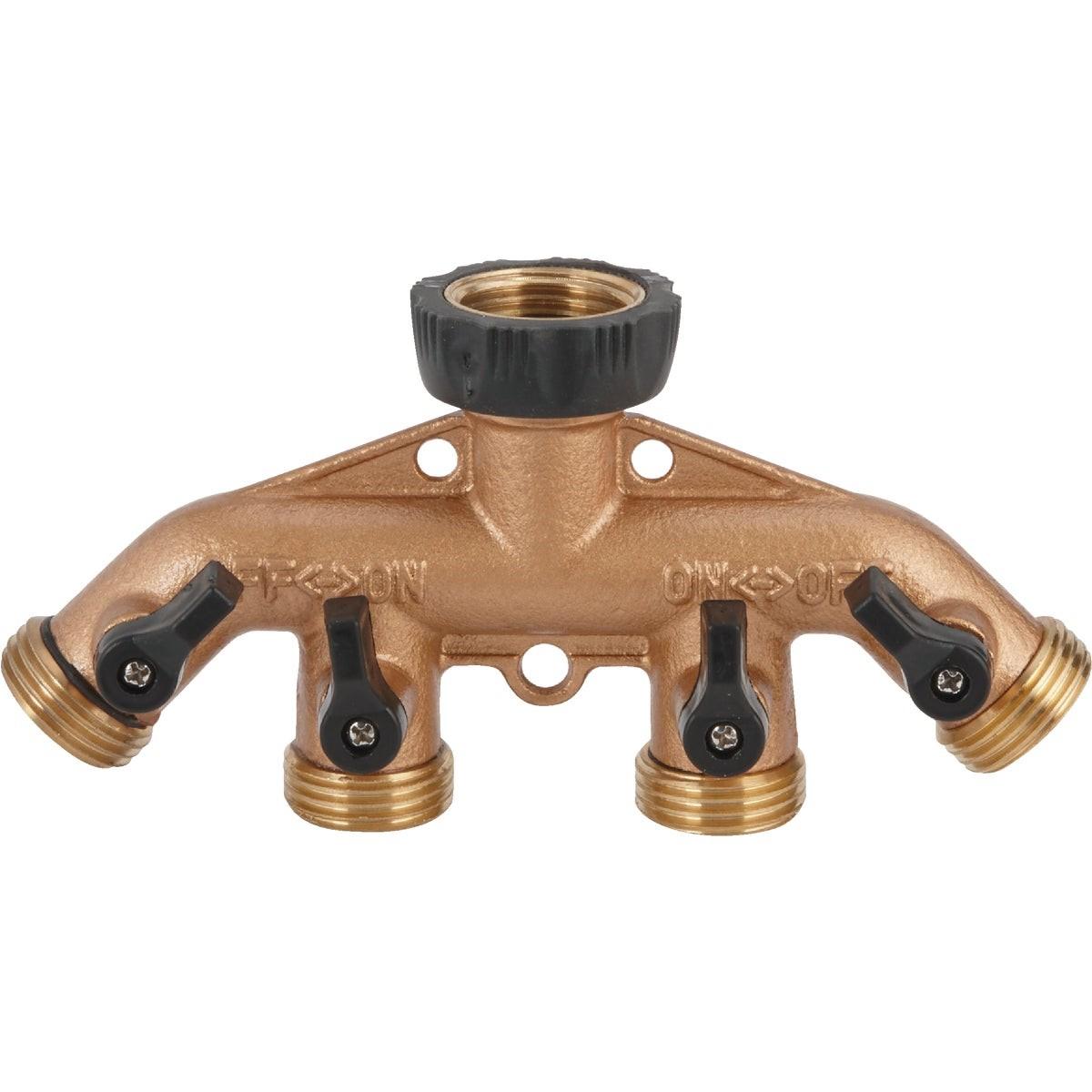

The HONEYWELL 59021DH is a brass 4-way hose shutoff manifold designed to connect up to four hoses to a single faucet outlet. Built for outdoor water distribution in irrigation, landscaping, and general site water management, this manifold features individually rotating control valves that allow each hose line to be opened or closed independently. The all-brass construction provides corrosion resistance and durability in continuous outdoor use. A swivel hose connection on the inlet simplifies attachment to the source faucet without twisting the supply hose. The unit weighs 1.32 pounds and is sold individually.

This manifold is suited for residential and light commercial applications where multiple hose lines need to run from a single spigot or hose bib. Common install scenarios include irrigation zone splitting, garden watering setups, pressure washing staging areas, and temporary water distribution at job sites. The hose-to-hose design also allows inline use between two hose sections when only a subset of ports are needed.

Key Features

• Four independently controlled shutoff ports allow simultaneous or selective flow to up to four hose lines
• Rotating control valves provide simple on/off operation at each port
• Swivel inlet connection prevents hose twisting during installation and use
• All-brass body construction for corrosion resistance and long service life in outdoor environments
• Hose-to-hose compatible for inline as well as faucet-mount use

Compatibility

Designed for standard garden hose thread connections, compatible with typical residential and commercial hose bibs, spigots, and hose-end fittings using standard hose thread sizing.

Installation Notes

Installation is performed by threading the swivel inlet onto a standard hose bib or faucet by hand, then applying thread seal tape to the male threads before final tightening with pliers if needed. Shut off the water supply at the source before attaching or removing the manifold. Do not overtighten hose connections, as brass threads can be damaged by excessive force. Verify all port valves are in the closed position before turning the water supply back on to prevent uncontrolled discharge.

Technical Specifications

• Material: Brass
• Number of Ports: 4
• Weight: 1.32 pounds
• UPC: 00009326721620
• Sold As: Each

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: 59021DH
