HONEYWELL 501237 Eclipse 501237 Automatic Reduced Port Butterfly Valve

Product Description

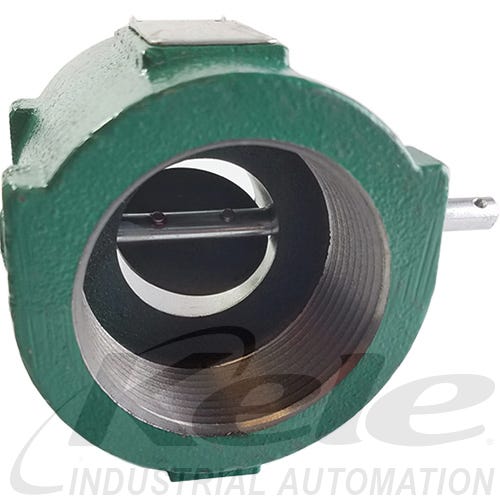

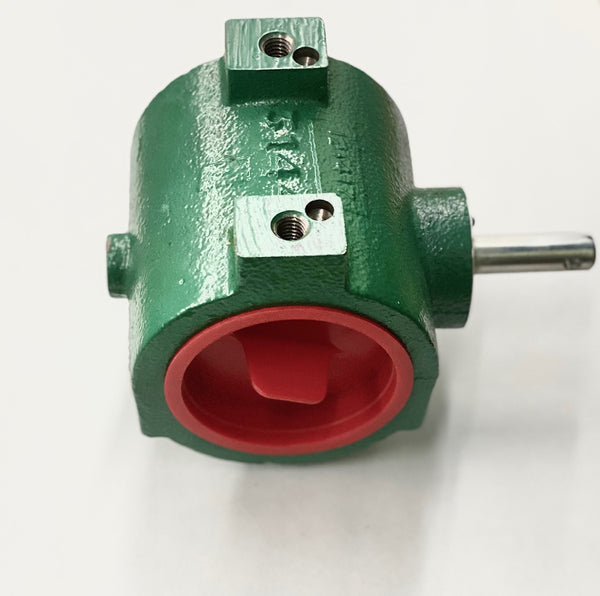

The Honeywell Eclipse 501237 is an automatic butterfly valve designed for effective air and gas flow management in combustion systems. It includes a four-inch NPT connection and features a beveled disc that allows for 75 degrees of rotation. This valve is made from a durable powder-coated cast iron body and a zinc-plated steel shaft, ensuring longevity and reliability. The Buna-N shaft packing seal and carbon steel disk enhance its performance and capacity to control flow efficiently.

• Ideal for air and gas flow control in combustion systems.
• Four-inch NPT reduced port connection for versatility.
• Robust construction with cast iron and steel for durability.

Product Highlights

This automatic valve connects easily to a Honeywell actuator with the optional connection kit.

Product Information

Standard Information

• Manufacturer: Honeywell HTS
• Part Number: 501237

Technical Specifications

• Connection: NPT
• Cv: 244
• Disc: Beveled Disc 75 degrees Rotation
• Man/Auto: Automatic
• Port: Reduced Port
• Size: Four inches
• Process Connection Size: 4 NPT
• Approvals: UL
• Gas Valve Type: Reduced Port
• Process Temp Limits: -40 to 140 F
