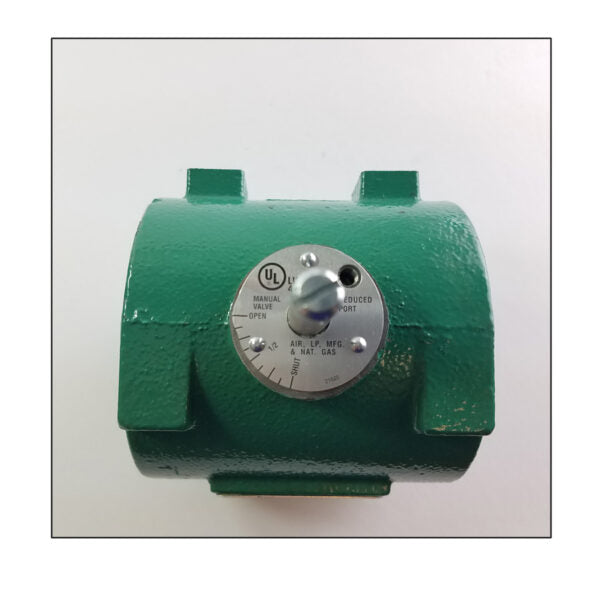

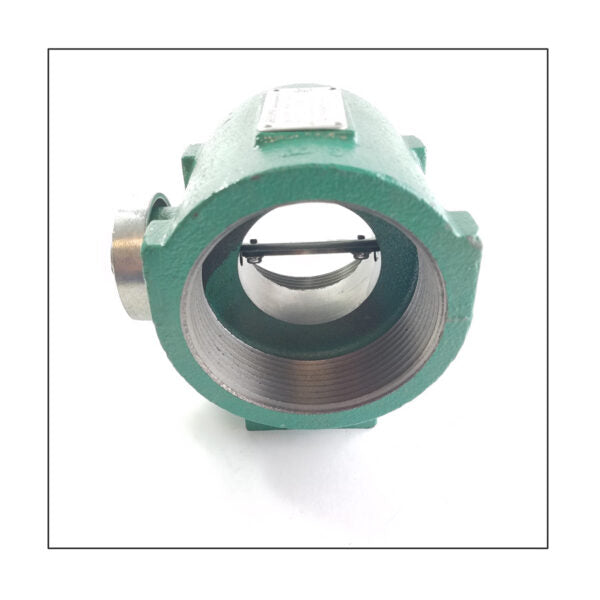

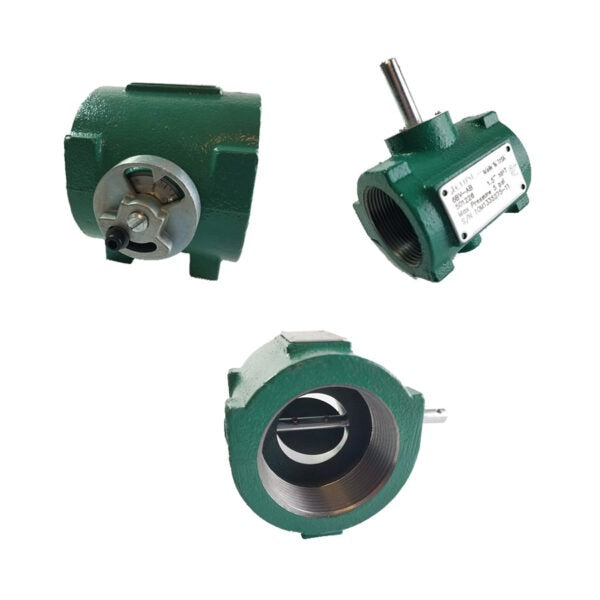

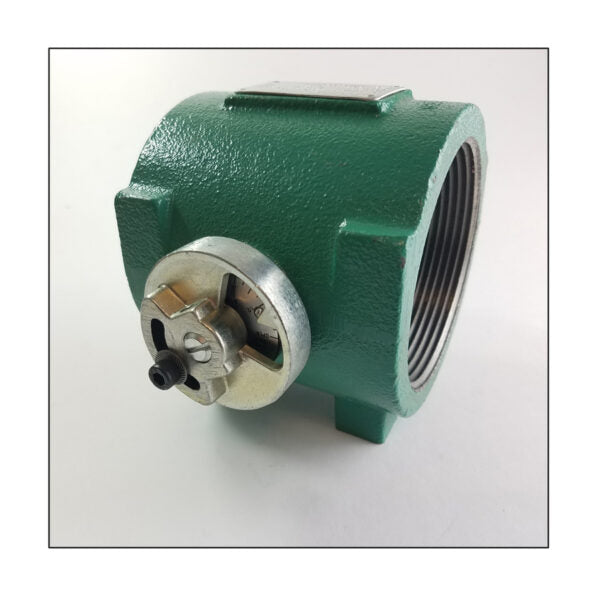

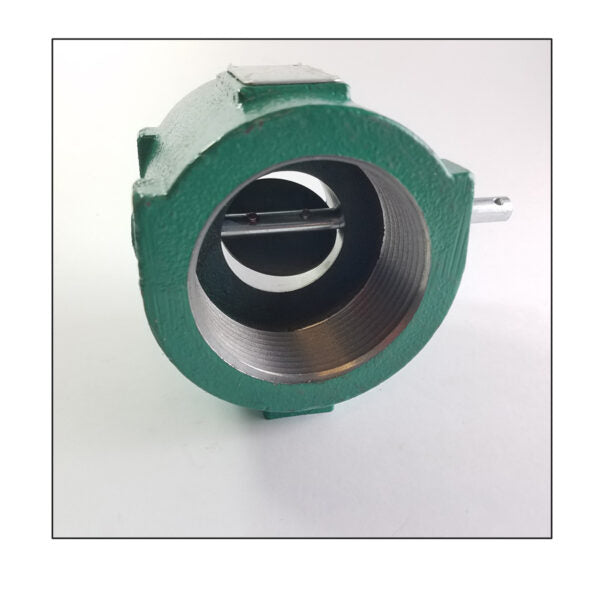

HONEYWELL 501211 Eclipse 2 Inch NPT Reduced Port Manual Butterfly Valve

Product Description

The HONEYWELL 501211 Eclipse butterfly valve controls air or gas flow in combustion systems. This valve has a two-inch reduced port and manual control functionality. It features a beveled disk that allows for a seventy-five-degree rotation.

• Designed for air and gas flow control in combustion systems.
• Features a reduced port for effective manual control.
• Includes a beveled disk for precise operation with seventy-five-degree rotation.

Product Highlights

This butterfly valve is ideal for applications requiring precise control of air and gas flow.

Product Information

Standard Information

• Valve Type: Butterfly Valve
• Port Size: 2 inches

Technical Specifications

• Port Type: Reduced Port
• Valve Operation: Manual
• Flow Coefficient (Cv): 62.7
• Flow Capacity: 1971 to 7814 SCFH Air at 0.5 to 8 inches WC Pressure Drop
• Body Material: Powder-Coated Cast Iron
• Shaft Material: Zinc-Plated Steel
• Shaft Packing Seal: Buna-N
• Disk Material: Carbon Steel
• Disk Type: Beveled Disc with seventy-five degrees Rotation
