Honeywell 47130307 Thermostat Cable 300 V 250 ft Replacement MPN

Product Description

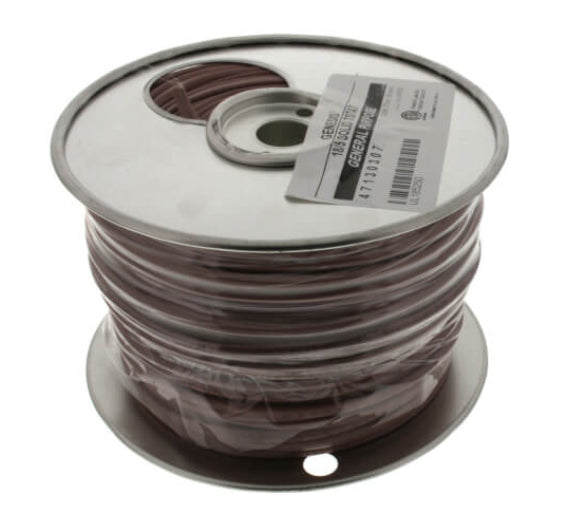

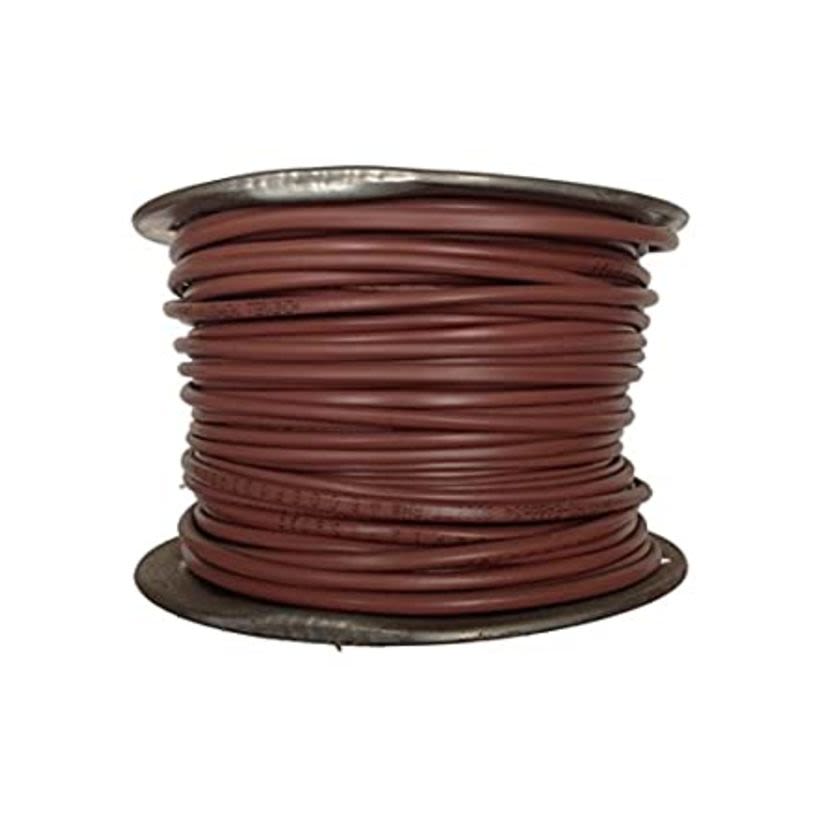

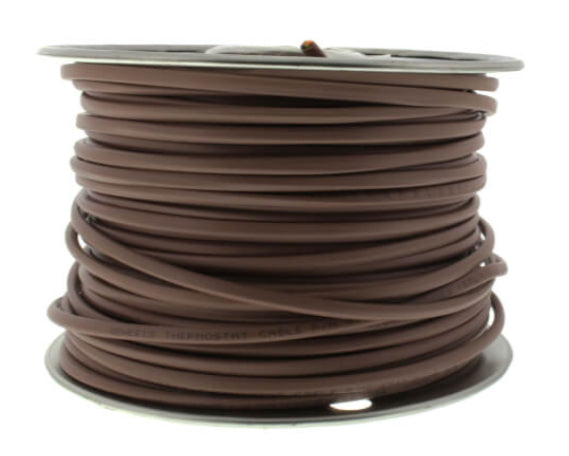

The Honeywell Genesis 47130307 is a thermostat cable designed for use in HVAC systems. This cable is rated for 300 volts and features five conductors made of solid copper, offering reliable performance for various applications. The cable includes polypropylene insulation and a durable PVC jacket, and it comes on a two hundred fifty foot reel, making it suitable for extensive wiring tasks.

• Designed for HVAC circuit power requirements

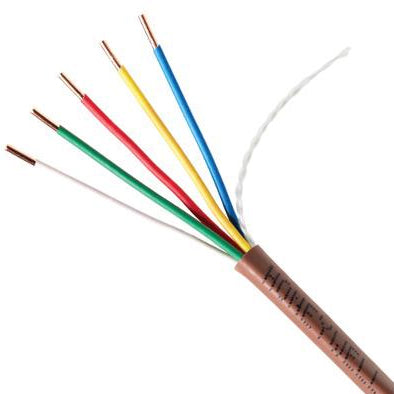

• Features five copper conductors
• Suitable for thermostat controls and HVAC equipment wiring

Product Highlights

Ideal for wiring thermostat controls and HVAC systems, this cable is dependable and flexible for installation.

Product Information

Standard Information

• Brand: Honeywell
• Model/Part Number: 47130307

Technical Specifications

• Voltage Rating: 300 V
• Number of Conductors: 5
• Conductor Material: Copper
• Conductor Size: 18 AWG
• Outside Diameter: 0.172 inches
• Length: 250 feet
• Insulation Thickness: 0.006 inches
• Jacket Thickness: 0.015 inches
• Resistance: 6.5 Ohm
• Capacitance: 25 pF/ft
• Impedance: 100 Ohm
• Insulation Material: Polypropylene
• Insulation Color: Assorted
• Jacket Material: PVC
• Jacket Color: Brown
• Temperature Rating: -20 to 60 degrees Celsius
• Package Type: Reel
• Type: Thermostat Cable
• Gauge: 18 GA
• Product Length: 250 Feet
• Style: Solid
• Voltage: 300 VAC
• Standards/Approvals: NEC Article 725
• Product Type: Thermostat Wire
• Item Name: Thermostat Cable
• Series/Model: Genesis Series
