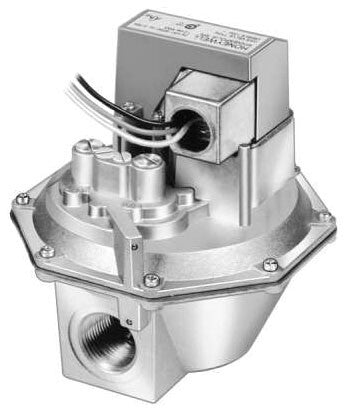

HONEYWELL 44237 Gas Valve 120V 1-1/4inch

Product Description

The HONEYWELL 44237 is a gas valve designed for controlling natural or LP gas flow. It operates at 120 volts and provides reliable on/off flow control. This valve is suitable for various heating applications, including atmospheric boilers and rooftop heaters.

• Solenoid-operated for efficient operation
• Closes automatically during power failure for safety
• Ideal for heating systems and duct furnaces

Product Highlights

The power failure shut-off feature enhances safety in gas-controlled systems.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: 44237

Technical Specifications

• Manufacturer Part Number: V4943A1029
• Diaphragm Gas Valve Type: ON/OFF, NC, Rapid Opening, Straight-Through, Non-Offset, Solenoid Operated
• Nominal Size: 1-1/4 Inch
• End Connection: Threaded x Threaded
• End to End Distance: 6 Inch
• Body Material: Die-Cast Aluminum
• Temperature Rating: -40 to 150 Deg F
• Pressure Rating: 1/2 PSI
• Application: Atmospheric Boiler, Commercial Water/Makeup Air and Rooftop Heater, Duct Furnace
• Applicable Standard: UL, CSA
• Fuel Type: Liquid Propane, Natural
• Mounting Position: Upright (Horizontal)
• Connection Type: 1/4 Inch Spade Terminal, (2) 30 Inch Lead Wire
• Voltage Rating: 120 Volt AC 60 Hertz
• Current Rating: 0.055 Amp
• Power Rating: 6 Volt Amp
• Valve Operation Timing: 6 Second (Open), 3 Second (Close)
