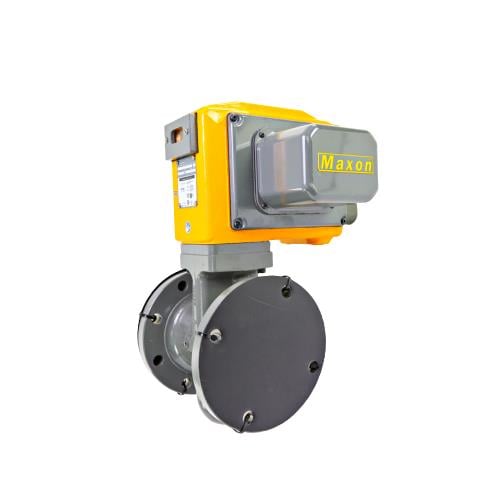

HONEYWELL 400CMA11-BA11-BB22A0 Maxon Gas Safety Shutoff Valve 115 VAC 4 Inch

Product Description

The Honeywell 400CMA11-BA11-BB22A0 Maxon Gas Safety Shutoff Valve is designed for natural gas service. This normally closed electromechanical valve features an automatic reset function. It has a valve size of four inches and an ANSI flanged connection for easy installation.

• Normally Closed Electromechanical Valve
• Designed for Natural Gas Applications
• Automatic Reset Functionality

Product Highlights

This valve is built with a durable carbon steel body and a reliable 316 stainless steel seat and disc.

Product Information

Standard Information

• Brand: Honeywell
• Type: Automatic Electromechanical Shutoff Valve

Technical Specifications

• Valve Size: 4 inches (DN100)
• Connection: ANSI Flanged
• Valve Cv: 490
• Max Operating Pressure Differential: 40 PSIG
• Body Material: Carbon Steel
• Seat and Disc Material: 316 Stainless Steel
• O-Rings and Bumper: Buna N
• Actuator: 115 VAC/60 Hz Actuator Motor with 6 Second Timing
• Switches: Two Proof-of-Open Switches, Two Proof-of-Closure Switches
• Enclosure Rating: NEMA 4
• Normal Position: NC Shut Off
• Voltage: 115V AC
• Process Temp Limits: -20 to 140 F
• Approvals: UL, FM, CSA
• Country/Region of Manufacture: United States
