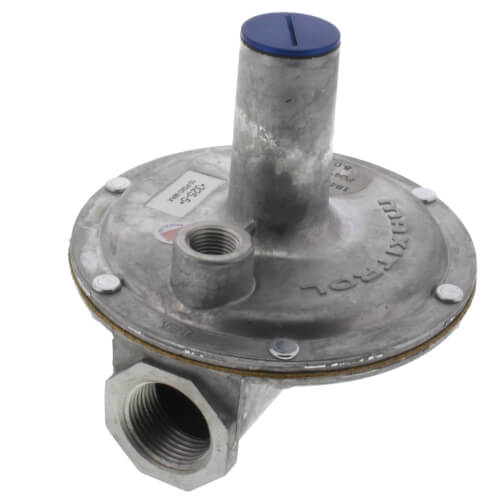

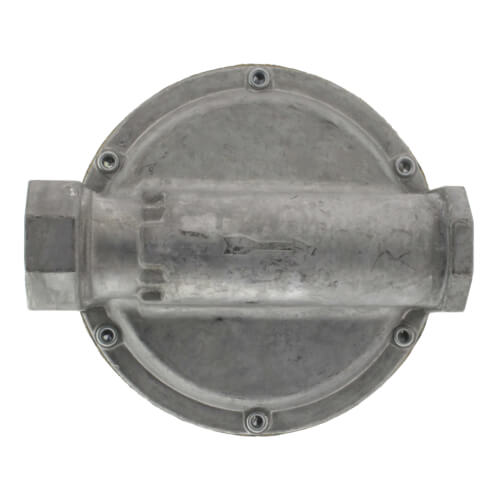

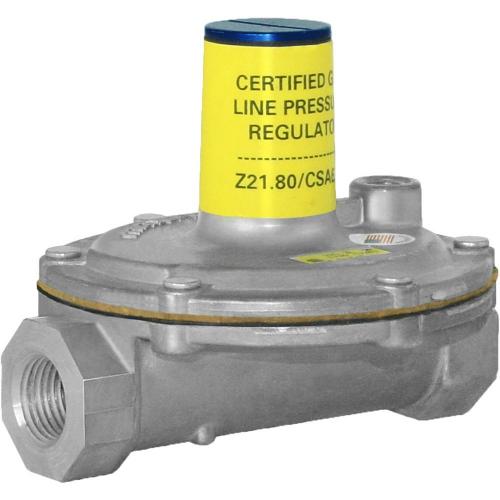

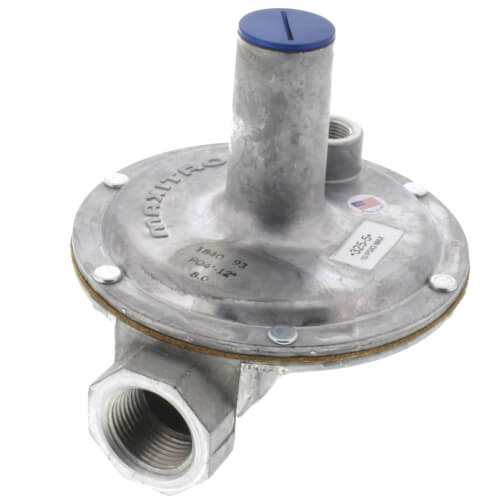

HONEYWELL 325-5-1-12A39 Gas Pressure Regulator

Product Description

The HONEYWELL 325-5-1-12A39 gas pressure regulator is ideal for residential, commercial, and industrial settings. It ensures reliable gas pressure control and application versatility.

• Designed for multiple applications, including residential and industrial.
• High leverage valve linkage enables accurate control from full flow to pilot flow.
• Compatible with various gas types such as natural gas and LP gas.

Product Highlights

This regulator provides precise regulating performance and is constructed to handle various gas types.

Product Information

Standard Information

• Part Description: Gas Pressure Regulator
• Actuation Type: Lever

Technical Specifications

• Nominal Size: 1 Inch
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 5.9 Inch
• Body Material: Aluminum
• Temperature Rating: 40 to 205 Deg F
• Pressure Rating: 2/5/10 PSI (Inlet), 65 PSI (Emergency Exposure Limit)
• Max Inlet Pressure: 10 PSI
• Application: Residential, Commercial, Industrial
• Applicable Standard: CSA (Canada and US), CE, ANSI Z21.18/CSA 6.3
• Gas Type: Natural, Mixed Gas, Liquefied Petroleum Gas and LP Gas Air Mixture
• Vent Pipe Connection: 3/8 Inch Threaded
• Swing Radius: 4.9 Inch
• Spring Size: 4 to 12 Inch WC
• Height: 5.3 Inch
• Capacity: 325000 BTU/Hour
• Individual Load Rating: 325000 BTU/Hour
