Honeywell 2DM1 Snap-in Panel Mount Switch 10 A

Product Description

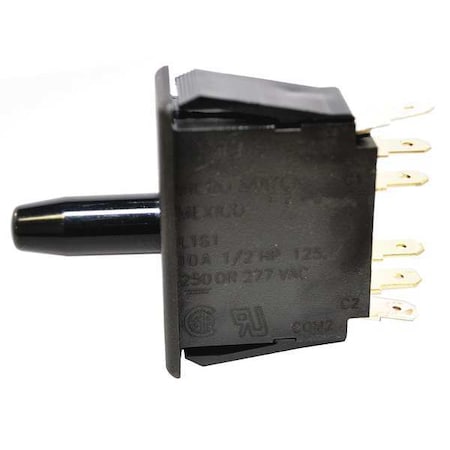

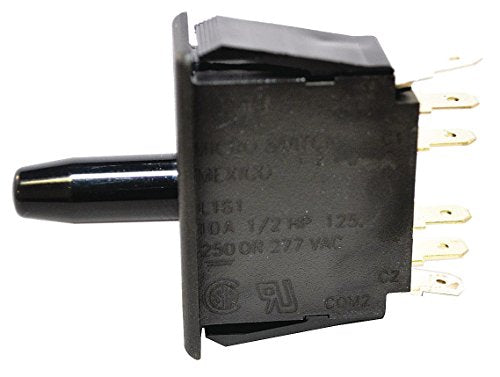

The HONEYWELL 2DM1 is a snap-in panel mount switch with double pole double throw (DPDT) circuitry. It features a bullet nose plunger actuator, silver contacts, and quick connect termination. This switch is designed to cut power when a service door or drawer is opened, helping to protect personnel and equipment.

• Snap-in Panel Mount
• DPDT Circuitry
• Quick Connect Termination

Product Highlights

This switch is ideal for industrial applications requiring a reliable and easy-to-install panel mount switch. It is commonly used as a door interlock switch.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: 2DM1
• Country of Origin: Mexico

Technical Specifications

• Circuitry: Double Pole Double Throw (DPDT)
• Actuator: Bullet Nose Plunger
• Contacts: Silver
• Termination: Quick Connect
• Current: 10 A
• Voltage: 277 Vac
• AC Contact Rating: 10A @ 240V
• Height: 1.12 In.
• Depth: 0.55 In.
• Electrical Connection: Quick Connect
• Mounting Dimension: 1.45 In. x 0.55 In. Panel Hole
• Series: DM Series
• Standards: Ul Recognized, CSA Certified
• Over Travel: 0.4 in
• Release Force: 170gf
• Terminal Type: Quick Connect
• Current Rating: 10A
• Max. Pretravel: 0.11 in
• Voltage Rating: 250VAC
• Actuator Length: 1.94"
• Operating Force: 680gf
• Housing Material: Polyester
• Type of Actuator: Bullet Nose Plunger
• Differential Travel: 0.045 in
• Operating Temp. Range: -35 Degrees to 180 Degrees F
• Category: Switches, Limit Switches
• Manufacturer: Honeywell Sensing and Productivity Solutions
• Part Status: Active
• Circuit: DPDT
• Switch Function: On-Mom
• Current Rating (Amps): 10A (AC)
• Voltage Rating - AC: 125 V
• Actuator Type: Round (Pin Plunger)
• Mounting Type: Panel Mount, Snap-In
• Termination Style: Quick Connect - 0.187" (4.7mm)
• Operating Position: 0.770" (19.5mm)
• Overtravel: 0.400" (10.2mm)
• Mechanical Life: 1,000,000 Cycles
• Operating Temperature: -37°C ~ 82°C
• Brand: HONEYWELL
• Contact Form: 2 CO
• Manufacturer Part Number: 2DM1
• Number of Poles: 2
• Number of Positions: 2
• Temperature Rating: -37 to +82 C
• Type: Interlock
