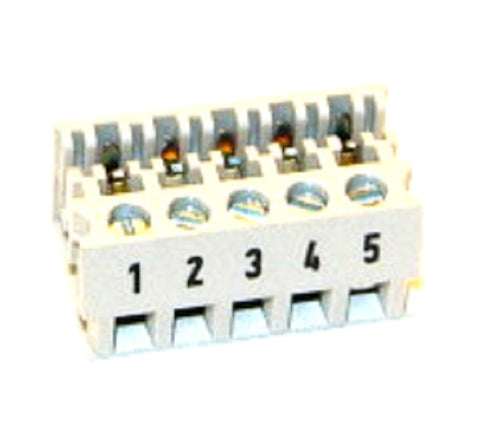

Honeywell 203541/U Five Wire Connector

Product Description

The Honeywell 203541/U is a specialized five-wire electrical connector designed for seamless integration with 7800 SERIES Relay Modules and S7800A Keyboard Display Modules. This 5-pin plug-in accessory facilitates data communication, remote reset capabilities, and 13 Vdc power distribution within a daisy chain configuration. It supports wire sizes from 14 to 22 AWG and operates in temperatures from -40°F to +257°F, ensuring a secure, low-impedance link for microprocessor-based burner control systems.

• Compatible with 7800 SERIES Relay Modules and S7800A Keyboard Display Modules.
• Enables data communication, remote reset, and 13 Vdc power distribution.
• Supports 14 to 22 AWG wire sizes and rated for 5A and 300V.

Product Highlights

Specialized 5-wire electrical connector for 7800 SERIES Relay Modules and S7800A Keyboard Display Modules, enabling data communication and remote reset.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: 203541/U

Technical Specifications

• Connector Type: 5-wire electrical connector
• Compatibility: 7800 SERIES Relay Modules, S7800A Keyboard Display Modules, S7800A1001
• Functionality: Data communication, remote reset capabilities, 13 Vdc power distribution
• Configuration: Daisy chain
• Wire Size Support: 14 to 22 AWG
• Operating Temperature: -40°F to +257°F
• Accessory Type: 5-pin plug-in
• Rating: 5A and 300V
