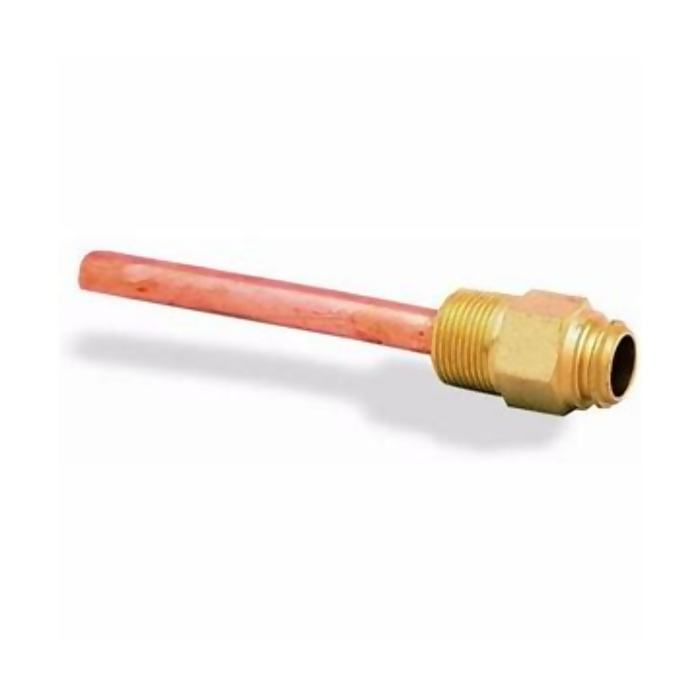

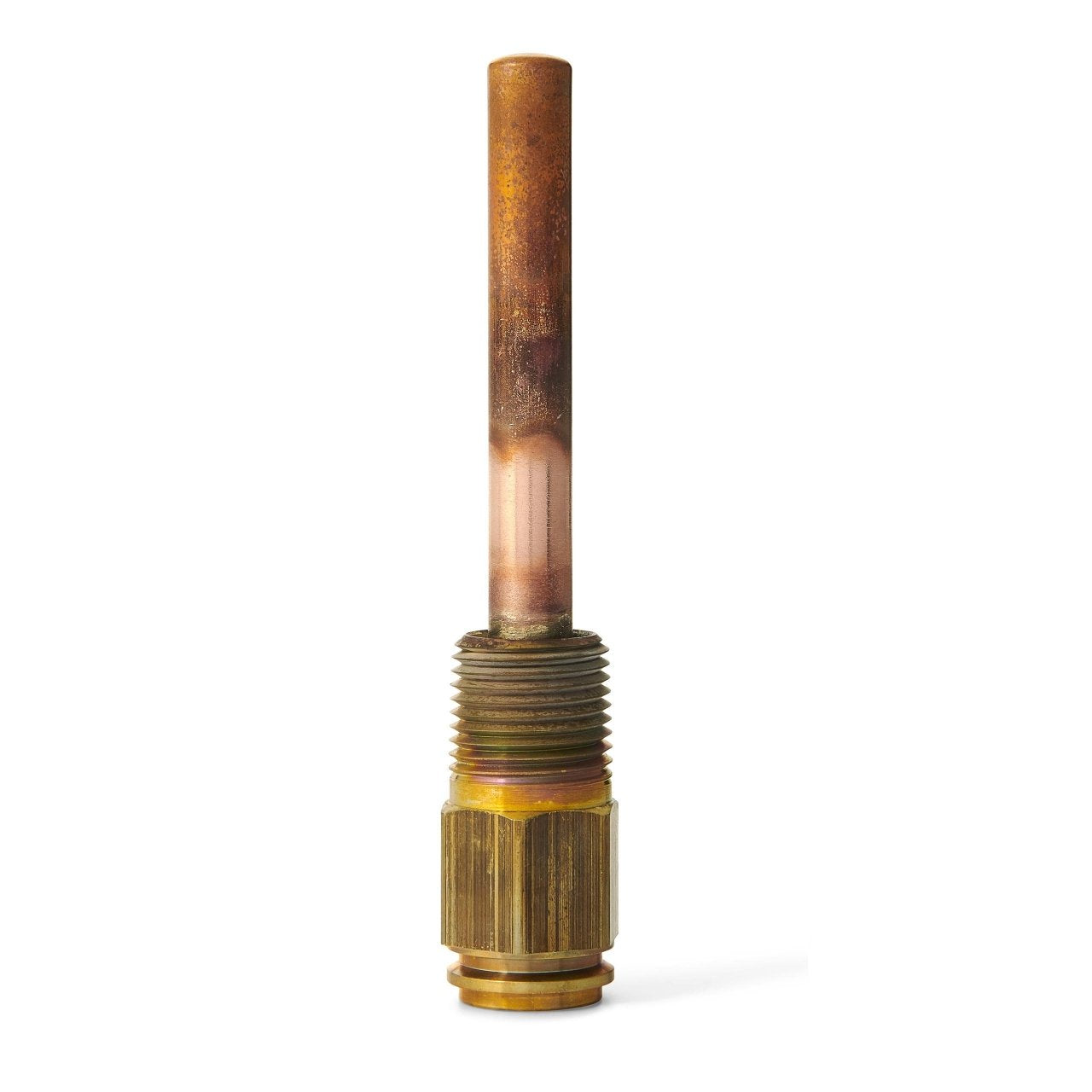

Honeywell 121371M/U Copper Well Assembly with Mounting Clamp, 3/8 inches x 3 inches Bulb Size

Product Description

The Honeywell 121371M/U Copper Well Assembly with Mounting Clamp accommodates a 3/8" x 3" bulb size. This copper well assembly is designed for use with Aquastat sensors in pressurized vessels, allowing temperature sensing while protecting the sensing bulb. It allows bulb removal for testing without draining the system.

• Includes mounting clamp
• 3/4 in. NPT connection
• 3 in. insertion depth

Product Highlights

This copper well assembly is for use with Aquastat sensors and allows temperature sensing in pressurized vessels.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: 121371M/U
• Country of Origin: United States

Technical Specifications

• Item Model Number: 121371M/U
• Brand: Honeywell
• Number of Items: 1.0
• NPT: 3/4 in.
• Internal: 3/8 in.
• Insertion: 3 in.
• Model / MPN: 121371M/U
• Manufacturer: Honeywell
• Product Type: Hvac Controls
• Product Category: Thermostats and Controls
• UPC: 085267005494
• Product Line: 12137
• Parts Warranty: 1 Year
• Application: Immersion wells used with Aquastat® to hold the temperature sensing bulb in the controlled medium and prevents leakage
• Product Features: Allow heat transfer while protecting the sensing bulb from contact with the controlled medium, Permit removal of the sensing bulb for testing or replacement without draining the system
• For Use With: Aquastat Controllers
• Includes: 121371 Mounting Clamp
• Material: Copper (Cu)
• Operating Pressure (Max): 255 psi @ 300 °F, 1758 kPa @ 149 °C
• Bulb Diameter: 3/8 in
• Capillary Diameter: 5/64 in
• Connection Size: 3/4 in - 14
• Connection Type: NPT
• Well Spud Size: 3/4 in, 19 mm
• Element Insertion Length: 3 in
• Product Length: 6 in
• Shell (internal diameter): 3/8 in.
• Well Spud Size (in.): 3/4 in. - 14 NPT
• Insulation Depth (in.): 3 in.
• Materials: Copper
• Well Spud Size (mm): 19 mm - 14 NPT
• Insertion Length (in.): 3 in.
• MPN: 121371M/U
