Honeywell 121371L/U Copper Well Assembly 3 in

Product Description

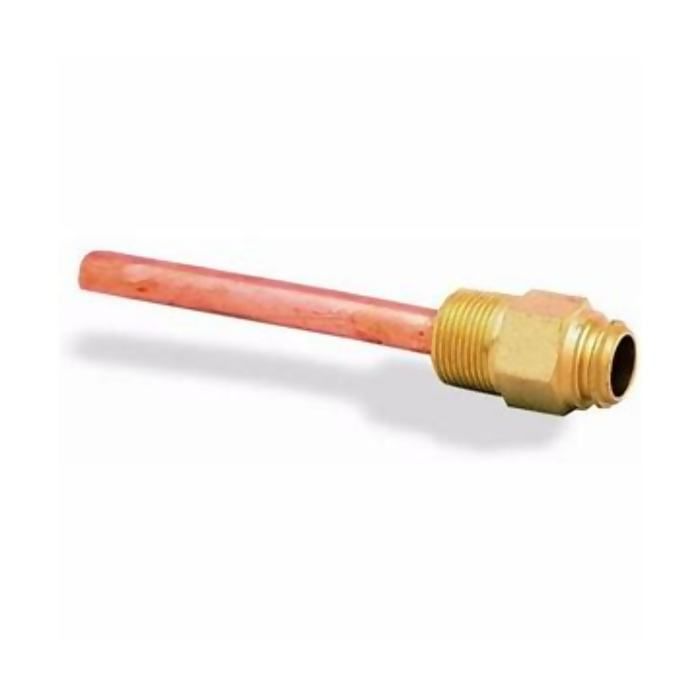

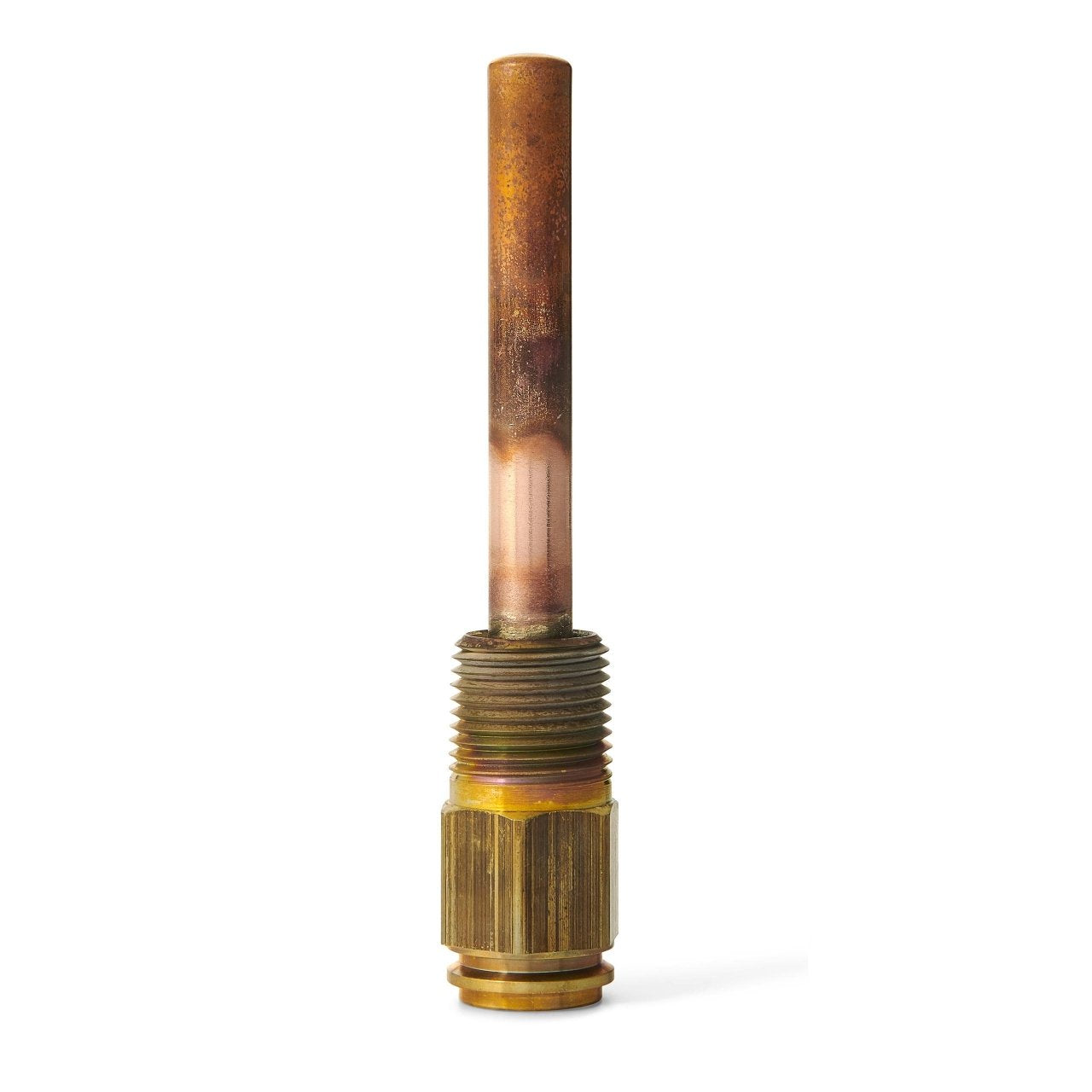

The HONEYWELL 121371L/U copper well assembly features a 1/2 in. NPT, 3/8 in. internal diameter, and 3 in. insertion depth. It is designed for use with aquastat temperature controllers to hold the temperature sensing bulb in the controlled medium. This assembly includes a mounting clamp for easy installation. It allows heat transfer while protecting the sensing bulb.

• Spud length: 1/2"-14 NPT
• Insertion length: 3"
• Shell (internal diameter): 3/8"

Product Highlights

This copper well assembly is used with aquastat temperature controllers and prevents leakage of the controlled medium.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: 121371L/U

Technical Specifications

• Part #: 121371L/U
• MPN: 121371L
• Manufacturer Part Number: 121371L
• UPC / GTIN: 085267005487
• Manufacturer: Honeywell
• Application: Immersion wells used with Aquastat® to hold the temperature sensing bulb in the controlled medium and prevents leakage
• Product Features: Allow heat transfer while protecting the sensing bulb from contact with the controlled medium, Permit removal of the sensing bulb for testing or replacement without draining the system
• For Use With: Aquastat Controllers
• Includes: 121371 Mounting Clamp
• Material: Copper
• Operating Pressure (Max): 255 psi @ 300 °F, 1758 kPa @ 149 °C
• Bulb Diameter: 3/8 in
• Capillary Diameter: 5/64 in
• Connection Size: 1/2 in - 14
• Connection Type: NPT
• Well Spud Size: 1/2 in, 13 mm
• Element Insertion Length: 3 in
• Product Length: 6 in
• Suitable For Use With: Aquastat® Temperature Controller
• Manufacturer #: 121371L/U
• Shell (internal diameter): 3/8 in.
• Insertion Length (in.): 3 in.
• Well Spud Size (in.): 1/2 in. - 14 NPT
• Bulb Size: 3/8" X 3"
• Type: Immersion, Capillary
• Thread Size: 1/2"-14 TPI
• Shell Size: 3/8" Inner Diameter
• Insulation Depth: 3 in
