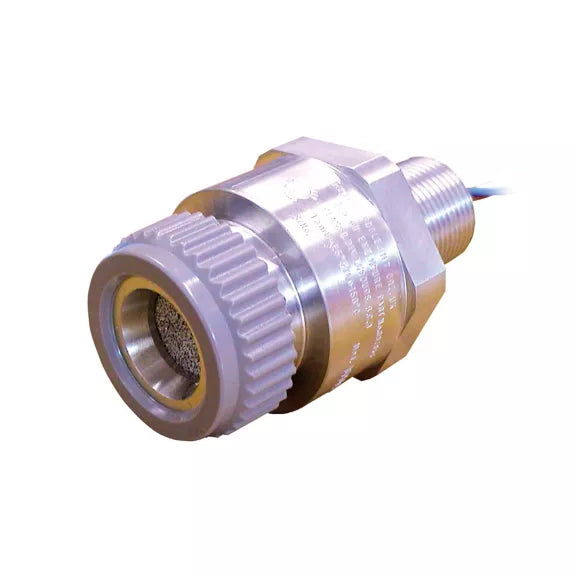

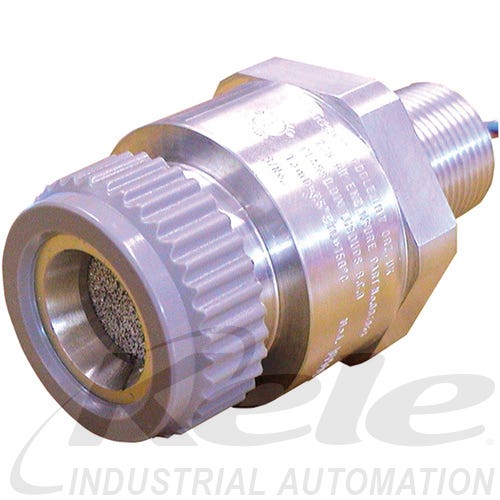

Honeywell 00705-A-1735 Model 705 High Temperature Flammable Gas Sensor

Product Description

The Honeywell 00705-A-1735 Model 705 is a specialized sensor for detecting flammable gases in high-temperature environments. With its UL-approved explosion-proof assembly, this sensor is designed for use in hazardous areas. It employs poison-resistant Sieger detectors that provide reliable low-level alarms and stable detection across a wide temperature range.

• High-temperature performance for hazardous locations.
• Poison-resistant detection for consistent reliability.
• Provides mV bridge output for seamless connection with control equipment.

Product Highlights

This sensor is ideal for applications like turbine enclosures and drying ovens. The configurable measuring ranges allow for monitoring from zero to twenty percent LEL or up to one hundred percent LEL, contingent on the connected controller.

Product Information

Standard Information

• Brand: Honeywell
• MPN: 00705-A-1735

Technical Specifications

• Gas Type: Flammable
• Measuring Range: 0-20% LEL, 0-100% LEL
• Alarm Settings: 5% LEL
• Operating Temperature: -13 to 302 degrees F (-25 to 150 degrees C)
• Humidity Range: Continuous: 20 to 90% RH, Intermittent: 10 to 99% RH
• Signal Output: mV Bridge
• Speed of Response: T60 < 6 sec, T90 < 10 sec
• Power Consumption: 0.7W @200 mA
• Enclosure Material: Aluminum
• Mounting Thread: 3/4 in NPT
• NEMA Rating: NEMA 4X
• Maximum Pressure: 110 kPa
• Warm Up Time: 30 min
• Storage Life: Up to 5 years
• Repeatability: Better than ±2% LEL
• Stability (Zero): With Humidity: < ±3% LEL, With Pressure: < ±3% LEL, With Temperature: < ±3% LEL, With Time: < ±5% LEL/year
• Stability (Span): With Humidity: < ±3% LEL, With Pressure: < ±3% LEL, With Temperature: < ±4% LEL, With Time: < ±5% LEL/year
• Operating Pressure: 75 to 110 kPa (750 to 1100 mbar)
• Certification: Class 1, Div 1, groups B, C, and D Tamb: -25 to 15 degrees C
• Dimensions: 78 mm x 55 mm (Sensor), 87 mm x 165 mm dia (Collecting Cone), Sample Flow Housing: 61 mm x 45 mm x 31 mm, Weather Protection Housing: 76.5 mm x 50.8 mm dia
