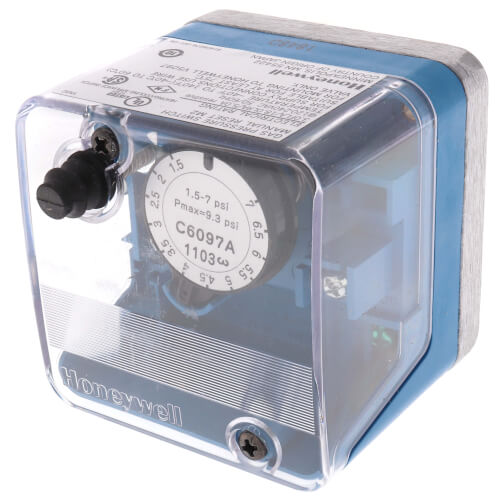

Honeywell C6097A1103 Pressure Switch 1.5 to 7 psi

Product Description

The Honeywell C6097A1103 Pressure Switch is designed to sense gas or air pressure in positive-pressure or differential-pressure systems. It operates within a range of 1.5 to 7 psi and is suitable for use with natural gas, liquid propane (LP) gas, or air.

• Diaphragm-actuated safety-limit switch
• Switch can be wired to turn on an alarm
• Manual reset and recycle options available

Product Highlights

This pressure switch features a diaphragm-actuated safety-limit switch, an external manual reset button, and a removable transparent cover. It can be directly mounted using a 1/4 inch NPT or flange mount and includes an IP54 enclosure standard.

Product Information

Standard Information

• Brand: Honeywell
• MPN: C6097A1103

Technical Specifications

• Pressure Range: 1.5 to 7 psi
• Switch Action: Break on pressure fall
• Switch Operation: Manual Reset
• Mounting: 1/4 inch NPT or flange mount
• Enclosure: IP54 standard
• Weight: 0.63 lbs
• Shipping Depth: 4.3 inches
• Shipping Width: 3.25 inches
• Shipping Height: 3.25 inches
