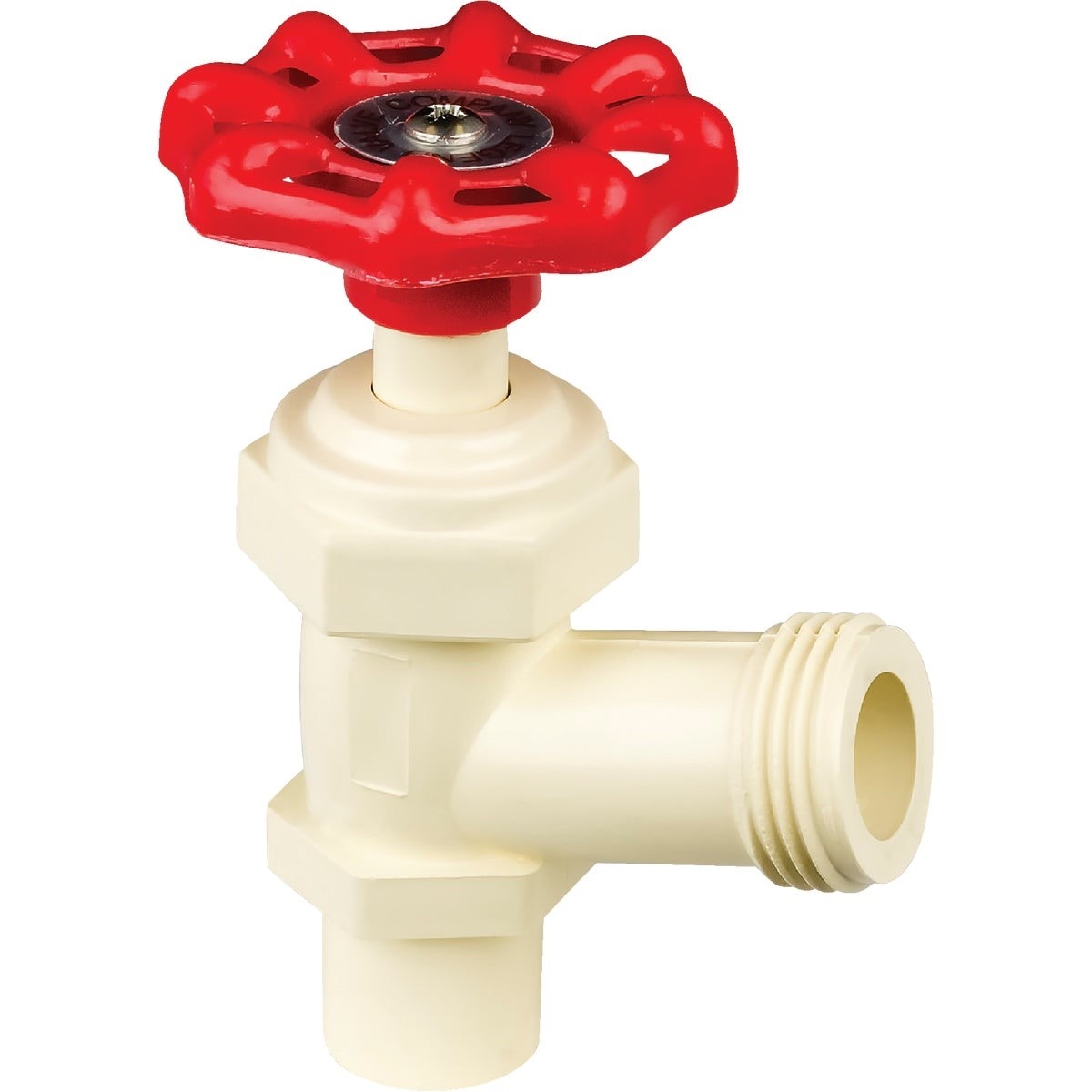

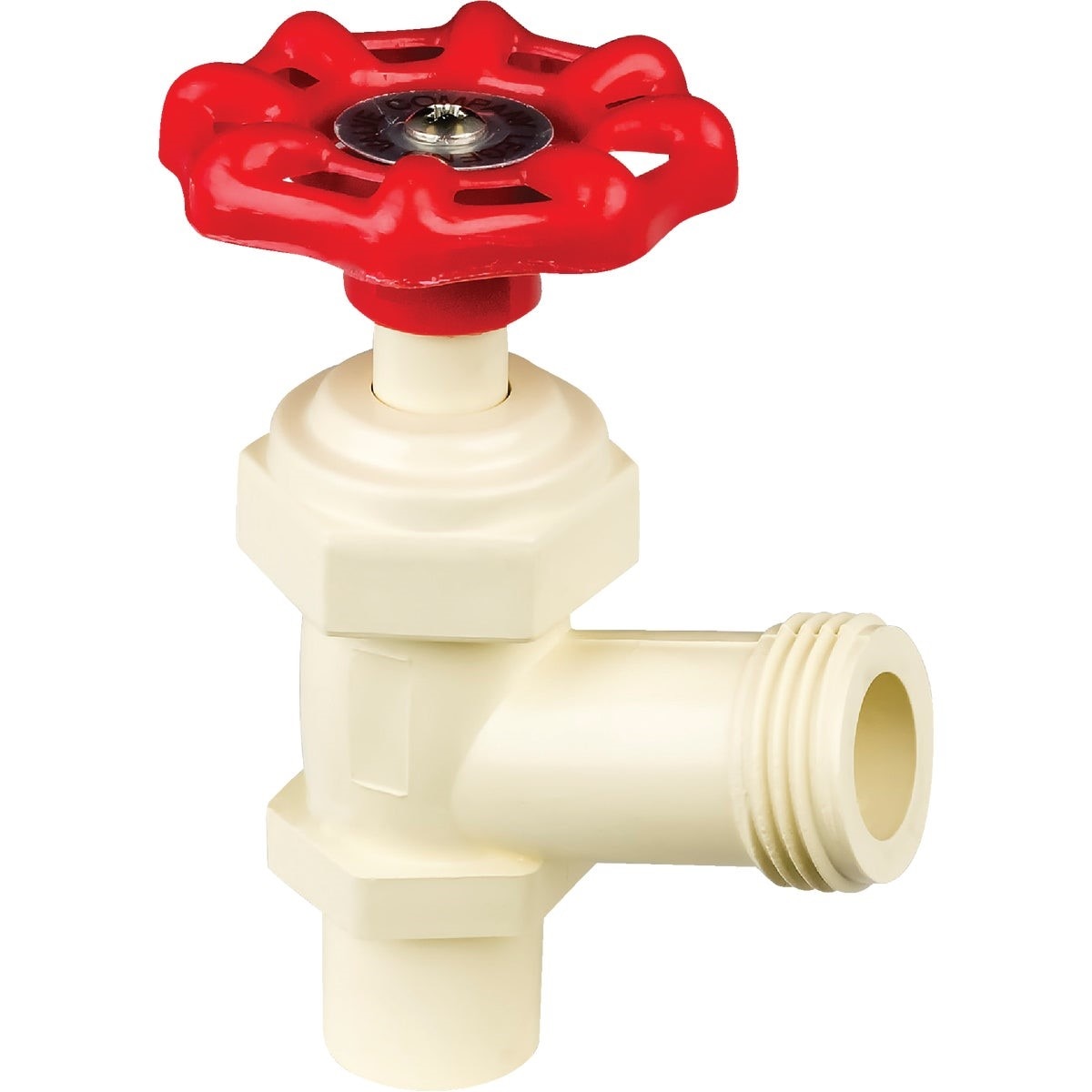

Homewerks Worldwide VBDCPVE3 Cpvc Boiler Drain

Product Description

The HOMEWERKS WORLDWIDE VBDCPVE3 is a CPVC boiler drain fitting designed to provide a reliable drain or hose connection point on hot water heating systems and domestic plumbing lines. The fitting solvent welds directly into CPVC pipe, creating a permanent, leak-resistant joint on the supply side, while the externally threaded hose end accepts standard female garden hose or drain hose couplings. At 0.206 pounds, it is a compact, lightweight fitting suited for residential boiler drain applications. Licensed plumbers and pipefitters install this type of drain valve fitting when servicing or commissioning CPVC-piped heating and water systems.

This fitting is used in residential and light commercial plumbing systems wherever a CPVC pipeline requires a hose-thread drain outlet. Typical installations include boiler drain points, water heater drain connections, and zone isolation drain ports on hydronic heating systems. The 1/2 inch CPVC solvent-weld inlet connects directly to standard 1/2 inch CPVC pipe, and the 3/4 inch male hose thread outlet mates with standard garden hose female couplings for controlled drainage or hose attachment.

Key Features

• Solvent welds directly into 1/2 inch CPVC pipe for a permanent, secure connection
• 3/4 inch male hose thread outlet accepts standard female garden hose couplings
• CPVC construction provides heat and chemical resistance suited for hot water systems
• Lightweight at 0.206 pounds for easy handling and installation in tight spaces
• Single-piece fitting design with no moving parts to maintain or service

Compatibility

Designed as an OEM-style replacement and new-installation fitting for residential and light commercial CPVC plumbing systems requiring a 1/2 inch sweat-to-3/4 inch hose thread drain outlet.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and ASTM F493 solvent cement standards for CPVC. Shut off the water supply and relieve system pressure before cutting into any existing line. Use only CPVC-rated solvent cement and primer on the socket end; do not use PVC-only cement on CPVC fittings. Allow full cure time per the cement manufacturer's instructions before pressurizing the system.

Technical Specifications

• Inlet Size: 1/2 inch
• Outlet Thread: 3/4 inch hose thread
• Connection Type: CPVC solvent weld inlet x female hose thread outlet
• Material: CPVC (chlorinated polyvinyl chloride)
• Weight: 0.206 pounds
• UPC: 00879420001931

Standard Information

• Brand: HOMEWERKS WORLDWIDE
• Manufacturer Part Number: VBDCPVE3
