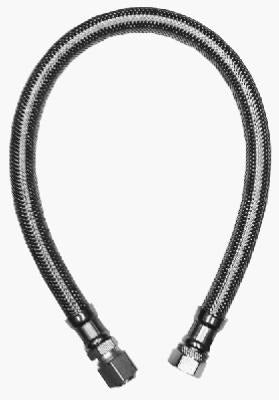

Homewerks Worldwide Llc 7223-16-38-4 Faucet Connector

Product Description

The HOMEWERKS WORLDWIDE LLC 7223-16-38-4 is a lead-free stainless steel faucet supply connector designed for Delta-style faucets that have copper water supply tubes exiting the bottom of the faucet body. It measures 3/8 inches compression inlet by 3/8 inches OD by 16 inches in length, providing a reliable, corrosion-resistant connection between the shutoff valve and faucet. The wetted surfaces that contact consumable water contain less than 0.25 percent lead by weight, meeting stringent low-lead standards. Licensed plumbers and qualified installers use this connector during faucet installation and replacement in residential and light commercial settings.

This connector is specifically suited for Delta faucets equipped with copper water supply tubes at the base. The 16-inch length accommodates typical under-sink rough-in distances, and the compression-by-OD fitting configuration eliminates the need for soldering at the supply tube connection point. It is commonly installed in kitchen and bathroom sink applications where a flexible, low-lead supply line is required to connect the water shutoff valve to the faucet assembly.

Key Features

• Lead-free construction — wetted surfaces contain less than 0.25 percent lead by weight
• Stainless steel body for corrosion resistance in wet under-sink environments
• Delta-style design engineered for faucets with copper supply tubes at the bottom
• 16-inch length suits standard under-sink supply rough-in distances
• Meets AB1953 California and VT S152 Vermont low-lead restrictions
• Compression inlet connection requires no soldering at the shutoff valve end

Compatibility

Designed for use on Delta faucets that have copper water supply tubes coming out of the bottom of the faucet. Fits a 3/8 inches compression shutoff valve outlet and a 3/8 inches OD copper supply tube.

Installation Notes

Installation should be performed by a licensed plumber or qualified technician in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply at the main valve or dedicated stop valve and relieve line pressure before disconnecting any existing supply lines. Hand-tighten compression fittings first, then snug with a wrench — do not overtighten, as this can damage the compression ferrule or fitting seat. Inspect for leaks at both ends after restoring water pressure.

Technical Specifications

• Inlet Connection: 3/8 inches Compression
• Outlet Connection: 3/8 inches OD
• Length: 16 inches
• Material: Stainless Steel
• Lead Content (Wetted Surfaces): Less than 0.25 percent by weight
• Certifications: AB1953 California Low Lead, VT S152 Vermont Low Lead
• Package Quantity: 25 per unit of measure
• Weight: 6.82 pounds

Standard Information

• Brand: HOMEWERKS WORLDWIDE LLC
• Manufacturer Part Number: 7223-16-38-4
