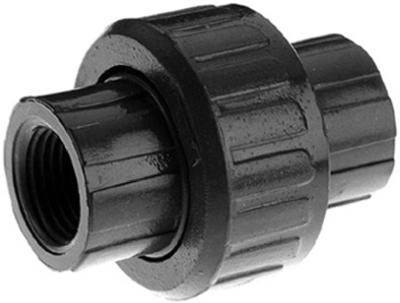

Homewerks Worldwide Llc 512-44-34-34B Pvc Threaded Union

Product Description

The HOMEWERKS WORLDWIDE LLC 512-44-34-34B is a 3/4 inch gray PVC threaded union rated for Schedule 80 heavy-duty service. It uses a rubber O-ring seal to maintain a secure, leak-resistant connection without requiring thread sealant on the union face. Rated at 150 psi at 73 degrees F, this union is well-suited for both pressure and drain applications in industrial, commercial, and residential plumbing systems. Plumbers and pipefitters install this fitting wherever a removable, threaded union connection is needed in a PVC line. It ships in packages of 25 units.

This union is designed for use in PVC piping systems where periodic disassembly is required for maintenance or equipment service. It is compatible with both Schedule 40 and Schedule 80 pipe, making it versatile across a wide range of installations. Typical applications include chemical handling, water treatment, irrigation, and general-purpose plumbing lines where PVC is the specified material. The threaded design allows installation without solvent cement at the union joint itself, simplifying future serviceability.

Key Features

• Rated at 150 psi at 73 degrees F for reliable pressure service
• Heavy-duty Schedule 80 construction for increased wall thickness and impact resistance
• Compatible with both Schedule 40 and Schedule 80 PVC pipe
• Rubber O-ring seal provides a leak-resistant union face connection
• Complies with ANSI B2.1 threading standard
• Gray PVC material suited for chemical and industrial environments

Compatibility

Designed for use with Schedule 40 and Schedule 80 PVC piping systems. Compatible with 3/4 inch NPT threaded PVC fittings and pipe conforming to ANSI B2.1 threading specifications.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters. Shut off and depressurize the line before disassembling or installing any union fitting. Thread both male ends into the adjoining pipe sections using appropriate thread sealant on the NPT threads, then hand-tighten and wrench-snug the union nut. Follow all applicable IPC and local plumbing code requirements for PVC pressure piping installations.

Technical Specifications

• Size: 3/4 inch
• Material: Gray PVC
• Schedule: Schedule 80
• Pressure Rating: 150 psi at 73 degrees F
• Seal Type: Rubber O-ring
• Thread Standard: ANSI B2.1
• Compatible Pipe Schedule: Schedule 40 and Schedule 80
• Package Quantity: 25 EA
• Package Weight: 7.95 pounds

Standard Information

• Brand: HOMEWERKS WORLDWIDE LLC
• Manufacturer Part Number: 512-44-34-34B
