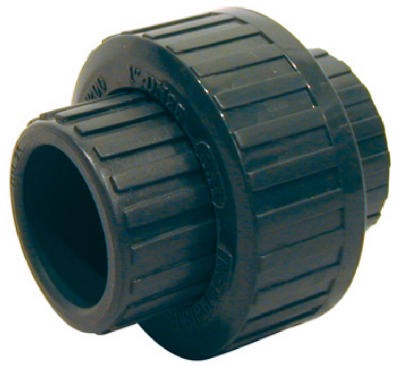

Homewerks Worldwide Llc 512-14-34-34B Pvc Slip Union

Product Description

The HOMEWERKS WORLDWIDE LLC 512-14-34-34B is a 3/4 inch gray PVC solvent weld slip union built to Schedule 80 heavy-duty standards. It uses a rubber O-ring seal to create a reliable, leak-resistant joint in pressure piping systems. Rated at 150 PSI at 73 degrees F, this union is designed for plumbing, irrigation, and industrial applications where PVC pipe must be periodically disconnected and reconnected. Licensed plumbers and pipefitters are the typical installers. The slip-style socket ends accept standard PVC pipe for solvent weld assembly.

This union is suited for residential and light commercial piping systems where Schedule 80 or Schedule 40 PVC pipe is used. Common install scenarios include pool and spa equipment connections, irrigation mainlines, chemical feed systems, and general pressure piping where union access points are required. The gray Schedule 80 body provides greater wall thickness and pressure tolerance compared to Schedule 40 fittings, making it appropriate for higher-stress installations.

Key Features

• Rated at 150 PSI at 73 degrees F for reliable pressure service
• Schedule 80 heavy-duty PVC construction for greater wall thickness and durability
• Rubber O-ring seal provides a secure, leak-resistant connection
• Compatible with both Schedule 80 and Schedule 40 PVC pipe
• Solvent weld slip socket ends for standard PVC cement assembly
• Complies with ASTM D2466

Compatibility

Compatible with both Schedule 80 and Schedule 40 3/4 inch PVC pipe. Designed for solvent weld assembly using standard PVC primer and cement per the fitting manufacturer recommendations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Depressurize and drain the line fully before cutting into an existing system. Use appropriate PVC primer and solvent cement rated for Schedule 80 fittings, and allow full cure time before pressurizing. Do not exceed the rated PSI or temperature limits of the fitting.

Technical Specifications

• Pipe Size: 3/4 inch
• Material: PVC
• Color: Gray
• Schedule: Schedule 80
• Pressure Rating: 150 psi at 73 degrees F
• Connection Type: Solvent Weld Slip
• Seal Type: Rubber O-Ring
• Standard Compliance: ASTM D2466
• Package Quantity: 25 EA
• Weight: 6.49 pounds

Standard Information

• Brand: HOMEWERKS WORLDWIDE LLC
• Manufacturer Part Number: 512-14-34-34B
