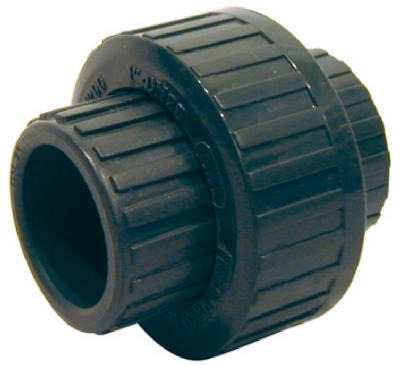

Homewerks Worldwide Llc 512-14-114-114B Pvc Slip Union

Product Description

The HOMEWERKS WORLDWIDE LLC 512-14-114-114B is a 1-1/4 inch gray PVC solvent weld slip union rated for 150 psi at 73 degrees F. Built to heavy-duty Schedule 80 specifications, this union features rubber O-rings for a reliable sealed joint at the union interface. It is designed for use in pressurized PVC piping systems and is installed by licensed plumbers and qualified pipefitters in both residential and light commercial applications. The ASTM D2466 compliance rating confirms it meets established dimensional and performance standards for PVC pressure fittings.

This slip union is suited for pressurized water supply, irrigation, and industrial process piping where a serviceable, break-apart connection is needed. The solvent weld slip ends bond to PVC pipe using standard PVC primer and cement. Because the fitting accommodates both Schedule 40 and Schedule 80 pipe, it works across a range of system configurations without requiring a schedule-matched counterpart on both sides of the joint.

Key Features

• Rated at 150 psi at 73 degrees F for pressurized service
• Heavy-duty Schedule 80 PVC construction for greater wall thickness and impact resistance
• Compatible with both Schedule 40 and Schedule 80 PVC pipe
• Rubber O-ring seal at the union interface for leak-free disassembly
• Solvent weld slip ends for permanent, full-strength bonded joints
• Complies with ASTM D2466 dimensional and performance standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/4 inch PVC pressurized piping systems using either Schedule 40 or Schedule 80 pipe.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or local plumbing code requirements. Depressurize and drain the system completely before cutting into any existing line. Use a dedicated PVC primer and solvent cement rated for the pipe schedule in use, and observe the cure time specified by the cement manufacturer before returning the system to pressure. Tighten the union nut by hand plus no more than a moderate additional turn to avoid cracking the fitting body.

Technical Specifications

• Pipe Size: 1-1/4 inches
• Material: PVC
Color: Gray
• Schedule: Schedule 80
• Pressure Rating: 150 psi at 73 degrees F
• Connection Type: Solvent Weld Slip
• Seal Type: Rubber O-Ring
• Weight: 4.34 pounds
• Certification: ASTM D2466
• Package Quantity: 9 per unit of measure

Standard Information

• Brand: HOMEWERKS WORLDWIDE LLC
• Manufacturer Part Number: 512-14-114-114B
