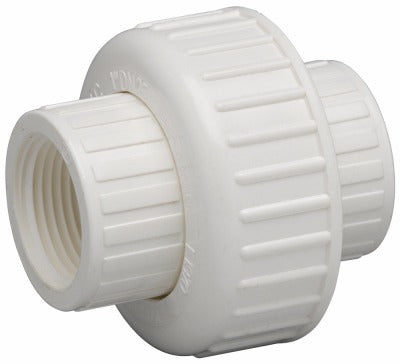

Homewerks Worldwide Llc 511-44-114-114B Pvc Threaded Union

Product Description

The HOMEWERKS WORLDWIDE LLC 511-44-114-114B is a 1-1/4 inch Schedule 40 PVC threaded union designed to join lengths of pipe in cold water plumbing systems. It features female pipe thread connections on both ends and is pressure-rated at 150 psi at 73 degrees F. The union allows two sections of pipe to be connected or disconnected without cutting, making it a practical fitting for service access points. Licensed plumbers and experienced pipefitters install this type of fitting in residential and light commercial cold water supply lines.

This union is suited for cold water distribution applications where a removable connection point is needed in a PVC piping system. The female pipe thread on each end accepts standard threaded pipe, and the solvent weld-compatible body integrates into SCH 40 PVC piping runs. It is appropriate for indoor plumbing, irrigation supply lines, and utility water systems operating within the rated pressure and temperature range. This fitting ships as a package of 4 units.

Key Features

• 1-1/4 inch nominal size with female pipe thread on both ends
• Schedule 40 PVC construction for cold water service
• Pressure-rated at 150 psi at 73 degrees F
• Allows pipe disconnection without cutting for easier servicing
• Complies with ANSI B2.1 and ASTM D2466 standards

Compatibility

Designed as an OEM-style replacement and standard fitting for 1-1/4 inch Schedule 40 PVC threaded cold water piping systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before installing or removing this union. Use appropriate thread sealant or PTFE tape on threaded connections and follow manufacturer torque guidance for PVC fittings to avoid cracking. This fitting is rated for cold water only and should not be used in hot water or pressurized steam applications.

Technical Specifications

• Pipe Size: 1-1/4 inches
• Schedule: SCH 40
• Connection Type: Female Pipe Thread x Female Pipe Thread
• Pressure Rating: 150 psi at 73 degrees F
• Material: PVC
• Package Quantity: 4
• Weight: 2.2 pounds
• Certifications: ANSI B2.1, ASTM D2466

Standard Information

• Brand: HOMEWERKS WORLDWIDE LLC
• Manufacturer Part Number: 511-44-114-114B
