Homewerks Worldwide Llc 126-8-12-12 Push Fit Cpvc Valve

Product Description

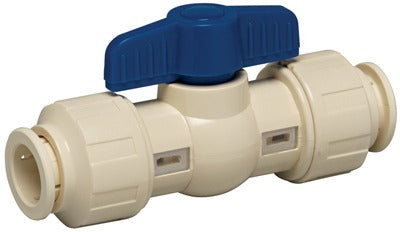

The HOMEWERKS WORLDWIDE LLC 126-8-12-12 is a 1/2-inch push-fit CPVC ball valve designed for solvent-free installation on potable water systems. It accepts CPVC, copper, and PEX tubing without adhesive or solder, making it a fast, clean option for shut-off service in both hot and cold water lines. The valve operates with a quarter-turn handle and is pressure-rated at 150 psi at 73 degrees F and 100 psi at 180 degrees F. It meets ANSI and NSF 61-9 standards, confirming it is approved for contact with drinking water. Plumbers and pipefitters install this valve in residential and light commercial water distribution systems.

This valve is suited for new construction and retrofit applications where solvent-free connections are preferred or required. The push-fit design allows installation in tight spaces without a torch, solder, or primer. It is commonly used on branch lines, fixture supply runs, and service shut-offs where CPVC, copper, or PEX piping is already in place. The quarter-turn ball operation provides a clear open or closed position, which is useful during inspection or emergency shut-off scenarios.

Key Features

• Push-fit connection requires no solvents, solder, or primer for installation
• Compatible with CPVC, copper, and PEX tubing in a single fitting design
• Quarter-turn ball operation for positive open and closed indication
• Rated 150 psi at 73 degrees F and 100 psi at 180 degrees F for hot and cold service
• Meets ANSI and NSF 61-9 standards for use in potable water systems

Compatibility

Designed for use with 1/2-inch CPVC, copper, or PEX tubing in hot and cold potable water distribution systems.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters. Shut off the main water supply and depressurize the line before installing this valve. Ensure the pipe end is cut cleanly and deburred before inserting into the push-fit fitting to achieve a proper seal. Follow local plumbing codes, including applicable IPC or state-adopted standards, for valve placement and service requirements.

Technical Specifications

• Connection Size: 1/2 inch
• Connection Type: Push Fit
• Valve Type: Ball Valve
• Operation: Quarter Turn
• Pressure Rating (73 degrees F): 150 psi
• Pressure Rating (180 degrees F): 100 psi
• Compatible Pipe Materials: CPVC, Copper, PEX
• Certifications: ANSI, NSF 61-9
• Weight: 1.68 pounds
• Package Quantity: 8

Standard Information

• Brand: HOMEWERKS WORLDWIDE LLC
• Manufacturer Part Number: 126-8-12-12
