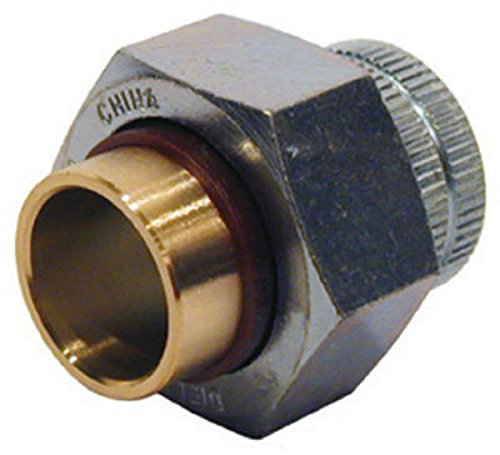

Homewerks Worldwide 520-01-1-1B-Z Dielectric Union FIP x Solder 1 Inch Copper

Product Description

The Homewerks Worldwide Dielectric Union model 520-01-1-1B-Z features a robust design to prevent electrolysis or galvanic action between dissimilar materials in plumbing systems. Ideal for applications requiring the merging of a female iron pipe thread to a copper solder joint.

• Rated for 250 PSI at 180 degrees Fahrenheit
• Complies with ANSI/NSF 61 standards
• Lead content compliance under .25% for wetted surfaces

Product Highlights

Constructed with premium materials including a steel body, EPDM washer, brass adapter, PSU insulator sleeve, and a steel nut. This union is designed for durability and reliability in high-pressure environments.

Product Information

Standard Information

• Connection Type: Female Iron Pipe Thread x Copper Solder Joint
• Material: Steel, Brass, EPDM, PSU

Technical Specifications

• Pressure Rating: 250 PSI
• Temperature Rating: 180 degrees Fahrenheit
• Size: 1 inch x 1 inch
• Lead Compliance: Meets .25% lead content regulations
