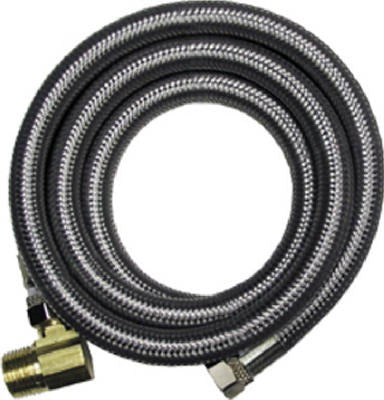

Homewerks 7223-60-12-6E Dishwasher Connector 60 Inch Ss

Product Description

The HOMEWERKS WORLDWIDE LLC 7223-60-12-6E is a stainless steel dishwasher supply connector designed for standard residential dishwasher water supply installations. The hose measures 60 inches in length and connects a 3/8 inch compression supply stop to a 1/2 inch Female Iron Pipe Thread (FIP) inlet. The braided stainless steel construction provides durability and resistance to corrosion in under-sink environments. The kit includes a 3/8 inch Male Compression x 3/8 inch Male Iron Pipe Thread elbow and a 3/8 inch Male Compression x 3/4 inch Garden Hose elbow, giving installers the fittings needed to adapt to common connection configurations without sourcing additional hardware.

This connector is suited for residential kitchen installations where a dishwasher must be tied into an existing 3/8 inch compression angle stop or shut-off valve. The 60 inch length provides enough reach for standard cabinet configurations. The included elbow fittings accommodate both iron pipe thread dishwasher inlets and garden hose-threaded inlets, making the assembly adaptable to a range of standard dishwasher connection types. Licensed plumbers and experienced installers will appreciate having the adapters pre-packaged with the hose.

Key Features

• 60 inch stainless steel braided dishwasher supply hose
• 3/8 inch Compression x 1/2 inch FIP end connections
• Includes 3/8 inch Male Compression x 3/8 inch Male Iron Pipe Thread elbow
• Includes 3/8 inch Male Compression x 3/4 inch Garden Hose elbow
• Stainless steel construction for corrosion resistance in under-sink applications

Compatibility

Designed as a replacement or new-installation supply connector for standard residential dishwashers with 3/8 inch compression supply stops and 1/2 inch FIP or compatible inlet connections.

Installation Notes

Installation is typically performed by a licensed plumber or qualified tradesperson. Shut off the water supply at the angle stop or main valve before disconnecting or connecting any supply lines. Hand-tighten fittings first, then snug with a wrench — avoid over-tightening compression fittings, which can crack ferrules or distort threads. Verify there are no kinks in the hose after routing and check all connections for leaks before returning the dishwasher to service.

Technical Specifications

• Hose Length: 60 inches
• Inlet Connection: 3/8 inch Compression
• Outlet Connection: 1/2 inch Female Iron Pipe Thread (FIP)
• Included Elbow 1: 3/8 inch Male Compression x 3/8 inch Male Iron Pipe Thread
• Included Elbow 2: 3/8 inch Male Compression x 3/4 inch Garden Hose
• Material: Stainless Steel
• Weight: 7.1 pounds
• Package Quantity: 10 per unit of measure

Standard Information

• Brand: HOMEWERKS WORLDWIDE LLC
• Manufacturer Part Number: 7223-60-12-6E
