Homewerks 7223-30-38-2 Ss Faucet Connector 3/8C X 1/2FIP 30in

Product Description

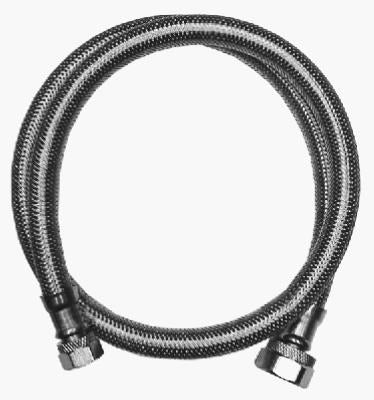

The HOMEWERKS WORLDWIDE LLC 7223-30-38-2 is a stainless steel faucet supply connector designed to link a faucet or fixture shutoff valve to a faucet body in residential and light commercial plumbing installations. The connector runs 30 inches in length and transitions from a 3/8 inch compression inlet to a 1/2 inch Female Iron Pipe (FIP) outlet. The stainless steel braided construction resists corrosion and handles the pressure demands of standard supply lines. Licensed plumbers and experienced DIYers install this type of connector during faucet replacements, vanity installs, and kitchen or bathroom remodels.

This connector is suited for under-sink supply line applications where a 3/8 inch compression fitting at the shutoff valve and a 1/2 inch FIP connection at the faucet tail piece are required. The 30 inch length accommodates standard cabinet depths and provides enough slack for clean routing without kinking. It is commonly used in residential bathroom and kitchen faucet installations as well as light commercial lavatory work where code-compliant flexible supply connectors are permitted.

Key Features

• 30 inch length suits standard under-sink cabinet depths
• 3/8 inch compression x 1/2 inch FIP end configuration for direct shutoff-to-faucet connection
• Stainless steel construction for corrosion resistance and long service life
• Flexible design allows clean routing and reduces strain on fittings
• Sold individually; package quantity of 24 units per case for stocking

Compatibility

Designed as an OEM-style replacement or new-installation supply connector for faucets requiring a 3/8 inch compression shutoff valve connection and a 1/2 inch FIP faucet inlet.

Installation Notes

A licensed plumber or qualified installer should shut off the water supply at the main or the dedicated angle stop before removing any existing supply line. Hand-tighten the compression nut first, then snug with an adjustable wrench — do not overtighten, as excessive force can crack the compression seat or distort the ferrule. After installation, slowly restore water pressure and check both end connections for leaks before closing the cabinet. Local plumbing codes, including the IPC, may specify requirements for flexible connector use in supply line applications.

Technical Specifications

• Inlet Connection: 3/8 inches Compression
• Outlet Connection: 1/2 inches Female Iron Pipe (FIP)
• Length: 30 inches
• Material: Stainless Steel
• Weight: 9.2 pounds (per case of 24)
• Package Quantity: 24 per case
• Unit of Measure: EA

Standard Information

• Brand: HOMEWERKS WORLDWIDE LLC
• Manufacturer Part Number: 7223-30-38-2
