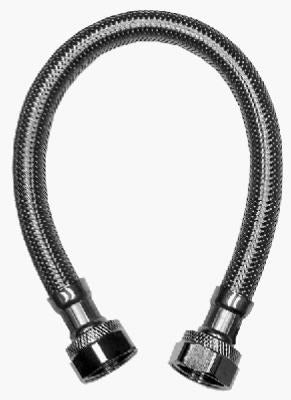

Homewerks 7223-12-12-1 Faucet Connector 1/2 Fip X 1/2 Fip 12 in

Product Description

The HOMEWERKS WORLDWIDE LLC 7223-12-12-1 is a stainless steel, lead-free faucet connector designed for residential and light commercial plumbing installations. It features a 1/2-inch Female Iron Pipe (FIP) connection on each end and measures 12 inches in length, making it a direct-fit supply line for faucets, valves, and fixtures. The wetted surfaces of this connector contain less than 0.25 percent lead by weight, meeting AB1953 California and VT S152 Vermont low-lead restrictions. Licensed plumbers and qualified installers use this connector to complete potable water supply runs where a flexible, corrosion-resistant line is required.

This connector is suited for use in residential kitchens, bathrooms, and utility rooms where a 1/2-inch FIP supply line is needed to connect faucets or shutoff valves to the water supply. The 12-inch length accommodates standard cabinet depths and typical rough-in configurations. Its stainless steel construction resists corrosion in both hot and cold water applications, and the lead-free designation makes it appropriate for use in drinking water systems subject to state and federal low-lead statutes.

Key Features

• 1/2-inch FIP x 1/2-inch FIP connections on both ends for standard threaded fittings
• 12-inch overall length suits common under-sink and fixture installations
• Stainless steel construction provides corrosion resistance for potable water service
• Lead-free rated — wetted surfaces contain less than 0.25 percent lead by weight
• Compliant with AB1953 California and VT S152 Vermont low-lead restrictions

Compatibility

Designed as an OEM-style replacement or new-installation supply connector for residential and light commercial plumbing fixtures requiring a 1/2-inch FIP threaded supply line connection.

Installation Notes

Installation should be performed by a licensed plumber or qualified tradesperson in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and relieve line pressure before removing the existing connector or making new connections. Use thread sealant tape or approved pipe compound on all threaded FIP connections and hand-tighten before applying a final wrench turn — do not overtighten stainless braided lines. Inspect for leaks at both ends after restoring water pressure.

Technical Specifications

• Connection Type: 1/2 inch FIP x 1/2 inch FIP
• Length: 12 inches
• Material: Stainless Steel
• Lead Content (Wetted Surface): Less than 0.25 percent by weight
• Certifications: AB1953 California Low Lead, VT S152 Vermont Low Lead
• Weight: 4 pounds
• Package Quantity: 20 per unit of measure

Standard Information

• Brand: HOMEWERKS WORLDWIDE LLC
• Manufacturer Part Number: 7223-12-12-1
