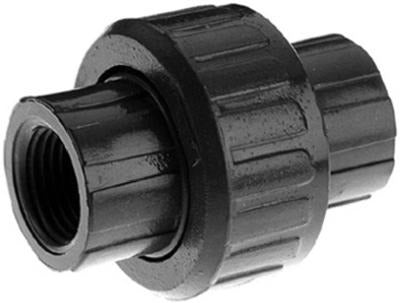

Homewerks 512-44-2-2B 2 Inch Pvc Threaded Union Sch 80

Product Description

The HOMEWERKS WORLDWIDE LLC 512-44-2-2B is a 2-inch gray PVC threaded union built to Schedule 80 heavy-duty standards. It features rubber O-rings for a reliable, leak-resistant seal at threaded connections. Rated at 150 psi at 73 degrees F, this union is suitable for moderate-pressure piping systems. Licensed plumbers and pipe fitters install this fitting in water treatment, chemical handling, irrigation, and industrial process lines where a break-union connection is needed for future serviceability.

This union is designed for use in both residential and commercial PVC piping applications. Its Schedule 80 construction makes it appropriate for systems requiring greater wall thickness and pressure handling than standard Schedule 40 fittings. Because it accepts either Schedule 40 or Schedule 80 pipe, it offers flexibility during installation or repair without requiring a dedicated fitting for each pipe class. Typical applications include pump discharge lines, filter manifolds, and chemical feed systems.

Key Features

• Rated at 150 psi at 73 degrees F for moderate-pressure service
• Heavy-duty Schedule 80 PVC construction with increased wall thickness
• Rubber O-ring seal provides a reliable, leak-resistant union joint
• Compatible with both Schedule 40 and Schedule 80 PVC pipe
• Complies with ANSI B2.1 threaded pipe standards
• Gray PVC construction resistant to corrosion and many chemicals

Compatibility

Designed for use with Schedule 40 or Schedule 80 PVC pipe at 2-inch nominal diameter, per ANSI B2.1 threading specifications.

Installation Notes

Installation should be performed by a licensed plumber following applicable IPC and local plumbing codes. Depressurize and drain the piping system completely before removing or installing any union fitting. Use thread sealant or PTFE tape rated for PVC and plastic fittings — do not overtighten threaded connections, as PVC threads can crack under excessive torque. Inspect O-ring seating before assembly to ensure a proper seal.

Technical Specifications

• Pipe Size: 2 inches
• Material: PVC (Gray)
• Schedule: Schedule 80
• Connection Type: Threaded
• Pressure Rating: 150 psi at 73 degrees F
• Seal Type: Rubber O-Ring
• Standard: ANSI B2.1
• Weight: 3.81 pounds
• Package Quantity: 4 each

Standard Information

• Brand: HOMEWERKS WORLDWIDE LLC
• Manufacturer Part Number: 512-44-2-2B
