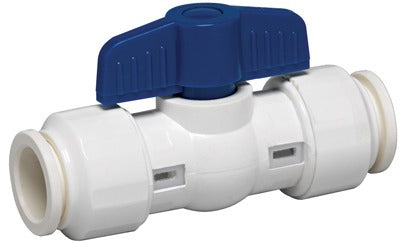

Homewerks 117-8-12-12 1/2 Inch Push Fit Pvc Ball Valve

Product Description

The HOMEWERKS WORLDWIDE LLC 117-8-12-12 is a 1/2-inch push-fit PVC ball valve designed for solvent-free installation on both Schedule 40 and Schedule 80 pipe. It delivers quarter-turn shutoff operation and is rated at 150 psi at 73 degrees F. The push-fit design eliminates the need for solvent cement, primers, or threading tools, making it a practical choice for plumbers and pipe fitters working on repairs, new construction, or retrofit applications. NSF 61-9 and ANSI certifications confirm it meets drinking water safety and dimensional standards.

This valve is suited for residential and light commercial plumbing systems where a reliable, code-compliant shutoff is needed on 1/2-inch PVC lines. The compatibility with both Schedule 40 and Schedule 80 pipe gives installers flexibility across a range of system pressures and wall thicknesses. Quarter-turn operation provides fast, positive open and close without the need for special wrenches. It is typically installed by licensed plumbers on cold water supply, irrigation, and general fluid control lines.

Key Features

• Push-fit connection eliminates solvent cement and primer for faster installation
• Fits both Schedule 40 and Schedule 80 PVC pipe
• Quarter-turn ball valve operation for quick shutoff
• Rated 150 psi at 73 degrees F
• NSF 61-9 certified for use on potable water systems
• Meets ANSI dimensional standards

Compatibility

Designed for use with 1/2-inch Schedule 40 and Schedule 80 PVC pipe without solvents. No additional compatible model numbers or system families were specified in the product data.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and fully depressurize the line before inserting the pipe into the push-fit connection. Ensure pipe ends are cleanly cut and deburred for a proper seal. No solvent cement or primers are required or recommended for this fitting type.

Technical Specifications

• Connection Type: Push Fit
• Pipe Size: 1/2 inch
• Material: PVC
• Valve Type: Ball Valve
• Pressure Rating: 150 psi at 73 degrees F
• Compatible Pipe Schedule: Schedule 40 and Schedule 80
• Operation: Quarter Turn
• Certifications: ANSI, NSF 61-9
• Package Quantity: 10 EA
• Weight: 2.75 pounds

Standard Information

• Brand: HOMEWERKS WORLDWIDE LLC
• Manufacturer Part Number: 117-8-12-12
