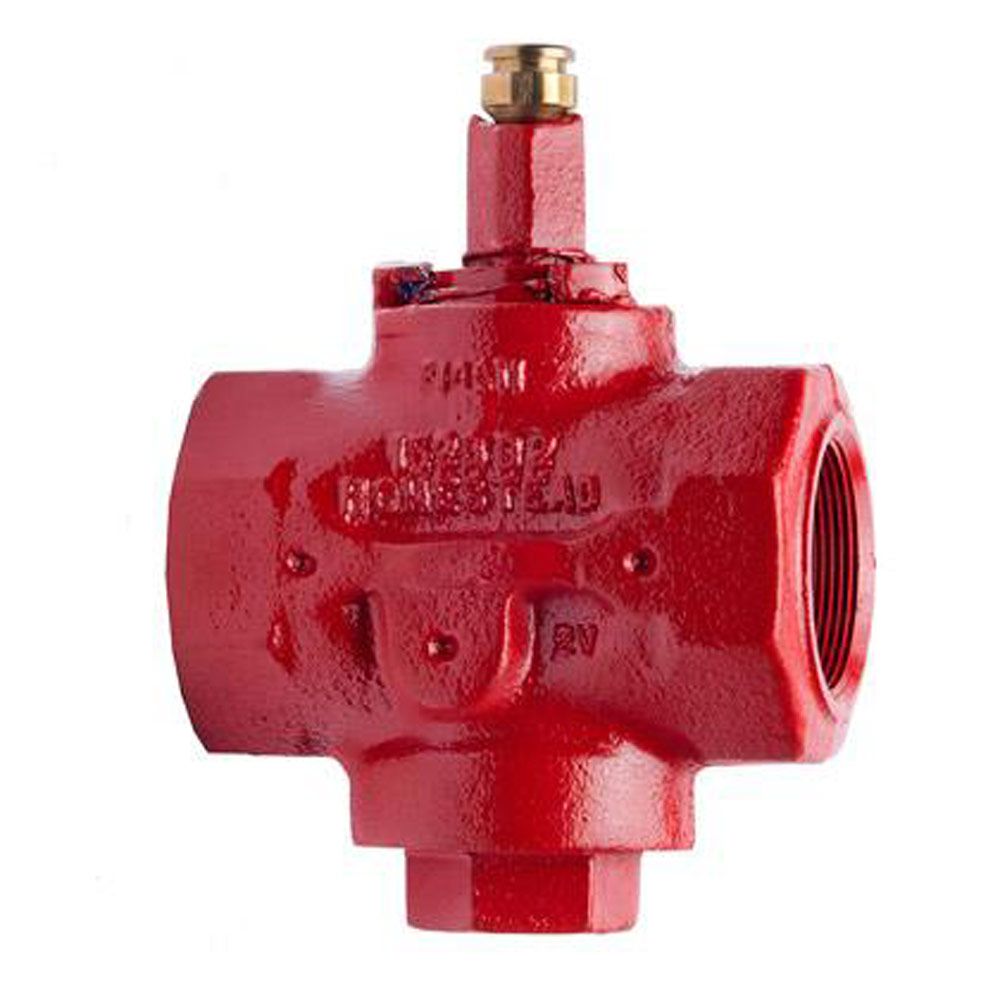

Homestead 0601009006 Homestead 601 3/4 Inch Lubricated Plug Valve Full Port

Product Description

The Homestead 601 3/4 inch lubricated plug valve is designed for steam and hot water boilers. This model, with MPN 0601009006, provides efficient control over fluid flow. It features a straight pattern and does not come with a handle. The valve is rated for 150 psi steam, 200 psi water, and can function at temperatures up to 275 degrees Fahrenheit.

• Made from durable iron body.
• Compatible with RE1005 handle and RE1015 lube sticks.
• Engineered for longer service life due to its pressurized lubrication system.

Product Highlights

This valve is ideal for applications in hot water and steam systems. Its quarter-turn mechanism ensures ease of operation and maintenance-free adjustments.

Product Information

Standard Information

• Brand: Homestead
• MPN: 0601009006

Technical Specifications

• Model: 601
• Valve Size: 3/4 inch
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Iron Body
• Valve Application: Hot Water, Steam
• Max Pressure: 150 psi WSP, 200 psi WOG
• Weight: 4.25 lbs
