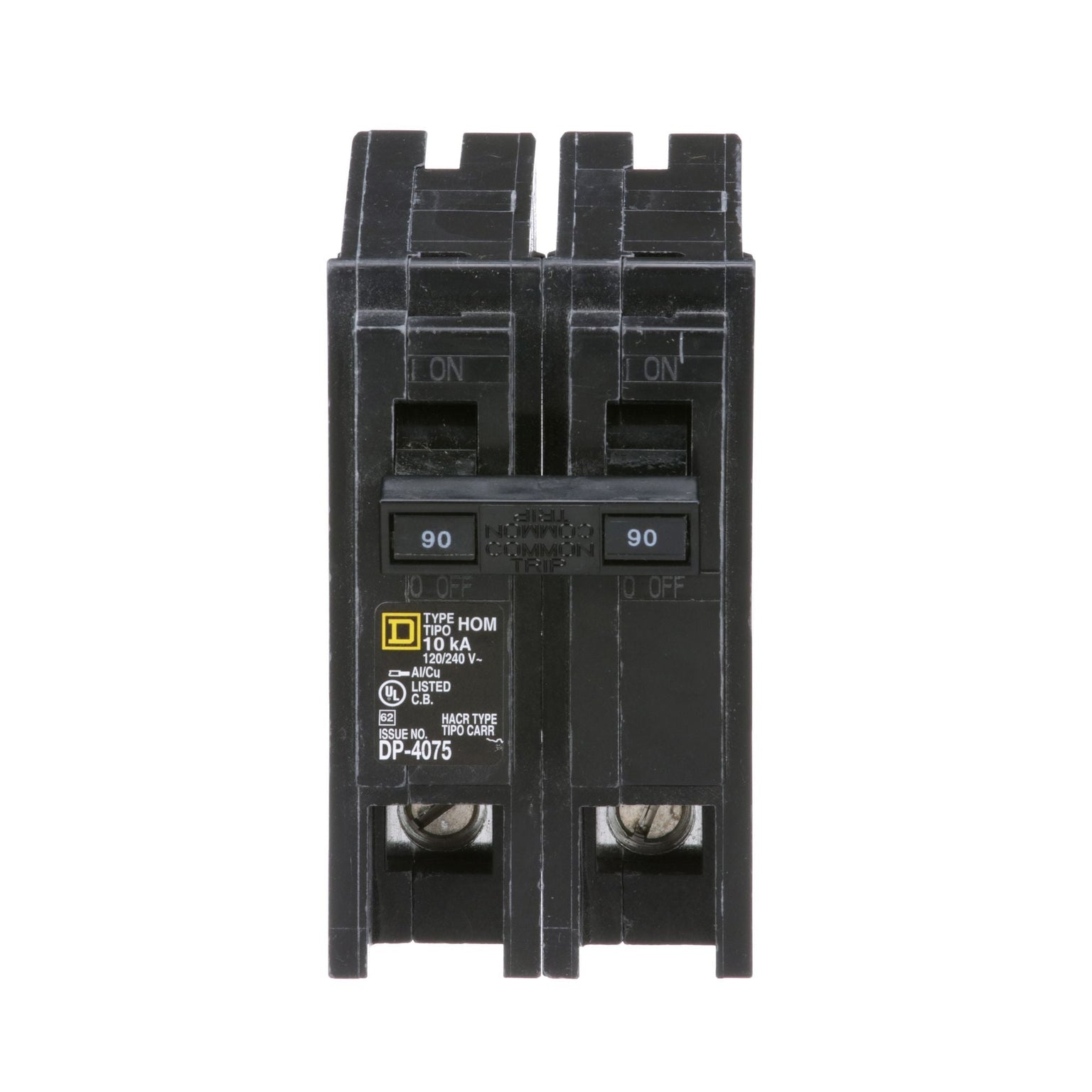

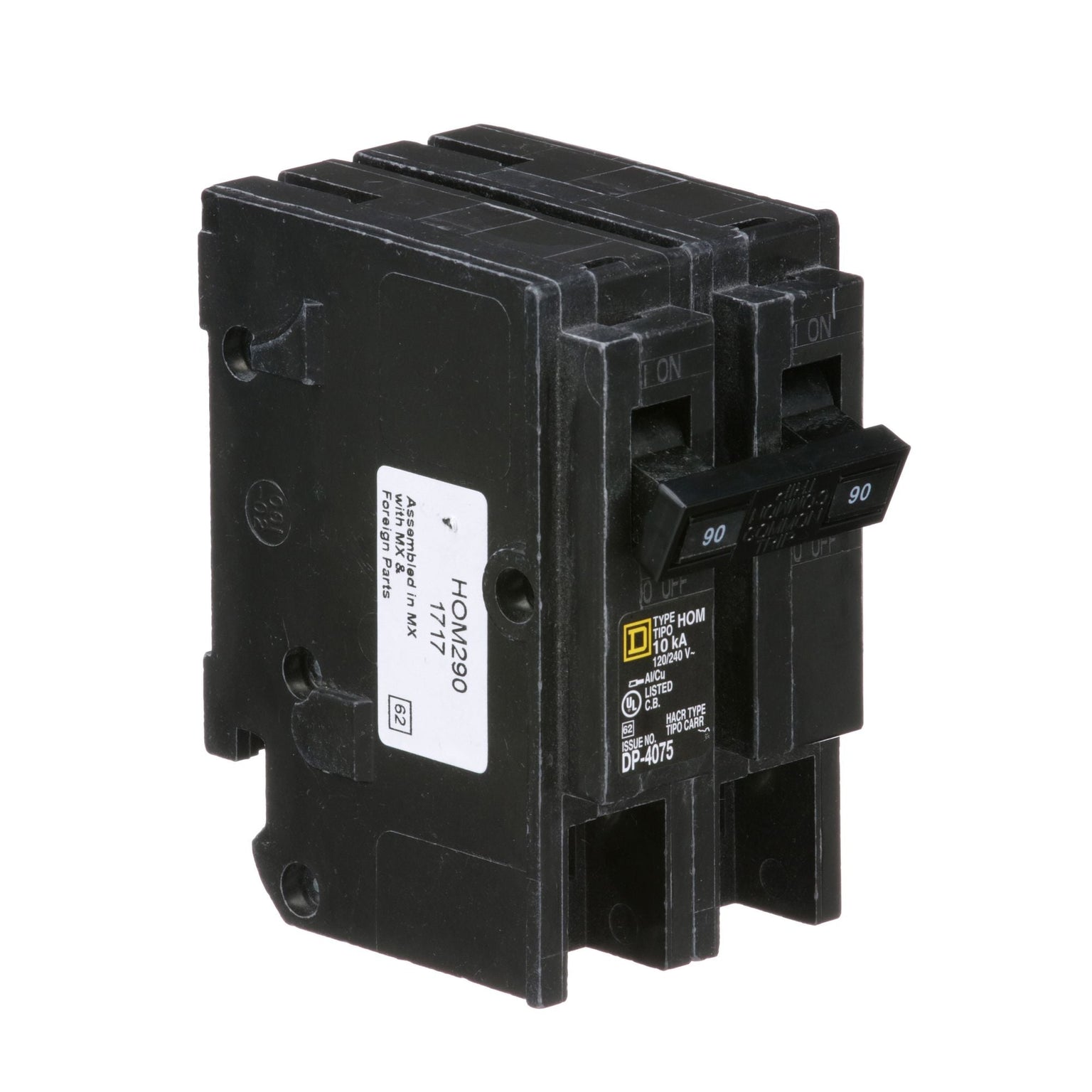

HOMELINE NAB SQD HOM290 Circuit Breaker 90A 120/240V

Product Description

The HOMELINE NAB SQD HOM290 is a miniature circuit breaker designed for fast installation and reliable circuit protection. This two-pole circuit breaker fits into Homeline load centers, providing effective protection for standard circuits and is HACR rated for heating, air conditioning, and refrigeration applications.

• Current rating of ninety amperes at one hundred twenty to two hundred forty volts AC.

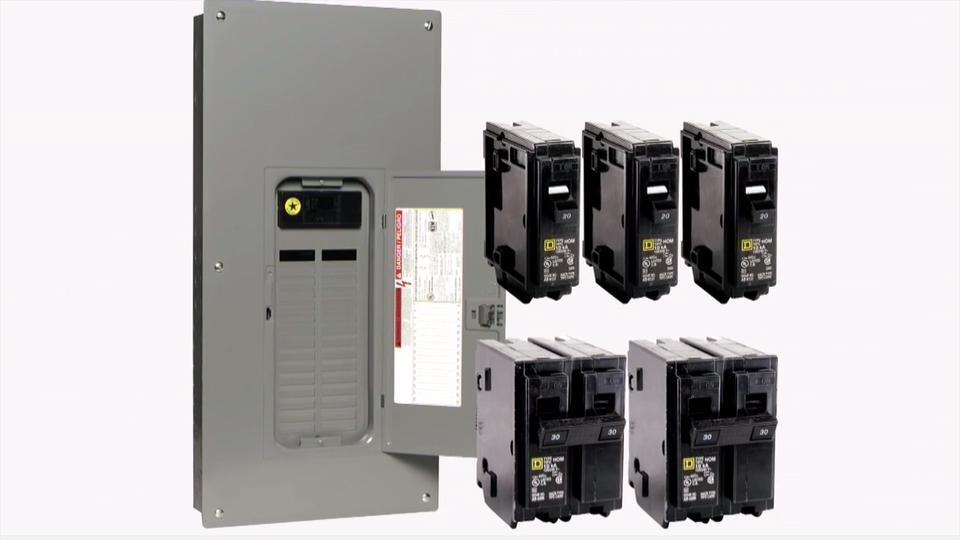

• Plug-in mounting for easy installation in Homeline load centers.
• Ten kiloamp breaking capacity for enhanced performance.

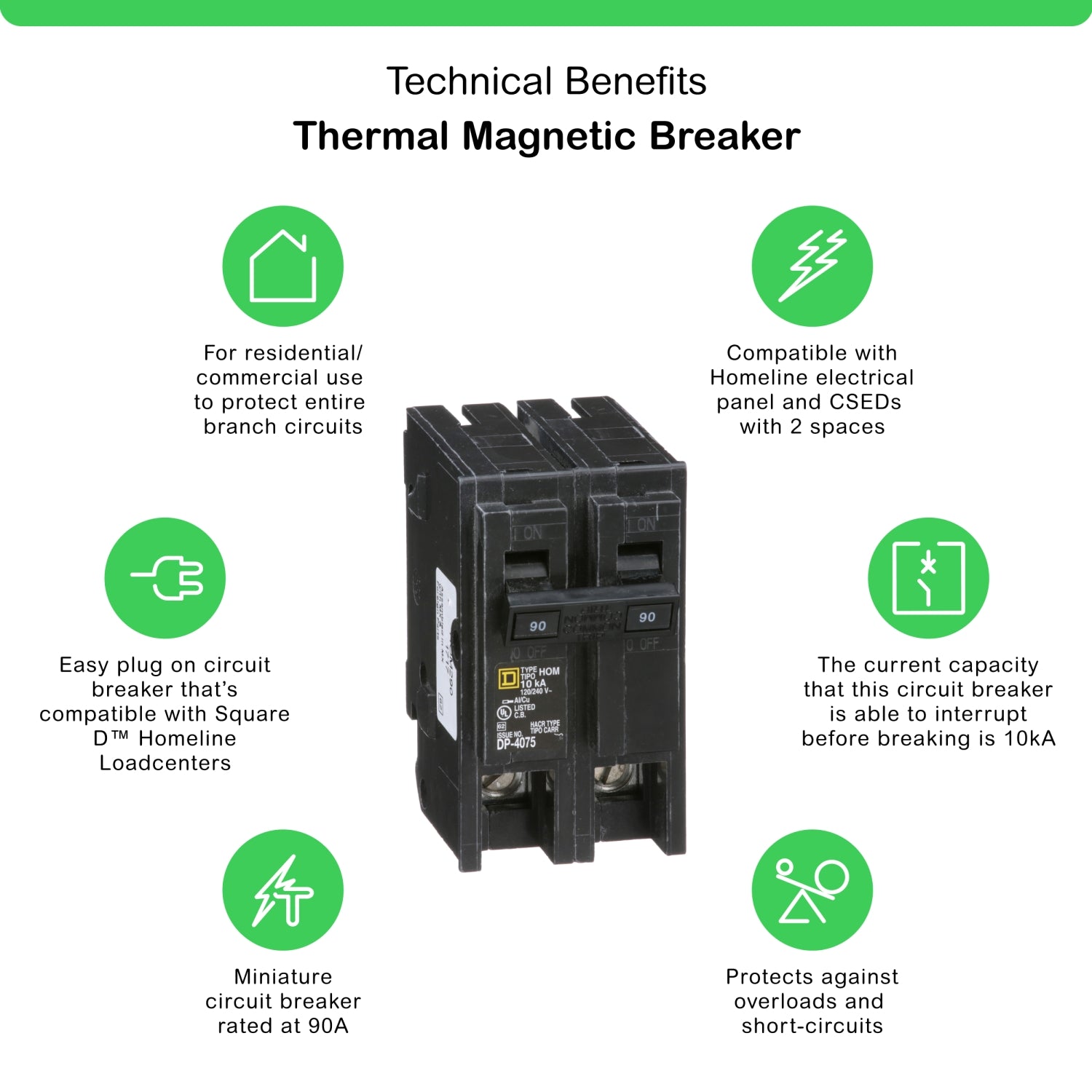

Product Highlights

This circuit breaker combines simplicity with functionality, designed specifically for efficient use in various applications including electrical circuits for HVAC systems.

Product Information

Standard Information

• Product: Miniature circuit-breaker
• Brand: HOMELINE

Technical Specifications

• Range: Homeline
• Current Rating: 90 A
• Voltage Rating: 120/240 V AC

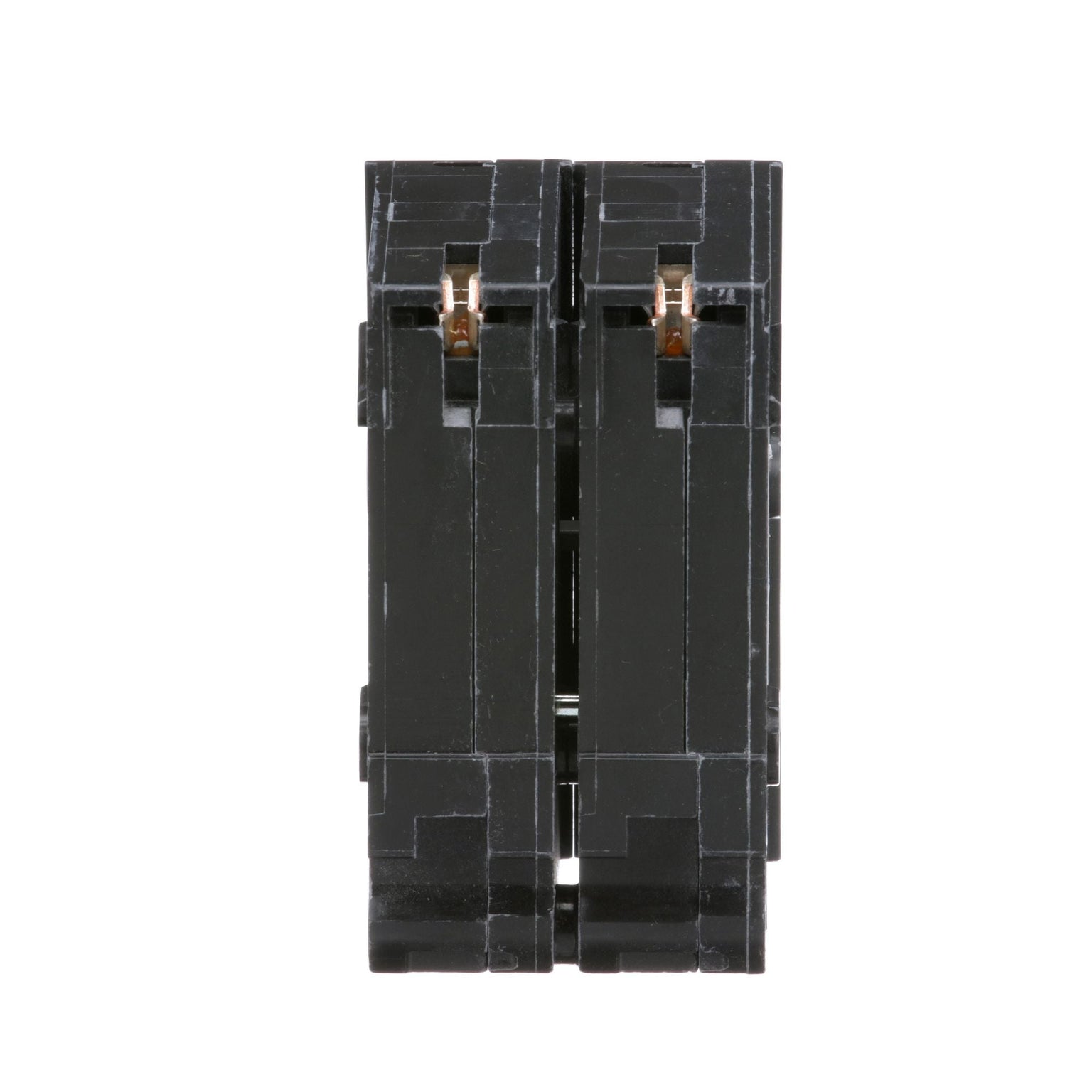

• Mounting Type: Plug-in
• Number of Poles: 2P
• Short Circuit Current Rating: 10 kA
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Wire Size: 4 AWG to 2/0 AWG (copper/aluminum)
• Tightening Torque: 42.5 lbf.in (4.8 N.m)
• Height: 3.13 in
• Width: 2 in
• Depth: 2.98 in
• Ambient Air Temperature for Operation: 104 °F (40 °C)
