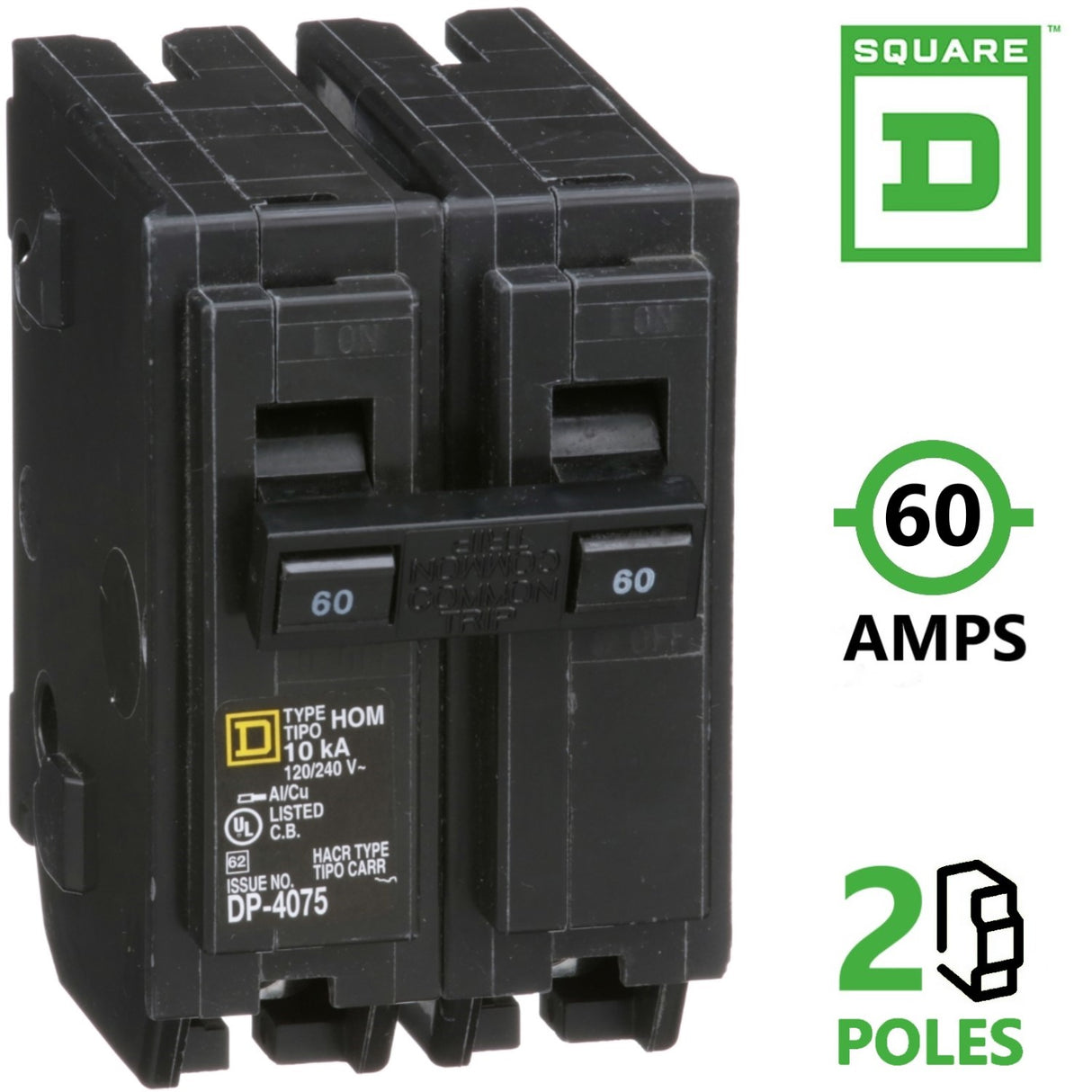

HOMELINE NAB SQD HOM260 60A 2-Pole Circuit Breaker

Product Description

The HOMELINE NAB SQD HOM260 is a two-pole, sixty amp miniature circuit breaker suitable for residential electrical systems. This device ensures effective overload and short-circuit protection to maintain the integrity of electrical systems. It features a design for quick installation into Homeline load centers. The circuit breaker is compliant and well-suited for heating, air conditioning, and refrigeration (HACR) applications.

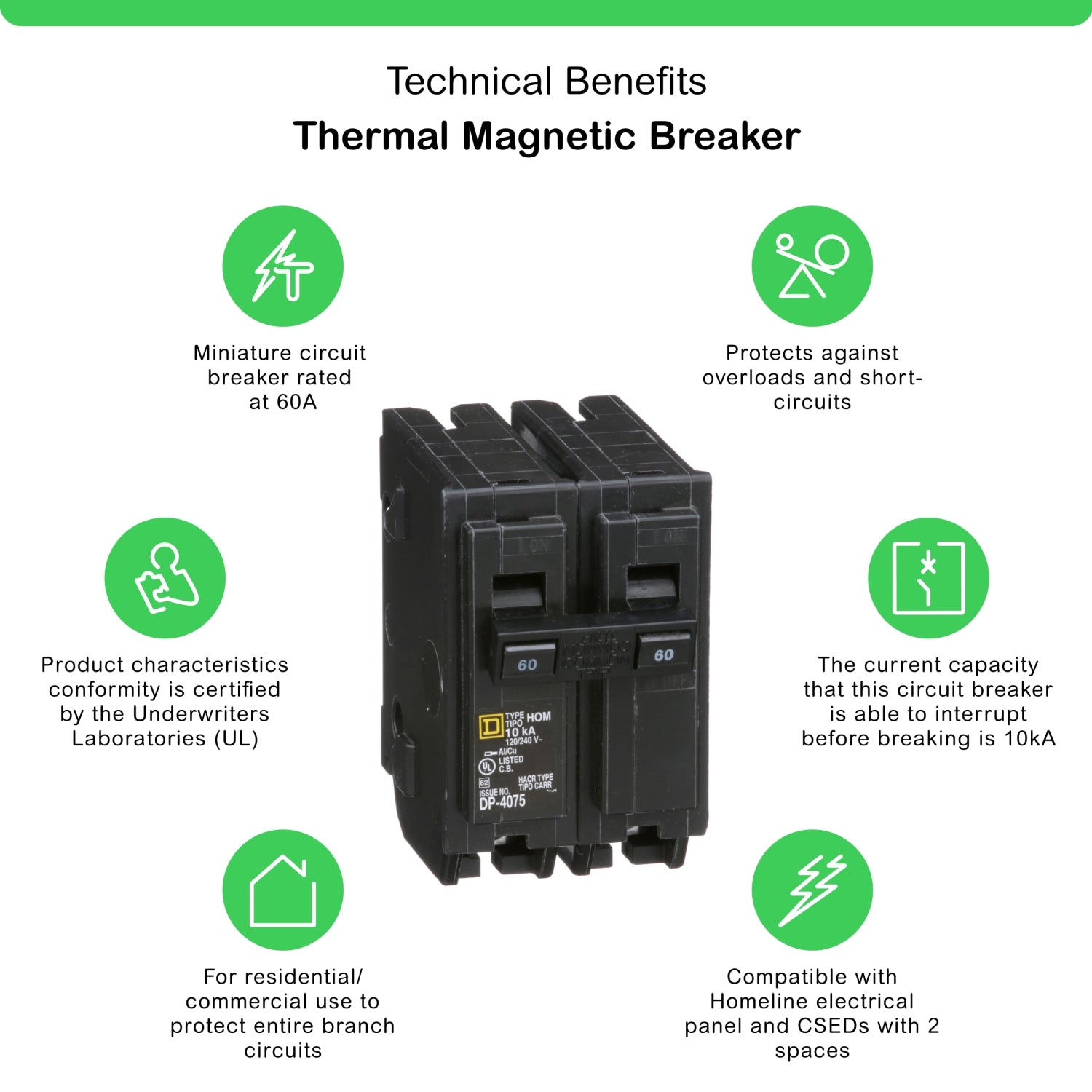

• Provides overload and short-circuit protection.
• Designed for fast installation.
• Compatible with Homeline load centers.

Product Highlights

This circuit breaker is engineered to deliver reliable performance and protect your electrical systems efficiently.

Product Information

Standard Information

• Brand: HOMELINE
• MPN: NAB SQD HOM260

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Mounting Type: Plug-in
• Wire Size: 8 to 2 AWG
• Circuit Breaker Type: Standard
• Frequency: 50/60 Hz
• Connection Type: Screw Terminal
