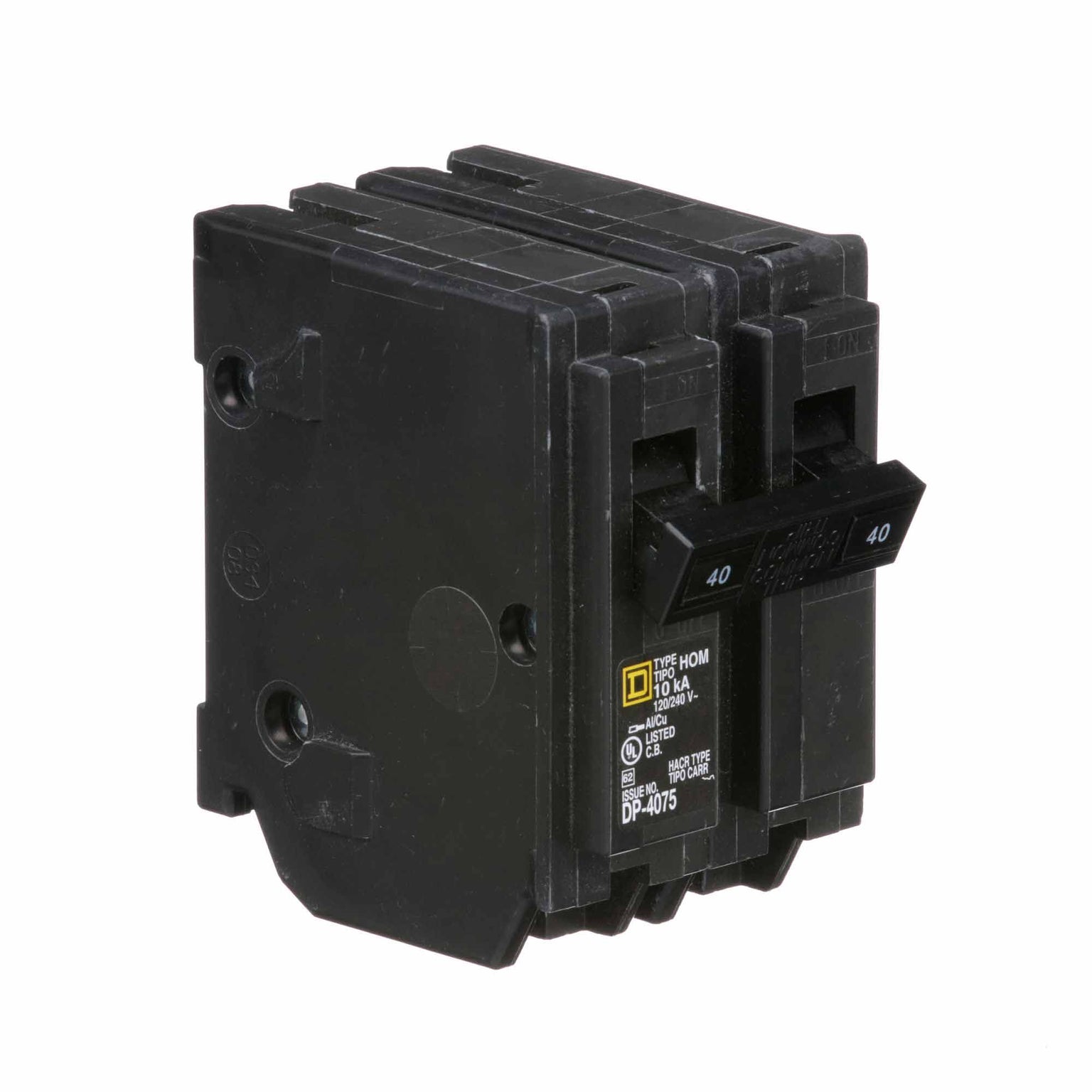

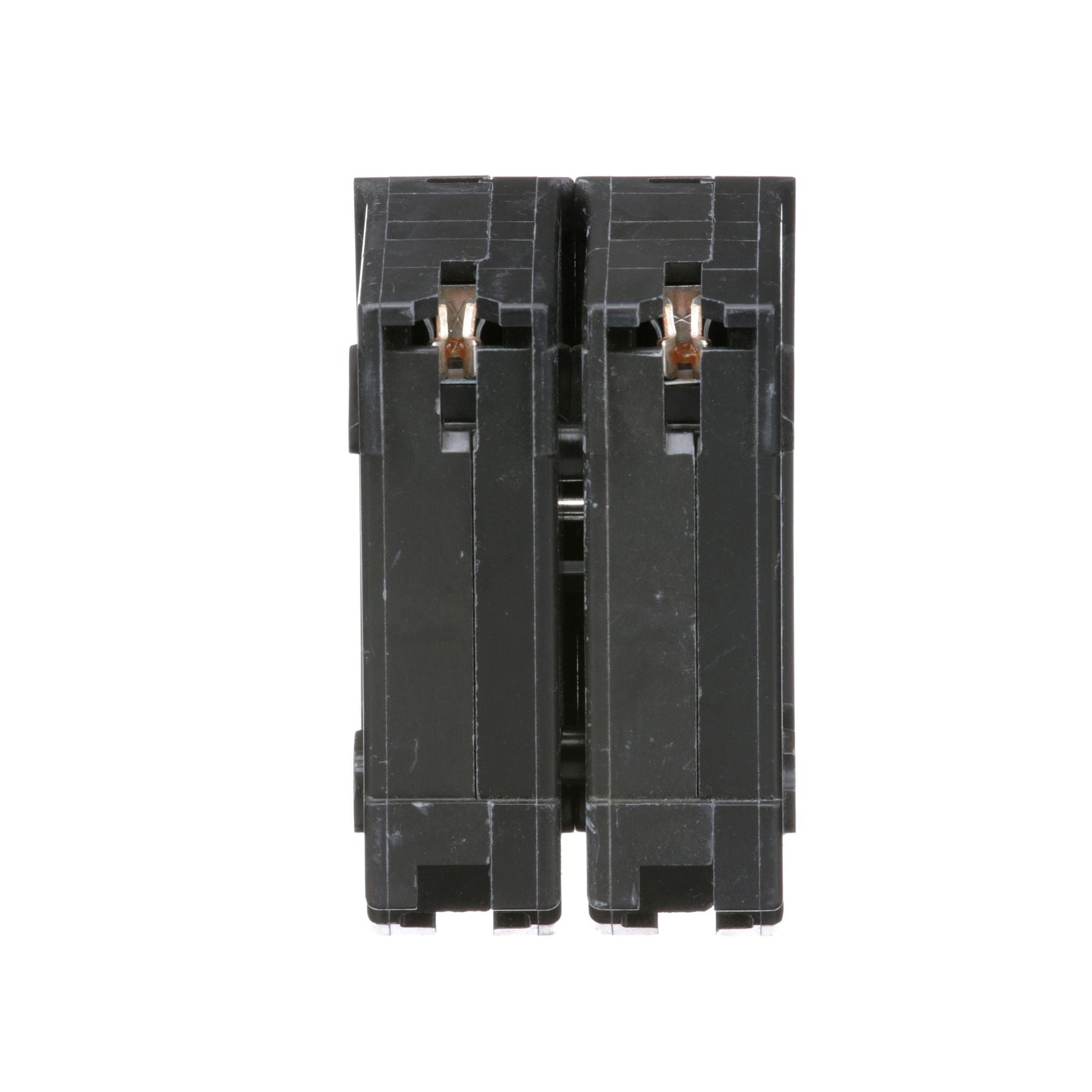

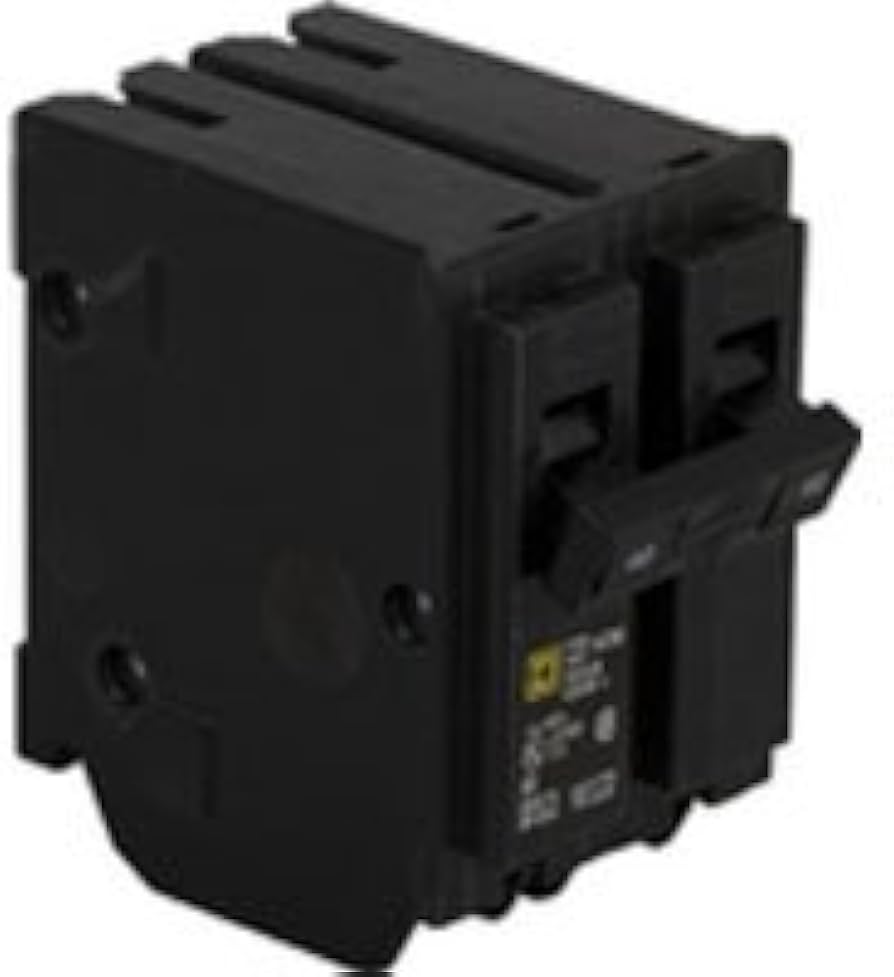

HOMELINE NAB SQD HOM240 40A 2-Pole Miniature Circuit Breaker

Product Description

The HOMELINE NAB SQD HOM240 is a 40 amp, 2-pole miniature circuit breaker essential for residential electrical systems. This breaker offers overload and short-circuit protection when paired with HOMELINE load centers and CSED devices. It features a HACR rating and a breaking capacity of ten kiloamperes. The electrical connections utilize box lugs that accept copper or aluminum wire sizes between eight AWG and two AWG. The thermal-magnetic trip function enhances reliability and safety. This unit is UL Listed and ANSI certified.

• Provides overload and short-circuit protection.
• Compatible with Homeline load centers and CSED devices.
• Plug-in mounting and box lug connections.

Product Highlights

This circuit breaker is designed for high performance and safe operation in residential applications.

Product Information

Standard Information

• Brand: HOMELINE
• MPN: NAB SQD HOM240

Technical Specifications

• Current Rating: 40 A
• Voltage Rating: 120/240 V AC
• Mounting Type: Plug-in
• Number of Poles: 2P
• Short Circuit Current Rating: 10 kA
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Wire Size: 8 AWG to 2 AWG (Aluminum/Copper)
• Height: 3.13 inches (79.50 mm)
• Width: 2 inches (50.8 mm)
• Depth: 2.98 inches (75.69 mm)
