Homac SA-4/0-48 AL 1HOLE LUG STR DIE 4/0

Product Description

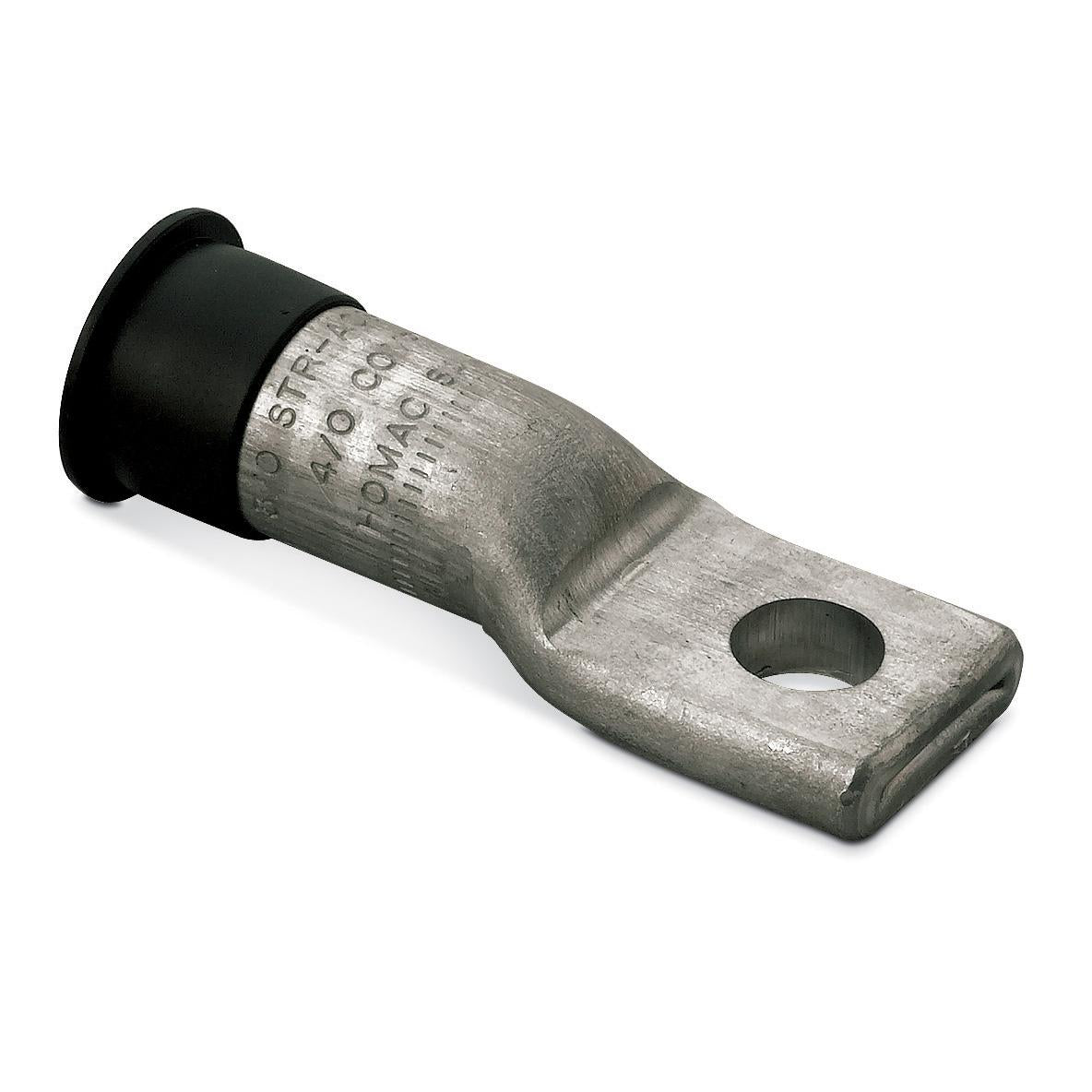

Homac offers the SA-4/0-48, an aluminum one-hole lug designed for reliable electrical connections. This lug accommodates wire ranges from four/0 stranded to ACSR, covering sizes up to three hundred kcmil. Installation requires commonly used dies like TX, 76, 249, 840, 845, 11A, and CSA 24. It measures three and three eights inches in length, with a pad that is one and seven thirty-seconds inches wide, one and five sixteenths inches long, and nineteen sixty-fourths inches thick, featuring a hole diameter of seventeen thirty-seconds inches. The barrel size is one and five sixteenths inches. The product includes an oxide inhibitor and comes equipped with a pink cap, designed for use with half-inch bolts.

• Designed for general applications
• Uses a compression connection for aluminum and copper conductors
• Marked for easy identification of sizes and dies

Product Highlights

Durable AL-CU design suitable for various conductor types enhances installation effectiveness and saves time.

Product Information

Standard Information

• Brand: Homac
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Type: 1-Hole
• Material: Aluminum
• Wire Size: 4/0 AWG to 250 kcmil
• Conductor Type: ACSR/Copper
• Die Code: TX, 76, 249, 840, 845, 11A, CSA 24
• Stud Size: 1/2 in
• Overall Length: 3-3/8 in
• Barrel Size: 1-5/16 in
• Mounting Hole Size: 17/32 in Dia
• Pad Size: 1-7/32 in W x 1-5/16 in L x 19/64 in THK
