HOMAC DYU-M Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits

Product Description

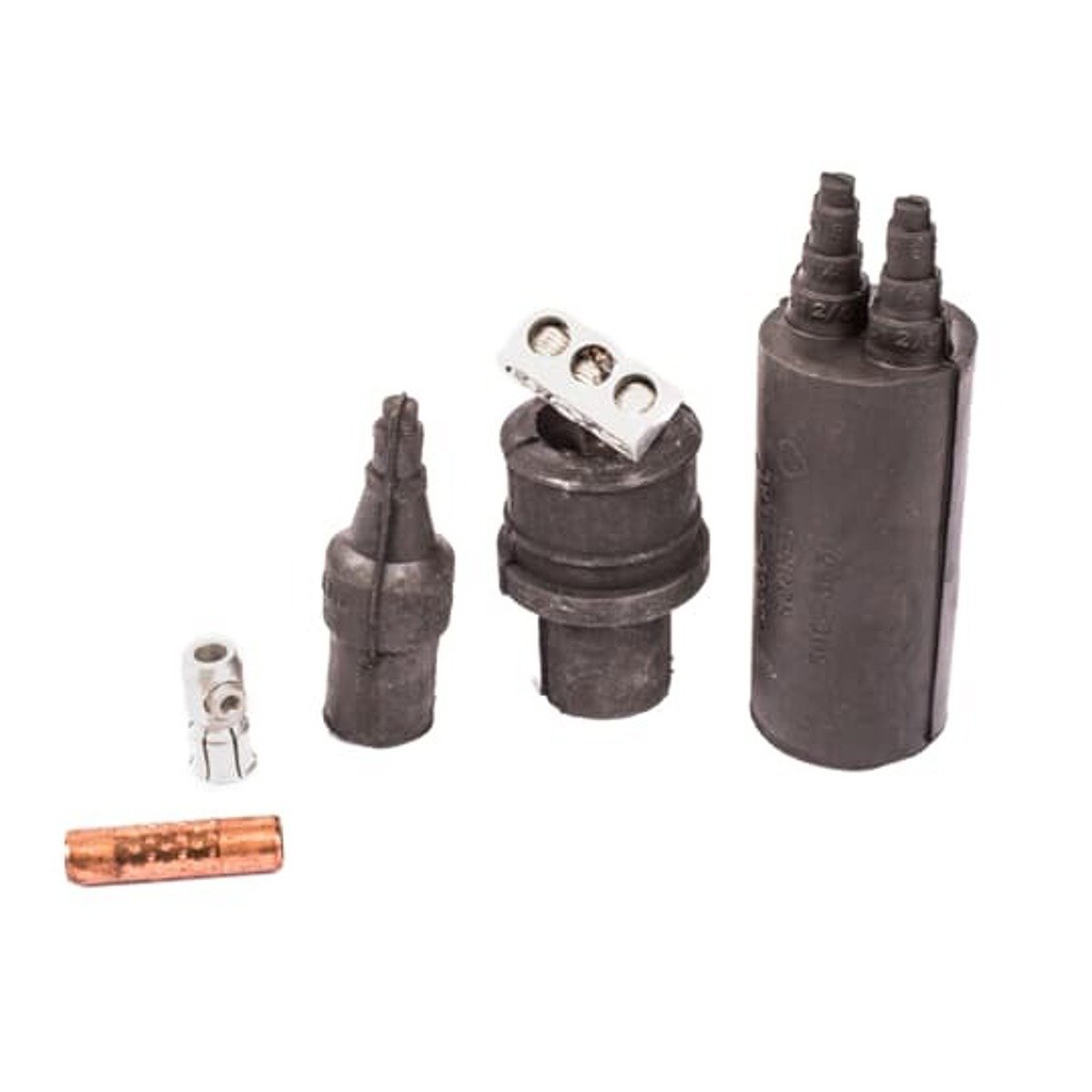

The HOMAC DYU-M is a Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kit. This non-fused kit is designed for conductor range main from fourteen to two American Wire Gauge, with the tap ranging from twelve to four American Wire Gauge. It is suitable for heavy-duty applications and rated for six hundred volts at a maximum of thirty amps.

• Includes EPDM Flood-Seal housing for watertight connections.
• Rated for use in harsh environments.
• Easy installation with a one-eighth inch hex wrench.

Product Highlights

The DYU-M kit connects conductors while ensuring a waterproof seal. It features a breakaway design that allows separation under tension, preventing wire damage. This kit is ideal for outdoor lighting and other demanding applications.

Product Information

Standard Information

• Catalog Number: DYU-M
• Manufacturer: ABB - Installation Products

Technical Specifications

• Voltage Rating: 600V
• Amperage Rating: 30
• Conductor Range: Main #14 to #2 AWG, Tap #12 to #4 AWG
• Connection: Mechanical
• Insulation: Yes
• Material: Aluminum and Copper, EPDM Rubber Housing
• Number of Conductors: 3
• Environmental Conditions: Watertight
