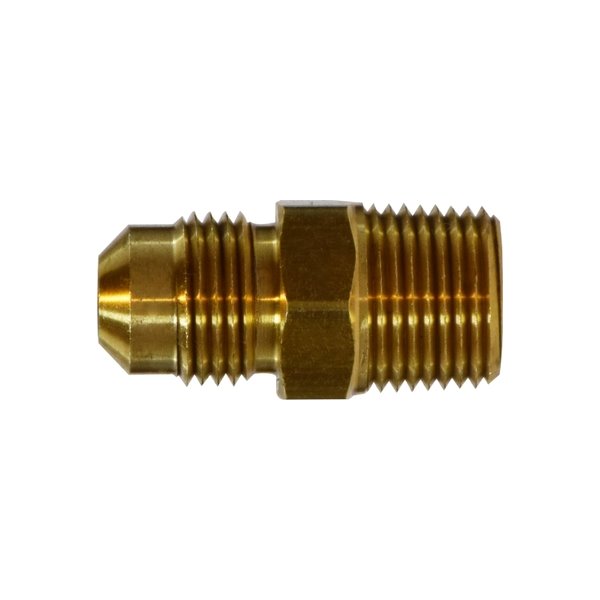

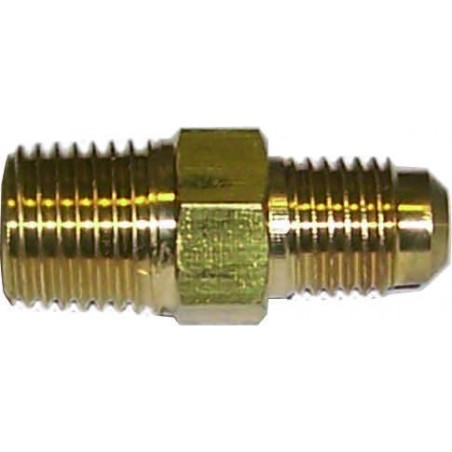

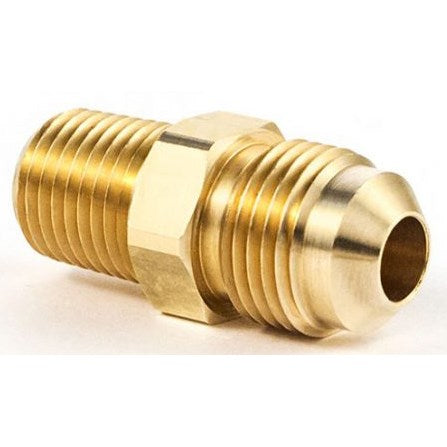

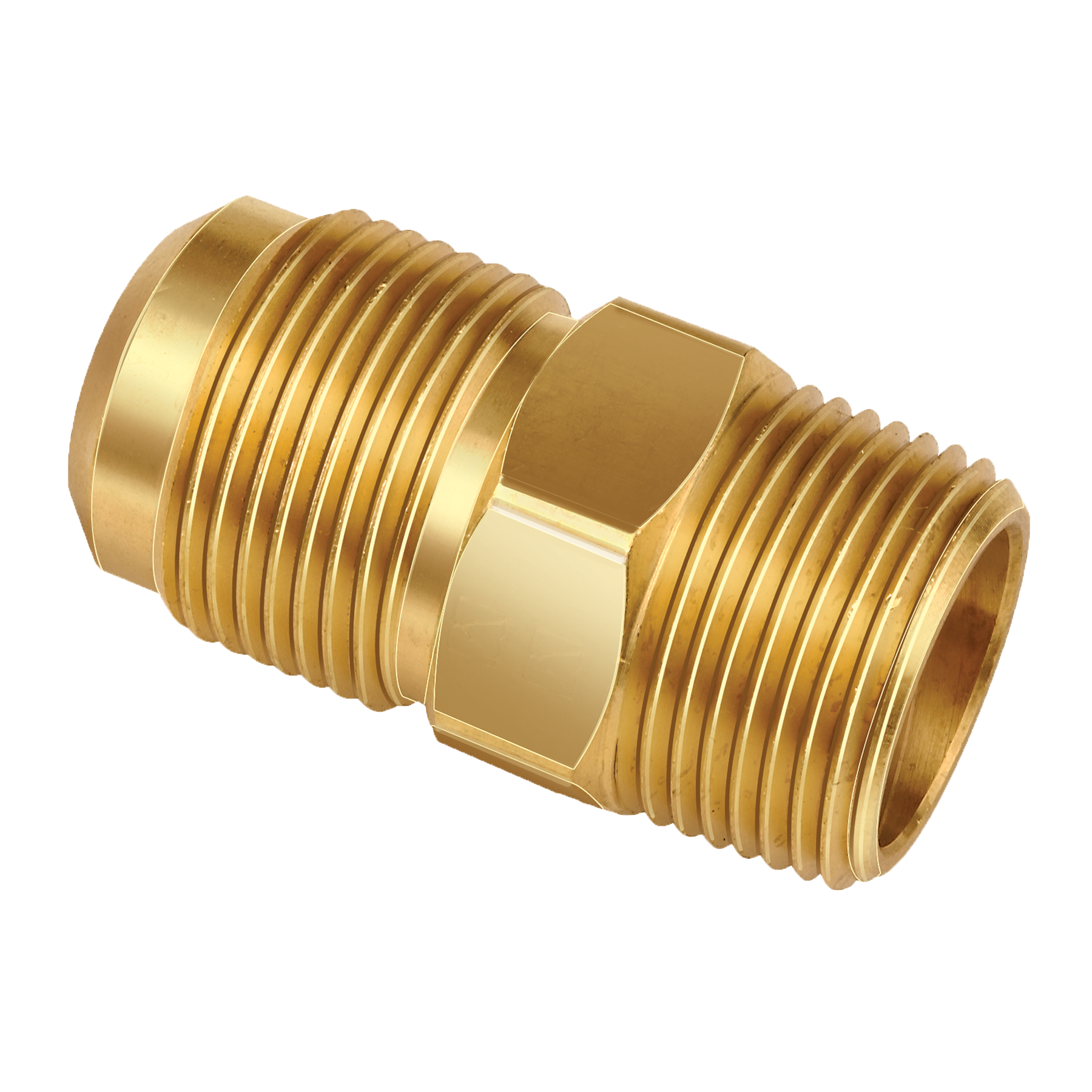

Holyoke Fittings U1-4D 1/4 x 1/2 Flare x MPT Connector Brass

Product Description

The Holyoke Fittings U1-4D is a brass connector suitable for various applications like hydraulic and pneumatic systems. This fitting is built from solid brass and works well with copper, brass, aluminum, and steel hydraulic tubing. It can manage vacuum pressures up to five thousand psi based on size, materials, and conditions.

• Solid brass construction
• Designed for hydraulic and pneumatic uses
• Compatible with multiple tubing materials

Product Highlights

This connector features long dryseal pipe threads to reduce leakage. It allows enough clearance for tightening flare nuts and is designed for make and break functionality, providing good vibration resistance. The fitting is economical and straightforward to assemble.

Product Information

Standard Information

• Brand: Holyoke Fittings
• MPN: U1-4D

Technical Specifications

• Connection Size 1: 1/4 in
• Connection Size 2: 1/2 in
• Connection Type: Male Flared|MNPT
• Fitting Type: Adapter
• Material: Brass
• Pressure Rating: 1400 psi
• Temperature Rating: -65 to 250 deg F
