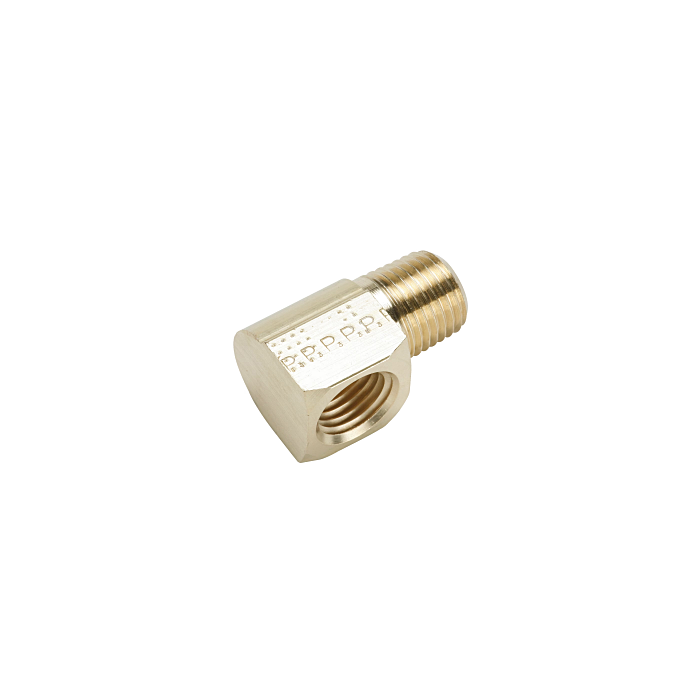

Holyoke Fittings 107FRG-4 Brass Street 90 Elbow 1/4 Inch

Product Description

The HOLYOKE FITTINGS 107FRG-4 is a 1/4-inch brass street 90-degree elbow designed to change flow direction in compressed air, gas, and fluid piping systems. A street elbow has one male end and one female end, allowing it to thread directly into a fitting or valve without requiring a nipple between connections. This reduces overall assembly length and the number of fittings in tight spaces. Plumbers, pipefitters, and HVAC technicians commonly install this type of fitting during new construction and service work on small-diameter pipe runs.

This 1/4-inch street elbow is suited for residential and light commercial applications where a 90-degree directional change is needed in a small-bore line. Typical uses include branch connections on compressed air systems, gas appliance hookups, water supply lines, and HVAC refrigeration line accessories where brass fittings are specified. Its compact street configuration makes it especially useful in panel installations and equipment rough-ins where clearance is limited.

Key Features

• Street elbow design with one male and one female threaded end for direct fitting-to-fitting connection
• 90-degree turn in a single fitting reduces assembly length in confined spaces
• 1/4-inch size suits small-bore piping common in HVAC, gas, and compressed air applications
• Brass construction offers corrosion resistance for use in gas, air, and water service

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/4-inch threaded pipe systems in plumbing, HVAC, and gas distribution applications.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or HVAC technician in accordance with applicable local codes, IPC, and IFGC requirements. Shut off and depressurize the line before disassembling existing fittings or installing new ones. Use appropriate thread sealant or PTFE tape on male threads per the applicable code and fluid service. Do not overtighten brass fittings, as brass threads can be damaged by excessive torque.

Technical Specifications

• Fitting Type: 90 Street Elbow
• Size: 1/4 inch
• Material: Brass
• UPC: 74556506035

Standard Information

• Brand: HOLYOKE FITTINGS
• Manufacturer Part Number: 107FRG-4
