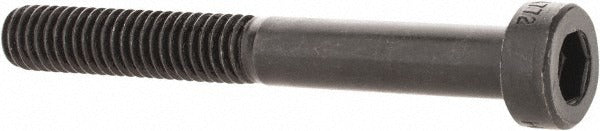

Holo-krome 69614 Low Socket Cap Screw M16x2 X 70mm

Product Description

The HOLO-KROME 69614 is a metric low socket cap screw designed for applications where standard socket cap head height clearance is not available. Manufactured from alloy steel to material grade 10.9, this screw delivers high tensile strength in a reduced-profile head configuration. The black oxide finish provides moderate corrosion resistance and a uniform appearance. The hex socket drive accepts a 12 mm hex key. Thread size is M16x2 with a coarse thread spacing, and the shank runs 70 mm in length measured under the head. Head height is 10 mm. This fastener is installed by millwrights, machinists, maintenance mechanics, and field service technicians working with metric-dimensioned equipment.

The 69614 is suited for machinery assembly, equipment mounting, and structural fastening tasks where low-clearance head geometry is required. Partially threaded construction allows proper clamping load in through-bolt and counterbored joint applications. The 10.9 material grade makes it appropriate for high-load mechanical connections in industrial, manufacturing, and heavy equipment environments where a standard-height cap screw head would interfere with adjacent components or mating surfaces.

Key Features

• Low socket cap head profile at 10 mm head height for tight-clearance installations
• Alloy steel construction to material grade 10.9 for high tensile strength
• Black oxide finish for corrosion resistance and clean appearance
• M16x2 coarse thread with 6G thread fit class for consistent metric engagement
• 12 mm hex socket drive compatible with standard metric hex keys and L-wrenches
• Conforms to ANSI B1.13M and ISO 4762 fastener standards

Compatibility

Designed as an OEM-style replacement or service fastener for metric-dimensioned machinery and equipment requiring a low socket cap screw to ANSI B1.13M and ISO 4762 specifications.

Installation Notes

Installation is performed by qualified mechanics or millwrights using a calibrated torque wrench and a 12 mm hex key or socket bit. De-energize all equipment and relieve any stored mechanical pressure before disassembling or reassembling fastened joints. Do not mix metric and unified inch fasteners in the same joint. Follow applicable machinery OEM torque specifications and relevant industry standards when determining final torque values.
