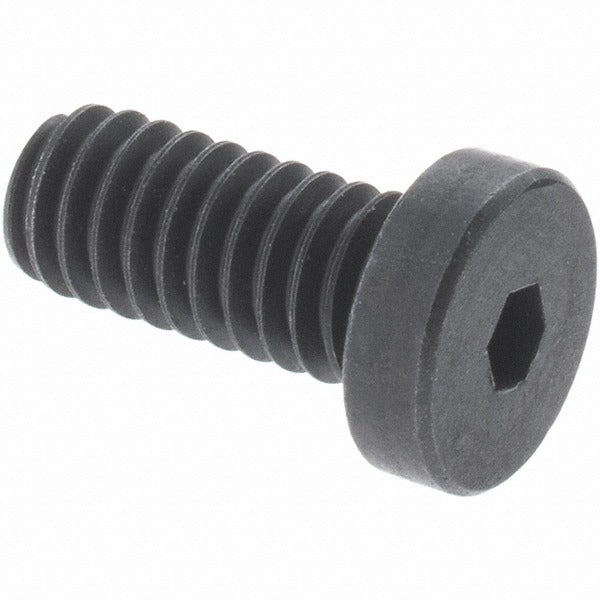

Holo-krome 69570 Low Socket Cap Screw M12x1.75 45mm

Product Description

The HOLO-KROME 69570 is a metric low socket cap screw designed for applications requiring a reduced-profile head with the clamping strength of a high-grade alloy fastener. Built to ANSI B1.13M, it carries a material grade of 10.9, making it suitable for high-stress mechanical assemblies where head clearance is limited. The M12x1.75 thread is fully threaded along its 45 mm length, measured under the head, and driven with a 10 mm hex key socket. A black oxide finish provides mild corrosion resistance and reduces light reflection in service environments. Licensed trades and industrial maintenance technicians use this fastener in machinery, tooling fixtures, and structural steel assemblies.

This fastener is suited for metric-standard mechanical and structural applications in both industrial and commercial settings. The low socket cap head profile makes it the preferred choice when standard socket cap heads would interfere with mating components, covers, or adjacent hardware. Typical install scenarios include machine tool assemblies, jig and fixture fabrication, hydraulic manifold mounting, and heavy equipment maintenance. The fully threaded shank provides consistent thread engagement across the full grip length.

Key Features

• Low socket cap head profile reduces clearance requirements versus standard socket cap screws
• M12x1.75 fully threaded shank with length measured under the head at 45 mm
• 10 mm hex key drive for positive torque application
• Alloy steel at material grade 10.9 for high tensile and proof load capacity
• Black oxide finish for mild corrosion resistance and reduced surface reflectivity
• Conforms to ANSI B1.13M metric fastener standard

Compatibility

Designed as a metric-standard low socket cap screw for use in any M12x1.75 tapped hole application conforming to ANSI B1.13M specifications.

Installation Notes

Installation should be performed by a qualified mechanic or maintenance technician familiar with metric fastener torque requirements for grade 10.9 alloy steel hardware. Use a calibrated torque wrench with a 10 mm hex bit to achieve proper clamp load — consult the equipment manufacturer or a fastener torque table for the appropriate value based on application and lubrication condition. Ensure the mating tapped hole is clean and free of debris before installation. Never reuse fasteners that show signs of thread damage, deformation, or corrosion.
