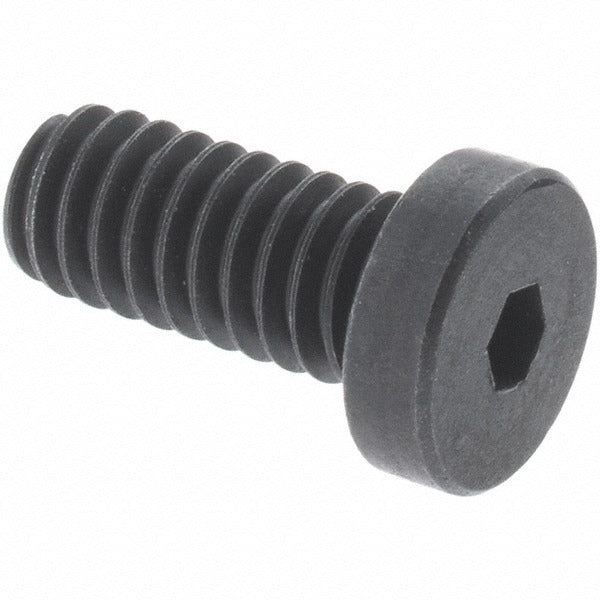

Holo-krome 69350 Low Socket Cap Screw M5x0.8 8.00 Mm

Product Description

The HOLO-KROME 69350 is a metric low socket cap screw designed for applications where a reduced head profile is required without sacrificing clamping strength. It features an M5x0.8 coarse thread, a head height of 3.50 mm, and a 4.00 mm hex socket drive. Manufactured from alloy steel at a material grade of 10.9, it delivers high tensile strength suitable for demanding mechanical assemblies. The black oxide finish provides moderate corrosion resistance and a clean, non-reflective appearance. This fastener is fully threaded along its 8.00 mm length under head, making it well-suited for through-hole and close-tolerance threaded applications. Installed by machinists, maintenance technicians, and mechanical assemblers.

The 69350 is used in industrial, manufacturing, and mechanical assembly environments where a standard socket cap head would interfere with mating surfaces or clearance envelopes. The low-profile head design is common in fixture plates, machine guards, jigs, panel assemblies, and precision equipment housings. Thread fit class 6G ensures consistent engagement with standard metric tapped holes. This screw conforms to ANSI B1.13M and ISO 4762, making it appropriate for both domestic and internationally specified assemblies requiring metric fasteners at grade 10.9 strength.

Key Features

• Low socket cap head profile reduces clearance requirements compared to standard socket cap screws
• Alloy steel construction at material grade 10.9 for high tensile and proof load strength
• M5x0.8 coarse thread with 6G thread fit class for consistent metric hole engagement
• 4.00 mm hex socket drive compatible with standard metric hex keys and driver bits
• Black oxide finish for moderate corrosion resistance and low-glare appearance
• Conforms to ANSI B1.13M and ISO 4762 standards

Compatibility

Designed as an OEM-style metric fastener replacement for M5x0.8 coarse-thread tapped holes in industrial and mechanical assemblies requiring a low-profile socket cap head per ANSI B1.13M and ISO 4762.

Installation Notes

Installation requires a 4.00 mm hex key or socket driver. Ensure the mating tapped hole is clean and free of debris before installation. Do not exceed the torque rating appropriate for grade 10.9 M5 fasteners as specified by the assembly engineer or equipment manufacturer. Black oxide finish offers limited corrosion protection; apply a thread lubricant or supplemental coating if the application involves exposure to moisture or corrosive environments.
