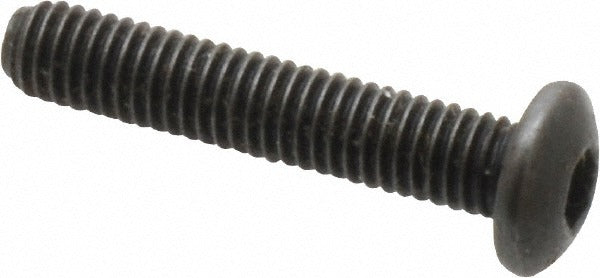

Holo-krome 65014 Button Socket Cap Screw 10-32 1 in

Product Description

The HOLO-KROME 65014 is a 10-32 button socket cap screw designed for applications requiring a low-profile head and secure hex socket drive engagement. Manufactured from alloy steel with a black oxide finish, this fastener delivers corrosion resistance alongside high mechanical strength. It measures 1 inch in length under head and is fully threaded to a 3A thread fit class per ANSI/ASME B18.3 and ASTM F835. The 1/8-inch hex socket drive is compatible with standard hex keys and socket drivers. With a hardness rating of 38 HRC, this screw is suited for demanding mechanical assemblies where strength and a compact head profile are both required.

This fastener is used across industrial, mechanical, and equipment assembly applications where a flush or near-flush head profile is preferred over a standard cap screw head. The UNF thread standard and right-hand thread direction make it a straightforward fit for existing tapped holes in machinery, fixtures, tooling, and structural components. Licensed tradespeople and assembly technicians working with precision equipment or fabricated assemblies will encounter this screw type frequently. It is sold in multiples of 50 to suit production and service environments.

Key Features

• Button head profile with 0.361-inch head diameter and 0.101-inch head height for low-clearance applications
• 1/8-inch hex socket drive for use with standard hex keys or socket drivers
• Alloy steel construction rated to 38 HRC hardness
• Black oxide finish provides mild corrosion resistance in dry or lightly exposed environments
• Fully threaded 10-32 UNF right-hand thread, 3A fit class
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as an OEM-style replacement or production fastener for any application requiring a 10-32 UNF fully threaded button socket cap screw with a 1-inch length under head.

Installation Notes

Installation requires a 1/8-inch hex key or hex socket driver; verify proper tool fit before applying torque to avoid rounding the drive socket. Power down or de-energize any equipment before accessing fastener locations on live assemblies. Use a thread gauge or test fit in the tapped hole before final installation to confirm 3A thread class compatibility. This screw is intended for installation by qualified mechanical tradespeople or assembly technicians following applicable industry standards.
