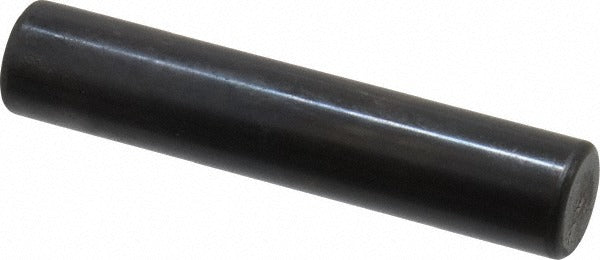

Holo-krome 02119 Standard Dowel Pin 12mm X 60mm Grade 8

Product Description

The HOLO-KROME 02119 is a standard dowel pin manufactured from Grade 8 alloy steel with a black luster finish. It measures 12 millimeters in diameter and 60 millimeters in overall length, conforming to ASME B18.8.5M and DIN 6325 standards. One end is beveled and the other is rounded, which eases insertion into blind and through holes during assembly. This pin is used to align, locate, or retain mating components in mechanical assemblies. Installation is performed by machinists, millwrights, and maintenance technicians working on fixtures, jigs, dies, and precision machinery.

Standard dowel pins in this size range are common in industrial machine assembly, tooling fabrication, and fixture alignment applications. The 12 mm diameter and 60 mm length suit medium-duty alignment tasks in both production and maintenance environments. The alloy steel construction and Grade 8 material rating make this pin appropriate for applications requiring tight tolerances and reliable shear strength. The black luster finish provides a degree of surface protection suitable for controlled shop environments.

Key Features

• Conforms to ASME B18.8.5M and DIN 6325 standards for dimensional consistency
• Grade 8 alloy steel construction for high shear strength in precision applications
• Black luster finish for surface protection in controlled environments
• One beveled end and one rounded end for guided insertion into mating holes
• Diameter tolerance of -0.0001 to 0.0001 inches for tight-fit alignment work

Compatibility

Designed as an OEM-style replacement or direct-use dowel pin for machinery, fixtures, jigs, and tooling applications requiring a 12 mm diameter, 60 mm length pin meeting ASME B18.8.5M and DIN 6325 specifications.

Installation Notes

Installation is typically performed by a machinist or millwright using a press or mallet with a proper pin driver. Ensure the receiving hole is reamed to the correct tolerance and is free of burrs, chips, and debris before driving the pin. De-energize and lock out all equipment before installing or removing dowel pins in live machinery per applicable OSHA lockout/tagout procedures. Do not exceed the designed interference fit; oversized forcing can damage the bore or the pin.
