Holdrite V-2 Pipe Support Bracket

Product Description

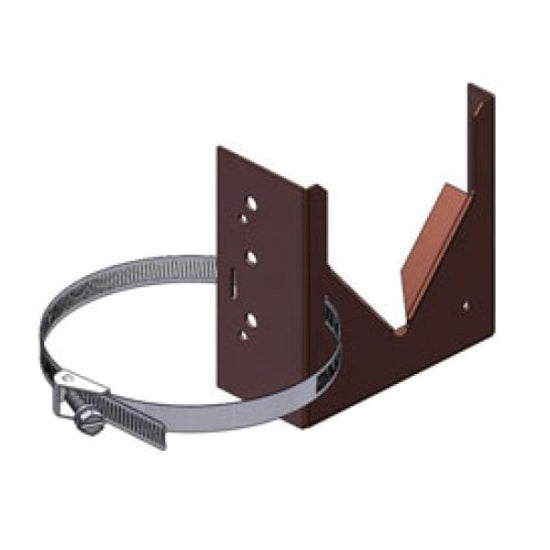

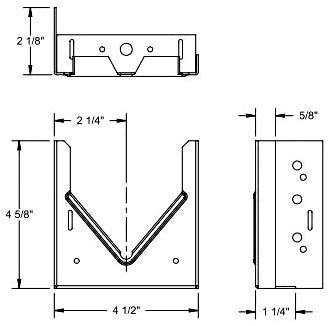

The HOLDRITE V-2 pipe support bracket accommodates pipe sizes from 1/2 to 3 Inch CTS. It features a 5 inch self-locking stainless steel band and an isolating felt pad. Constructed from 16 gauge copper bonded cold rolled steel, it measures 4-1/2 inches in length and width. It is suitable for pre-fab, pipe on pipe support, and horizontal applications with a load rating of 250 pounds.

• Easy Pre-Fabrication at the Shop or on the Job Site
• Mounts to Waste/Vent Pipe or Building Structure Prior to Studs Being Erected
• Made in USA

Product Highlights

The HOLDRITE V-2 bracket is ideal for pipe support in pre-fabrication and horizontal applications.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: V-2

Technical Specifications

• Applicable Standard: IAPMO, UPC, IPC
• COMMODITY CODE DESCRIPTION LEVEL 3: Pipe and Tubing Accessories
• Inclusions/Features: 5 Inch Self-Locking Stainless Steel Band, Isolating Felt Pad
• Material: 16 Gauge Copper Bonded Cold Rolled Steel
• Pipe Size: 1/2 to 3 Inch CTS
• Product Sub-Type: Pipe Bracket
• Product Type: Pipes/Valves/Fittings
• Brand: HOLDRITE
• MPN: V-2
• Finish/Color: Copper-Bonded
